Fiber Optic Termination Box, 16 Ports, SC Simplex Type, Plastic Housing, 260x320x90mm
Categories:
Product Highlights:
-
Durable FTTH termination box designed for outdoor and indoor use with UV and rainfall resistant high-impact plastic.
-
Supports up to 16 SC simplex adapters or 24 LC duplex cores, with flexible inner splice tray for PLC splitter integration.
-
FiberMania OEM/ODM services available, including custom labeling, pre-installed pigtails, and free design and sample support.
Table of Contents
Description

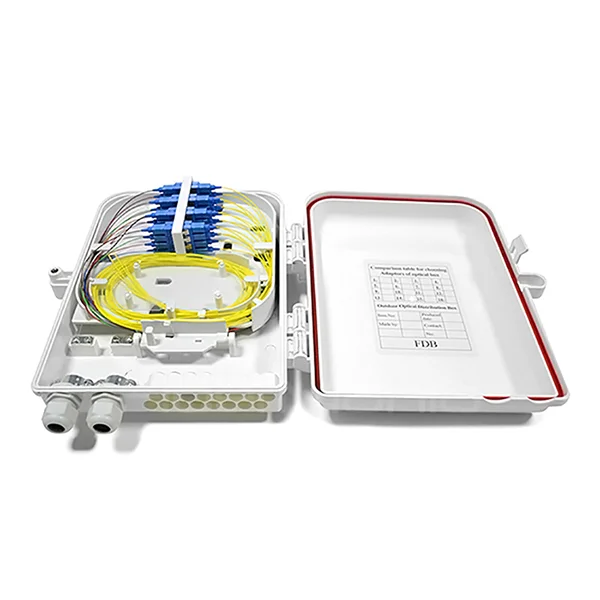

The FiberMania FTTH 16 Cores Termination Box is a versatile solution for fiber termination, distribution, and splicing in FTTH access networks, telecommunication networks, CATV networks, and data communication systems. Constructed from high-impact plastic, it provides excellent resistance against UV rays and rainfall, making it ideal for outdoor deployment.
This box can be wall-mounted or pole-mounted for flexible installation. It accommodates up to 16 SC simplex adapters and up to 24 LC duplex adapters, depending on your network requirements. The inner splice tray is designed to hold 1:16 PLC splitters and supports both heat-shrinkable and mechanical splicing. Cable entries use flexible rubber grommets and waterproof joints, suitable for 2.0mm or 3.0mm pigtail or drop cables.
Adapters are mounted on the upper layer and secured with small screws for stable installation, ensuring reliable fiber management and easy maintenance.
Specification
| Port / Core Capacity | 16 SC Simplex |
|---|---|
| Adapter Type | SC Simplex |
| Housing Material | Flame-resistant Plastic |
| Fiber Type | Single Mode / Multimode |
| Intended Use | Indoor |
| Dimensions (L×W×H mm) | 260×320×90 |
| Features | Compact, reliable fiber management, OEM optional |
| Applications | Medium-scale FTTH, LAN, telecom |
| Customization | OEM / ODM options |
| Standards | Flame-resistant, RoHS, SC / LC compatible |
| Compatibility | SC simplex / LC duplex, patch cords |
| Installation / Maintenance | Wall / pole mount |
| Protection | Dust, mechanical stress |
Features
-
High-impact plastic construction with anti-UV and rainfall resistance
-
Wall or pole mountable
-
Supports 16 SC simplex adapters or 24 LC duplex adapters
-
Integrated inner splice tray supports 1:8 or 1:16 PLC splitters
-
2 inlet ports, 16 outlet ports for FTTH drops
-
Flexible and waterproof cable entry system for 2.0mm or 3.0mm cables
-
Easy installation and maintenance
Applications
-
FTTH access networks
-
Telecommunication networks
-
CATV networks
-
Data communication networks
-
Local area networks (LAN)
Additional
-
Maximum Fiber Capacity: 16 SC simplex or 24 LC duplex cores
-
Adapter Types: SC Simplex / LC Duplex
-
Inlet Ports: 2
-
Outlet Ports: 16
-
Mounting: Wall or pole
-
Material: High-impact plastic, UV and rainfall resistant
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
