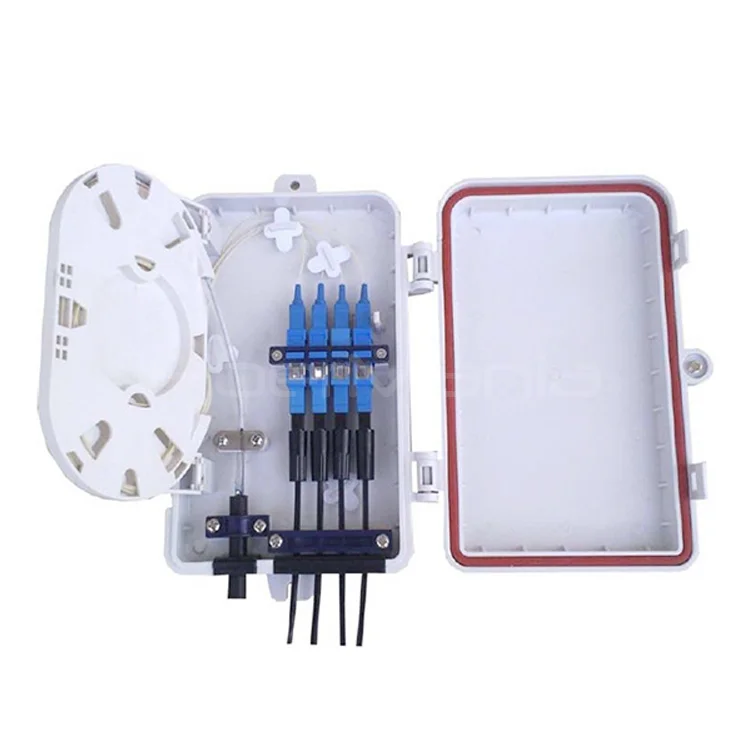

Fiber Optic Termination Box, 4 Ports SC Simplex Type, For Outdoor Use, 210x140x40mm
Categories:
Product Highlights:
-
Durable outdoor housing with anti-UV and rain-resistant design.
-
Supports up to 4 FTTH drops with SC simplex connectors.
-
Removable tray for easy fiber management and splicing.
-
Wall or pole mountable for flexible installation in residential or commercial networks.
Table of Contents
Description
The FiberMania 4-Port Fiber Optic Termination Box is designed for outdoor FTTH deployment, suitable for residential buildings, villas, and small business networks. Constructed from high-impact plastic, it offers excellent UV resistance and weather protection.
This termination box supports up to 4 fiber drops with SC simplex connectors. Its removable splicing tray allows for neat and efficient fiber management, including pigtail splicing and termination. With one inlet and four outlet ports, it provides a reliable and professional solution for fiber distribution in FTTH, CATV, telecom, and LAN applications.
Specification
| Number of Ports | 4 Output Ports |
|---|---|
| Connector Type Compatibility | SC Simplex |
| Fiber Drops Supported | Up to 4 |
| Housing Material | High-impact Plastic (Anti-UV, Rainproof) |
| Mounting | Wall or Pole Mountable |
| Splicing Tray | Removable |
| Inlet Ports | 1 |
| Outlet Ports | 4 |
| Dimensions | 210 x 140 x 40 mm |
| Operating Environment | Outdoor FTTH, Telecom, CATV, LAN |
| Color | Typically Gray/Black (customizable) |
| Standards | Industry-standard optical interface, weatherproof tested |
| OEM/ODM | Custom port count, colors, logos, packaging |
| Installation | Basic tools required; tray removable for fiber management |
| Applications | Residential FTTH, villas, CATV, telecom, LAN networks |
Features
-
High-impact, anti-UV, rainproof plastic housing
-
Removable splicing tray for flexible fiber management
-
Supports up to 4 FTTH drops
-
1 inlet port, 4 outlet ports
-
SC simplex connector compatible
-
Wall and pole mountable
-
Industry-standard interface for easy integration
Applications
-
End termination for residential buildings and villas
-
FTTH Access Networks
-
Telecommunication Networks
-
CATV Networks
-
Local Area Networks (LANs)
-
Pigtail splicing and optical connection installations
Frequently Asked Questions (FAQ)
Q1: Can this box be used outdoors?
Yes, the anti-UV and rain-resistant housing is designed for outdoor deployment.
Q2: How many fiber drops does it support?
Supports up to 4 FTTH drops.
Q3: What connector types are compatible?
SC simplex connectors are supported.
Q4: Can it be mounted on poles?
Yes, it is designed for both wall and pole mounting.
Q5: Is customization available for bulk orders?
Yes, FiberMania provides OEM/ODM customization for color, logo, port count, and packaging.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
