FC Male-ST Female Single Mode Simplex Fiber Optic Adapter
Categories:
Product Highlights:
-

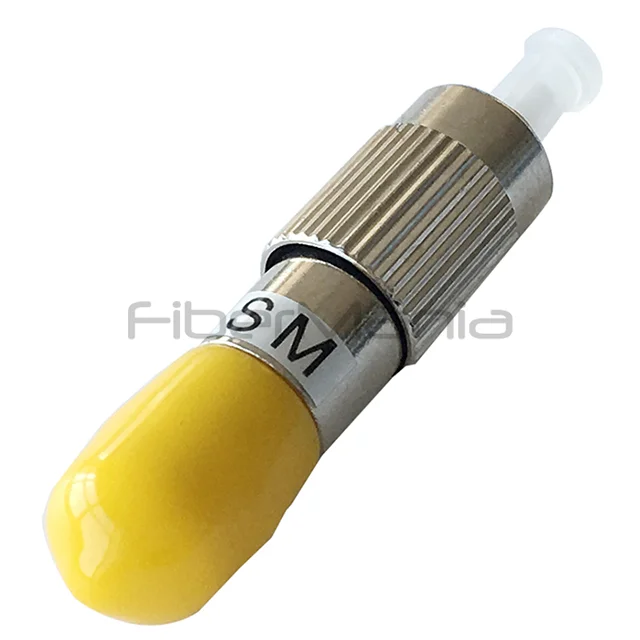

FC Male to ST Female single mode simplex fiber optic adapter
-
High-precision ceramic sleeve ensures accurate fiber alignment and low insertion loss
-
Durable nickel brass housing guarantees long-term reliability
-
FiberMania provides OEM/ODM customization for housing, packaging, and performance to meet client-specific requirements
Table of Contents
Description
The FC Male to ST Female single mode simplex fiber optic adapter is designed to provide reliable and precise connectivity between FC and ST single mode connectors. It ensures minimal insertion loss and stable optical performance, making it ideal for high-speed, long-distance networks. The adapter is suitable for patch panels, ODFs, and hybrid network setups where FC and ST connectors need to interface seamlessly.
Equipped with a high-precision ceramic alignment sleeve, this adapter maintains accurate fiber alignment during repeated mating cycles. The nickel brass housing offers mechanical strength and durability, ensuring long-term reliability in demanding environments such as data centers and telecommunication networks. This adapter supports single mode 9/125μm fibers, delivering low attenuation and minimal back reflection for critical optical applications.
Specification
| Product Type | Fiber Optic Adapter |
|---|---|
| Adapter Type | FC Male – ST Female |
| Fiber Mode | Multimode (OM1) |
| Configuration | Simplex |
| Alignment Sleeve | High-precision ceramic sleeve |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Anti-Pulling Force | Tested (per IEC/Telcordia GR-326) |
| Housing Material | Metal |
| Adapter Color | Standard Single Mode (commonly Blue) |
| Compact Design | Yes, suitable for high-density installations |
| Compliance | RoHS compliant |
| Standards | IEC, Telcordia GR-326, JIS |
| Operating Environment | Indoor, controlled environments |
| Connector Compatibility | Standard FC and LC single mode fiber connectors |
Features
-
FC Male to ST Female single mode simplex configuration
-
High-precision ceramic alignment sleeve for low insertion loss
-
Durable nickel brass housing
-
Compliant with RoHS
-
100% inspected prior to shipment
-
Insertion loss: ≤0.2 dB
-
Anti-pulling force: 200–600G
-
Rated for 1000 or more mating cycles
Applications
-
Data centers
-
Telecommunication networks
-
Premise installations
-
LAN and WAN connections
-
FTTX deployments
-
Broadband networks
Q&A
Q: Can this adapter be used in hybrid patch panels?
A: Yes, it connects FC male and ST female single mode connectors in hybrid setups.
Q: How many mating cycles can it handle?
A: Rated for 1000 or more mating cycles with minimal insertion loss.
Q: Does FiberMania provide customization options?
A: Yes, OEM/ODM services include custom housing, labeling, and performance adjustments.
Q: What fiber type does it support?
A: Single mode 9/125μm fibers.
Q: Can it be used outdoors?
A: Standard model is for indoor use; custom ruggedized versions can be provided upon request.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
