FC Male-ST Female OM1 Multimode Simplex Fiber Optic Adapter
Categories:
Product Highlights:
-
FC Male to ST Female OM1 Multimode Simplex Fiber Optic Adapter
-
High-precision ceramic sleeve ensures low insertion loss
-
Durable nickel-plated brass housing
-
Ideal for hybrid fiber connections in data centers, LAN/WAN, and FTTx networks
-
FiberMania provides OEM/ODM customization for unique network requirements
Table of Contents
Description

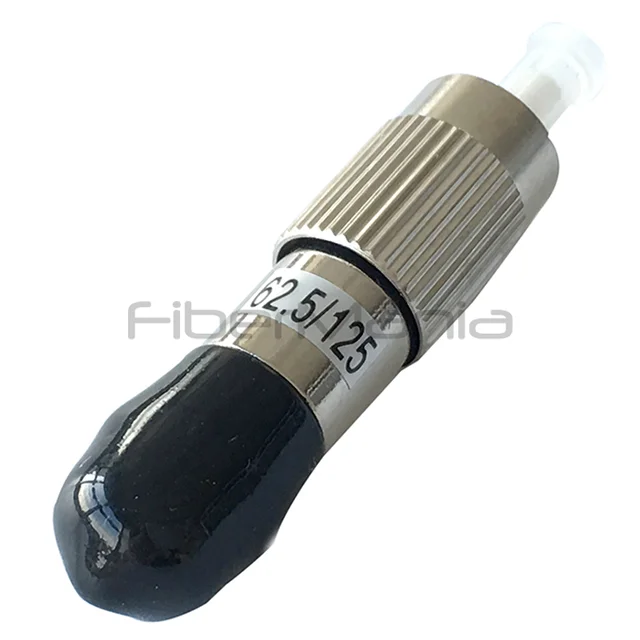

The FC Male-ST Female OM1 Multimode Simplex Fiber Optic Adapter is designed for high-precision fiber optic connections, ensuring efficient signal transmission in multimode networks. This adapter features a male FC connector on one end and a female ST connector on the other, making it ideal for hybrid connections between different types of fiber equipment.
Constructed with a high-precision ceramic sleeve, it maintains low insertion loss and high durability for long-term network reliability. The nickel-plated brass housing provides excellent mechanical strength and corrosion resistance, while compliance with RoHS standards ensures environmental safety. This adapter is widely used in data centers, telecommunication networks, LAN/WAN systems, and FTTx applications.
Specification
| Adapter Type | FC Male-ST Female |
|---|---|
| Fiber Mode | Multimode |
| Configuration | Simplex |
| Compliance | IEC, Telcordia GR-326, JIS standards; RoHS-compliant materials |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +120°C |
| Available Options | Flanged and flangeless; multiple housing colors |
| Applications | Data centers, telecommunication networks, premise installations, LAN/WAN connections, FTTX deployments, broadband networks |
| Customization | OEM/ODM: housing colors, labeling, packaging, performance parameters per customer requirements |
| Compatibility | Standard SC and ST multimode connectors; duplex patch panels; multimode fiber networks |
| Installation | Insert into panel/distribution frame; clean connectors before mating; avoid excessive stress; periodically check insertion loss and replace if needed |
| Mating Cycles | Over 1000 cycles with minimal insertion loss |
| High-Density Panel Compatibility | Yes, duplex design optimized for space-saving and efficiency |
| Supported Fiber | Multimode 50/125μm or 62.5/125μm |
Features
-
Hybrid FC male to ST female connection
-
High-precision ceramic alignment sleeve
-
Nickel-plated brass housing for durability
-
Low insertion loss, maximum 0.2dB
-
High reliability and stability
-
RoHS compliant
-
100% inspected prior to shipment
Applications
-
Data center connections
-
Telecommunication networks
-
LAN and WAN systems
-
FTTx networks
-
Premise installations
-
Broadband network infrastructure
FAQ
Q: What type of fiber does this adapter support?
A: OM1 multimode fiber with standard 62.5/125 µm or 50/125 µm configuration.
Q: Is this adapter suitable for hybrid connections?
A: Yes, it connects FC male to ST female interfaces.
Q: How durable is the adapter?
A: Supports up to 1,000 mating cycles with low insertion loss.
Q: Can FiberMania provide custom colors or configurations?
A: Yes, we offer OEM/ODM customization for branding, colors, and connector types.
Q: What is the maximum insertion loss?
A: Maximum 0.2dB.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
