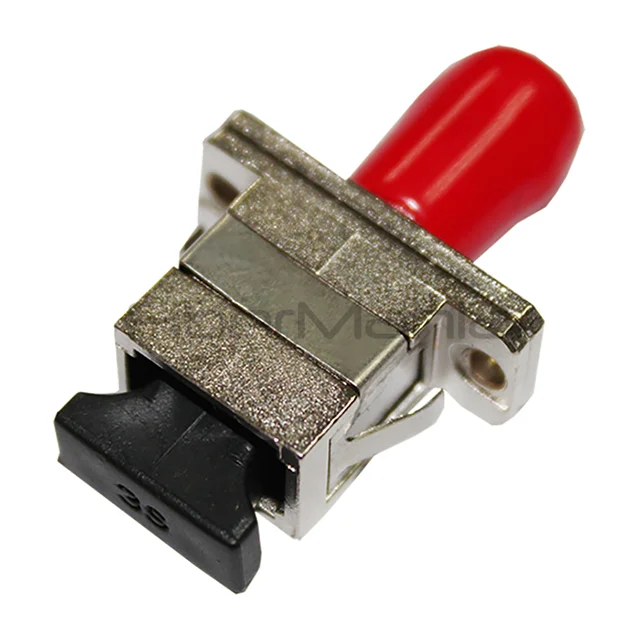

SC-ST Multimode Simplex Metal Fiber Optic Adapter
Categories:
Product Highlights:
-
SC-ST multimode simplex metal fiber optic adapter with ceramic alignment sleeve
-
Robust nickel brass housing ensures long-term durability and stable signal
-
Low insertion loss and reliable performance in optical networks
-
FiberMania offers OEM/ODM services for customization, labeling, and packaging
Table of Contents
Description
The SC-ST multimode simplex metal fiber optic adapter is engineered for precise and reliable connections between SC and ST multimode connectors. Its robust nickel brass housing combined with a high-precision ceramic alignment sleeve ensures minimal insertion loss and excellent signal stability, making it ideal for demanding optical networks.
This adapter is suitable for multimode fiber systems used in data centers, telecommunication networks, and LAN/WAN infrastructures. Its metal construction offers strong protection against mechanical stress, ensuring long-term durability and consistent optical performance.
Specification
| Adapter Type | SC-ST |
|---|---|
| Fiber Mode | Multimode |
| Configuration | Simplex |
| Alignment Sleeve | Ceramic (typical for metal ST‑SC multimode adapters) |
| Housing Material | Metal (nickel brass / metal housing typical) |
| Adapter Color | Not specified |
| Anti-Pulling Force | Tested (per IEC/Telcordia GR-326) |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Compact Design | Yes, suitable for high-density installations |
| Compliance | RoHS compliant |
| Standards | IEC, Telcordia GR-326, JIS |
| Operating Environment | Indoor, controlled environments |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +120°C |
| Connector Compatibility | Standard SC and ST single mode fiber connectors |
Features
-
SC-ST multimode simplex configuration
-
High-precision ceramic alignment sleeve
-
Durable nickel brass housing
-
RoHS-compliant materials
-
100% inspected prior to shipment
-
Maximum insertion loss: 0.2dB
-
Supports over 1000 mating cycles
Applications
-
Data centers
-
Telecommunication networks
-
Premise installations
-
LAN and WAN connections
-
FTTX deployments
-
Broadband networks
Q&A
Q: How many mating cycles can this adapter withstand?
A: Over 1000 cycles while maintaining low insertion loss.
Q: Is this suitable for standard multimode networks?
A: Yes, it is optimized for multimode fiber systems in data centers and LAN/WAN environments.
Q: Can FiberMania provide custom adapters?
A: Yes, OEM/ODM services are available for labeling, housing, and packaging.
Q: What is the maximum insertion loss?
A: 0.2dB maximum.
Q: Can it be installed in high-density panels?
A: Yes, the compact metal design allows flexible installation.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
