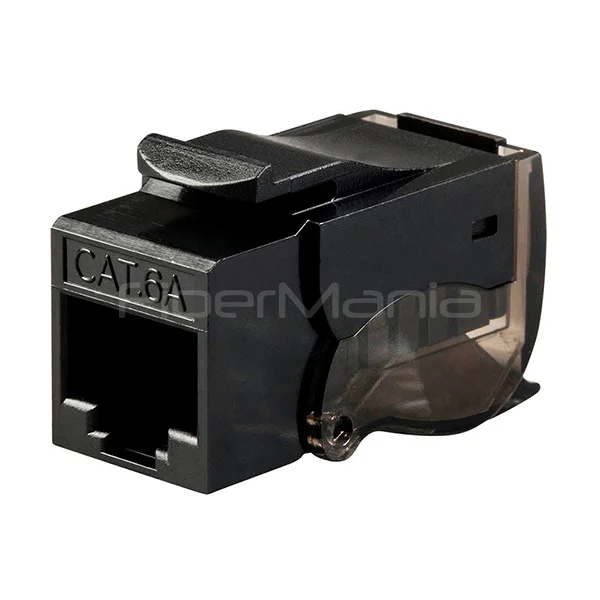

CAT.6A UTP Toolless Keystone Jack, 90 Degree Punch Down, Black
Categories:
Product Highlights:
-
CAT.6A UTP Toolless Keystone Jack with 90-degree punch-down design for easy, fast installation.
-
High-quality materials ensure durable, reliable network connectivity.
-
Supports 24–26AWG Ethernet cabling for CAT.6A high-speed networks.
Table of Contents
Description
FiberMania CAT.6A UTP Toolless Keystone Jack (90-Degree Punch Down, Black) is designed for high-speed Ethernet networks, offering CAT.6A performance up to 10Gbps. The 90-degree tool-less punch-down design enables fast, secure termination of 24–26AWG UTP cables without the need for specialized tools. Its durable housing, flame-retardant inner materials, and high-quality phosphor bronze contacts guarantee reliable and long-lasting connectivity. This keystone jack is suitable for high-density installations in wall plates, patch panels, and structured cabling systems.
Specification
| Connector Type | RJ45 Keystone Jack, female |
|---|---|
| Category | CAT.6A |
| Orientation | 90-degree tool-less punch down |
| Wire Size | 24–26AWG |
| Housing Material | PC UL94V-0 (flame-retardant) |
| Inner Material | Flame-retardant ABS UL94V-0 |
| PCB Material | FR-4, 1.6mm thick |
| Contact Material | Phosphor bronze pin T=0.35mm |
| IDC Contact Material | Phosphor bronze T=0.50mm, nickel-plated |
| Voltage Rating | 125V AC RMS |
| Current Rating | 1.5A |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥1, 000MΩ at 500V DC |
| Dielectric Strength | 750V AC RMS, 60Hz, 1 min |
| Storage Temp | -40~85°C |
| Operating Temp | 0~70°C |
| Standards Compliance | TIA/EIA 568-C.2, RoHS |
Features
-
Toolless 90-degree punch-down for quick installation
-
Supports CAT.6A and 10Gb Ethernet networks
-
Durable materials: PC UL94V-0 housing, flame-retardant ABS inner
-
PCB: FR-4, thickness 1.6mm
-
Contact material: phosphor bronze pin T=0.35mm; IDC contact T=0.50mm nickel-plated
-
Electrical rating: 125V AC, 1.5A; contact resistance ≤100mΩ; insulation resistance ≥1,000MΩ
-
Wire compatibility: 24–26AWG UTP
-
Operating temperature: 0~70°C, storage: -40~85°C
Applications
-
10/100/1000/10GBASE-T Ethernet networks
-
High-density wall plates and patch panels
-
Data centers, server rooms, and office networks
-
Structured cabling for commercial or industrial applications
-
Power over Ethernet (PoE) connections
Frequently Asked Questions (FAQ)
Q: Does this keystone jack require tools for installation?
A: No, it features a 90-degree tool-less punch-down design.
Q: What cable sizes are supported?
A: Compatible with 24–26AWG UTP cables.
Q: Is it CAT.6A compliant?
A: Yes, it supports 10Gb Ethernet networks.
Q: Can it be used for PoE?
A: Yes, fully compatible with standard PoE implementations.
Q: What is the operating temperature range?
A: 0~70°C for operation, -40~85°C for storage.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
