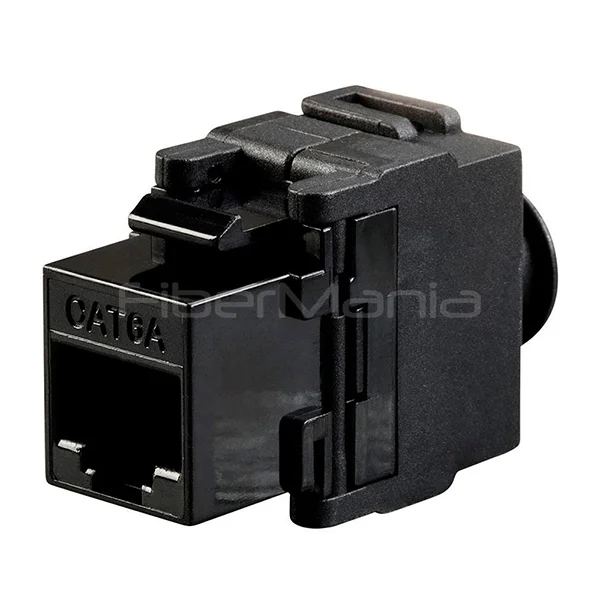

CAT.6A UTP Toolless Keystone Jack, 180 Degree Punch Down, Black
Categories:
Product Highlights:
-
CAT.6A UTP Toolless Keystone Jack with 180-degree punch-down design for easy, tool-free installation.
-
High-performance electrical and mechanical specifications ensure reliable, long-term connectivity.
-
Compact, durable construction with flame-retardant materials for safe operation.
Table of Contents
Description
FiberMania CAT.6A UTP Toolless Keystone Jack (180-Degree Punch Down, Black) is engineered for high-speed Ethernet networks, offering CAT.6A performance up to 10Gbps. Its 180-degree tool-less design simplifies installation, making it ideal for high-density patch panels, wall plates, and modular outlets. Built with flame-retardant housing and high-quality phosphor bronze contacts, it ensures durable, reliable network connectivity in commercial, data center, and telecommunication applications. The keystone jack supports 24–26AWG UTP cables and is compatible with standard structured cabling systems.
Specification
| Connector Type | RJ45 Keystone Jack, female |
|---|---|
| Category | CAT.6A |
| Orientation | 180-degree tool-less punch down |
| Wire Size | 24–26AWG |
| Housing Material | PC UL94V-0 (flame-retardant) |
| Inner Material | Flame-retardant ABS UL94V-0 |
| PCB Material | FR-4, 1.6mm thick |
| Contact Material | Phosphor bronze stamp pin, T=0.35mm |
| IDC Contact Material | Phosphor bronze, T=0.50mm, nickel-plated |
| Voltage Rating | 125V AC RMS |
| Current Rating | 1.5A |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥1, 000MΩ at 500V DC |
| Dielectric Strength | 750V AC RMS, 60Hz, 1 min |
| Storage Temp | -40~85°C |
| Operating Temp | 0~70°C |
| Standards Compliance | TIA/EIA 568-C.2, RoHS |
Features
-
Toolless 180-degree punch-down design for quick installation.
-
CAT.6A rated for 10Gb Ethernet applications.
-
Durable materials: PC UL94V-0 housing, flame-retardant ABS inner, FR-4 PCB.
-
Phosphor bronze contacts: main pin T=0.35mm, IDC contacts T=0.50mm nickel-plated.
-
Electrical rating: 125V AC, 1.5A, contact resistance ≤100mΩ, insulation resistance ≥1,000MΩ.
-
Wire compatibility: 24–26AWG UTP.
-
Operating temperature: 0~70°C, storage: -40~85°C.
Applications
-
10/100/1000/10GBASE-T Ethernet networks
-
High-density patch panels and wall plates
-
Data centers, server rooms, and telecommunication closets
-
Structured cabling in office environments
-
Power over Ethernet (PoE) applications
Frequently Asked Questions (FAQ)
Q: Can this keystone jack be installed without punch-down tools?
A: Yes, it features a tool-less 180-degree punch-down design.
Q: What cable sizes are supported?
A: Supports 24–26AWG UTP cables.
Q: Is this CAT.6A compliant?
A: Yes, suitable for 10Gb Ethernet applications.
Q: Can it handle PoE?
A: Yes, it is compatible with standard PoE implementations.
Q: What is the temperature range for operation?
A: Operating: 0~70°C; Storage: -40~85°C.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
