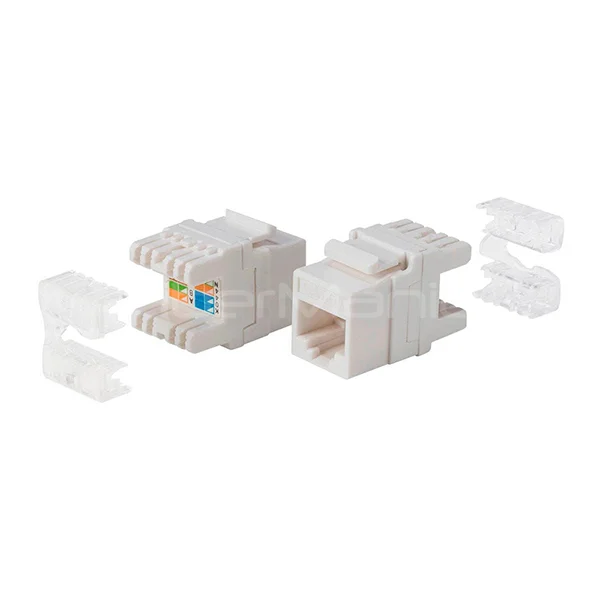

CAT.6A UTP Keystone Jack, 180 Degree, Short Body, White
Categories:
Product Highlights:
-
CAT.6A UTP keystone jack for high-speed Ethernet networks up to 10G
-
180-degree short body design for easy installation in tight spaces
-
Durable phosphor bronze contacts with tin plating and dual IDC termination
-
Flame-retardant materials and TIA Cat.5e compliant performance
-
FiberMania provides OEM/ODM services for customized branding, colors, and project-specific solutions
Table of Contents
Description
The CAT.6A UTP Keystone Jack is designed for high-performance networking applications, providing reliable data transmission for Ethernet networks up to 10 Gigabit. Its 180-degree short body design allows flexible installation in tight spaces while maintaining excellent signal integrity.
Constructed with flame-retardant materials, high-quality phosphor bronze contacts, and precision IDC termination, this keystone jack ensures durability, consistent connectivity, and minimal signal loss. It supports standard 24-26AWG copper wires and passes TIA Cat.5e permanent link tests, making it ideal for structured cabling systems in commercial, industrial, and enterprise networks.
FiberMania offers customization options and OEM/ODM services, enabling clients to request branded labeling, color options, or batch production according to project needs.
Specification
| Type | Short Body Keystone Jack |
|---|---|
| Connector | RJ45, 8P8C |
| Orientation | 180° |
| Color | White |
| Material | ABS |
| Shielding | UTP |
| Features | Short body for compact installation |
| Applications | Compact installations |
| Standards Compliance | TIA/EIA CAT.6A; RoHS |
| Installation | Snap-in / short body |
| Customization | OEM/ODM |
Features
-
CAT.6A compliance for high-speed networking up to 10G
-
180-degree short body design for flexible installation
-
Dual IDC termination for solid and stranded wires
-
Phosphor bronze contacts with tin plating for durability
-
RJ45 insertion rated 750 times minimum
-
Flame-retardant housing and insert material
-
TIA Cat.5e permanent link test compliant
Application
-
Structured cabling in enterprise and commercial buildings
-
Data centers and network closets
-
Ethernet and IP-based systems
-
Industrial networking environments
-
Office and residential networking
Mechanical
- Housing material: PC
- Insert material: flame retardant PBT
- PCB material: FR-4, T=1.6mm
- Contact material: phosphor bronze stamp pin, T=0.30mm
- IDC contact material: phosphor bronze, T=0.50mm with tin plating
- RJ45 jack: IFE: 750 times min
- IDC lifespan: 200 times min
- Wire: 24-26AWG
- Tia Cat.5e perm link test: worst pair next margin: ≥3dB
- Retentiveness of insertion structure: 50N 60±5s
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
