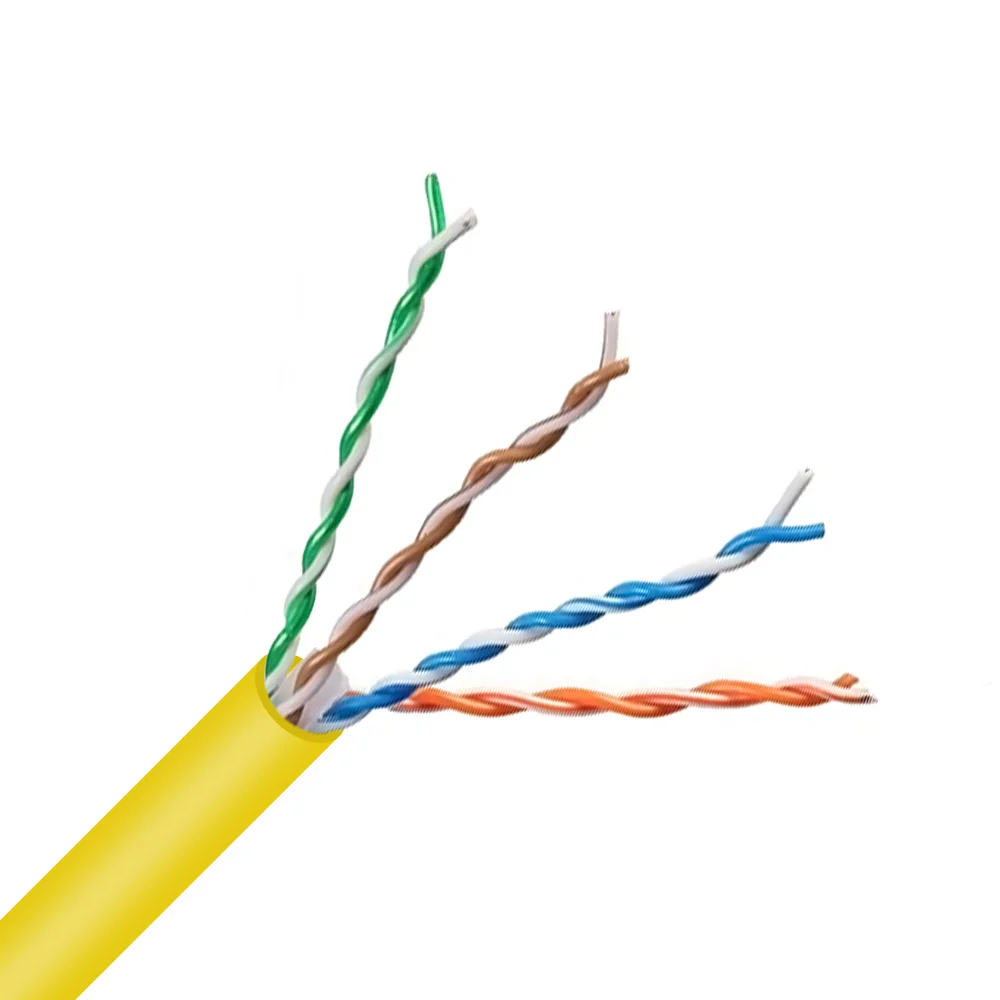

CAT.6A UTP Bulk Cable, Bare Solid Copper, 23AWG, 4 Pairs, PVC Jacket, Yellow, 305M Per Reel
Categories:
Product Highlights:
-
High-performance CAT.6A UTP bulk cable, 23AWG solid copper, 4 pairs, yellow PVC jacket
-
Supports 10Gb high-speed Ethernet and excellent signal quality
-
Color-coded twisted pairs for easy identification and installation
-
FiberMania provides OEM/ODM customization for cable length, jacket color, labeling, and project-specific requirements
Table of Contents
Description
This CAT.6A UTP bulk cable is designed for high-performance data communication and 10Gb Ethernet applications, providing stable and reliable network transmission. Constructed with 23AWG solid bare copper conductors, it ensures excellent conductivity and low attenuation, delivering superior signal quality for long-distance transmission.
The cable features four color-coded twisted pairs for easy identification during installation and maintenance. Its unshielded twisted pair (UTP) design minimizes crosstalk and ensures compatibility with standard network devices. Encased in a durable PVC jacket, the cable is suitable for both horizontal and vertical cabling in enterprise LANs, data centers, and office environments. FiberMania also offers OEM/ODM customization for length, color, jacket material, and labeling according to project requirements.
Engineered for long-term performance, this cable meets ANSI/TIA/EIA-568-C.2 standards and is UL listed, making it a reliable choice for structured cabling projects.
Specification
| Product Category | CAT.6A |
|---|---|
| Cable Type | UTP |
| Application Type | 10G High-Speed Ethernet |
| Number of Pairs | 4 Pairs |
| Conductor Gauge | 23 AWG |
| Conductor Material | Solid Bare Copper |
| Pair Shielding | None |
| Overall Shielding | None |
| Shield Type | UTP |
| Insulation Material | HDPE |
| Jacket Material | PVC |
| Jacket Color | Yellow |
| Outer Diameter (Typical) | Approx. 6.8–7.3 mm |
| Cable Length | 305 m |
| Packaging | Reel |
| Installation Environment | Indoor |
| Bandwidth | 500 MHz |
| Maximum Data Rate | Up to 10Gbps (100m) |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801 |
| Fire Rating | PVC (CM) |
| Certifications | UL Listed, RoHS Compliant |
| Typical Applications | Enterprise LAN, Office Cabling, Data Centers |
| OEM / ODM Support | Yes |
Features
-
Supports 10Gb high-speed data transmission
-
4 pairs of color-coded 23AWG solid bare copper conductors
-
Unshielded Twisted Pair (UTP) design
-
Excellent attenuation and crosstalk performance
-
PVC jacket for durability and protection
-
Exceeds ANSI/TIA/EIA-568-C.2 standard
-
UL listed and RoHS compliant
Applications
-
Enterprise LAN and WAN networks
-
Data centers and server rooms
-
High-speed Ethernet connections (10GbE)
-
Structured cabling systems
-
Office and commercial network installations
FAQ
Q1: Can this cable support 10Gb Ethernet over 100 meters?
A1: Yes, it meets CAT.6A standards and supports 10Gb Ethernet up to 100 meters.
Q2: Is the yellow jacket customizable?
A2: Yes, FiberMania can provide OEM/ODM services for different colors, printing, and labeling.
Q3: What is the conductor material?
A3: The cable uses 23AWG solid bare copper for optimal signal performance.
Q4: Is this cable RoHS compliant?
A4: Yes, it is fully RoHS compliant and UL listed.
Q5: Can it be used in data centers and office environments?
A5: Absolutely, it is suitable for structured cabling in data centers, LANs, and office networks.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
