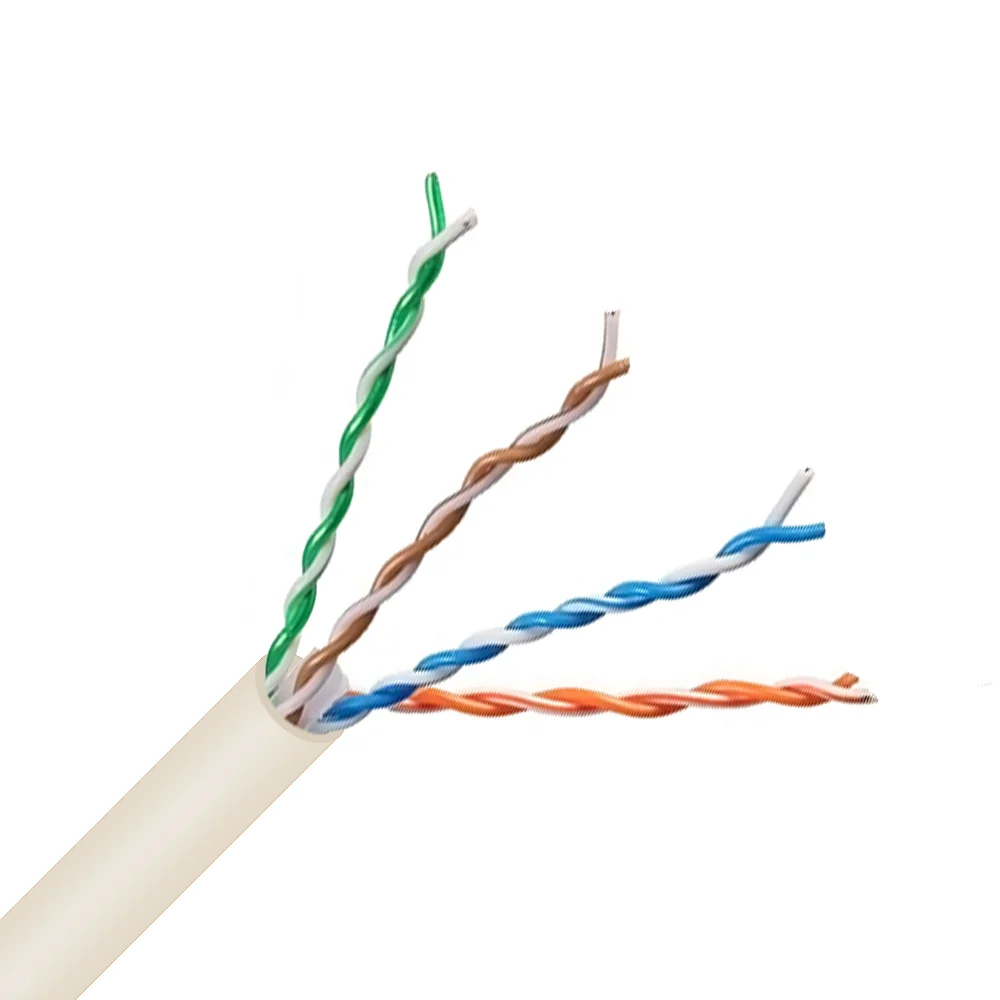

CAT.6A UTP Bulk Cable, Bare Solid Copper, 23AWG, 4 Pairs, PVC Jacket, Grey, 305M Per Reel
Categories:
Product Highlights:
-
Grey CAT.6A UTP bulk cable, 23AWG, 4 pairs, 305M per reel.
-
Supports 10Gb high-speed data communications with minimal crosstalk.
-
Durable PVC jacket suitable for indoor network installations.
-
FiberMania provides OEM/ODM customization for professional projects and branding.
Table of Contents
Description
This CAT.6A UTP bulk cable is engineered for high-performance data communications, supporting 10Gbps high-speed applications with exceptional signal integrity. Constructed with 23AWG solid bare copper conductors and four color-coded twisted pairs, the cable ensures minimal crosstalk and attenuation, meeting or exceeding ANSI/TIA/EIA 568 C.2 standards. Its durable PVC jacket provides reliable protection in indoor installations, making it suitable for commercial, industrial, and enterprise network environments.
FiberMania offers customization options for OEM/ODM, including reel length, color coding, and branding, ideal for large-scale projects and professional network deployments.
Specification
| Product Category | CAT.6A |
|---|---|
| Cable Type | UTP |
| Application Type | 10G High-Speed Ethernet |
| Number of Pairs | 4 Pairs |
| Conductor Gauge | 23 AWG |
| Conductor Material | Solid Bare Copper |
| Pair Shielding | None |
| Overall Shielding | None |
| Shield Type | UTP |
| Insulation Material | HDPE |
| Jacket Material | PVC |
| Jacket Color | Grey |
| Outer Diameter (Typical) | Approx. 6.8–7.3 mm |
| Cable Length | 305 m |
| Packaging | Reel |
| Installation Environment | Indoor |
| Bandwidth | 500 MHz |
| Maximum Data Rate | Up to 10Gbps (100m) |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801 |
| Fire Rating | PVC (CM) |
| Certifications | UL Listed, RoHS Compliant |
| Typical Applications | Enterprise LAN, Office Cabling, Data Centers |
| OEM / ODM Support | Yes |
Features
-
High-performance 10Gbps data communications
-
Category-6A UTP construction with 4 color-coded pairs
-
23AWG solid bare copper conductors
-
Excellent attenuation and crosstalk characteristics
-
Exceeds ANSI/TIA/EIA 568 C.2 standards
-
UL Listed and RoHS compliant
Applications
-
Enterprise network infrastructure
-
Data centers and server rooms
-
Industrial Ethernet and factory automation
-
High-speed cabling for commercial buildings
Q&A
Q: Can this cable be used outdoors?
A: No, it is designed for indoor installations; outdoor use requires UV-resistant or armored cable.
Q: Is the grey jacket customizable?
A: Yes, FiberMania provides OEM/ODM options for jacket color and printing.
Q: Does it support 10Gb Ethernet over 100 meters?
A: Yes, CAT.6A is rated for 10Gb Ethernet up to 100 meters.
Q: Can it be used with standard Cat6 connectors?
A: Yes, but for optimal 10Gb performance, Cat6A-rated connectors are recommended.
Q: How is the cable packaged?
A: Standard packaging is 305 meters per reel, with OEM/ODM customization available.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
