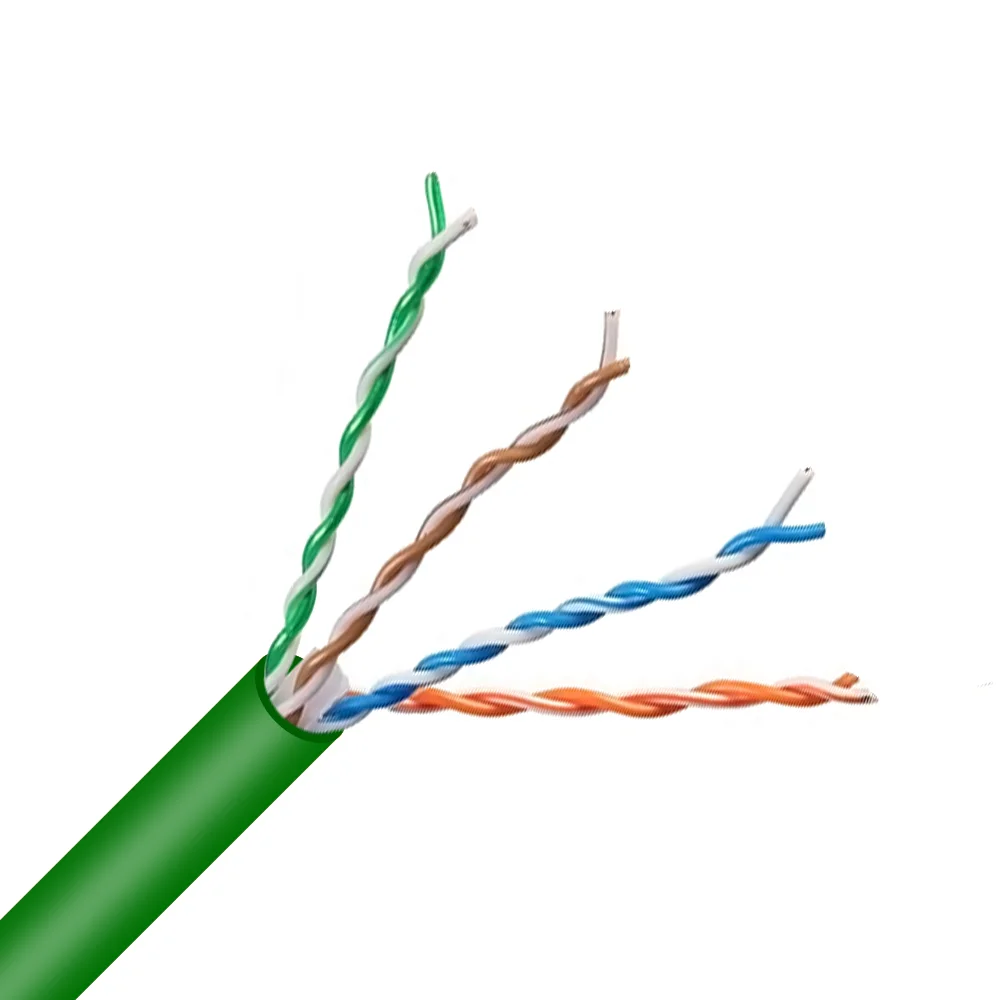

CAT.6A UTP bulk cable, 23AWG solid copper, 4 pairs, PVC jacket, green, 305M reel
-
Designed for 10Gb high-speed Ethernet applications with excellent signal integrity
-
Color-coded pairs for easy identification and installation
-
FiberMania provides OEM/ODM customization for jacket color, reel length, and project-specific requirements
CAT.6A UTP Bulk Cable, Bare Solid Copper, 23AWG, 4 Pairs, PVC Jacket, Green, 305M Per Reel
P/N: LAN-6AUS23GNP
Categories:
Product Highlights:
Table of Contents
Description
This CAT.6A UTP bulk cable is designed for high-speed data transmission in modern network infrastructures. Constructed with 23AWG solid bare copper conductors, it delivers superior electrical performance and ensures reliable signal integrity over long distances. The four color-coded pairs simplify identification during installation, making termination and troubleshooting efficient and straightforward.
The PVC jacket provides durable protection against environmental and mechanical stress, while maintaining flexibility for easy routing in tight spaces. This cable is ideal for 10Gb Ethernet applications and is fully compliant with ANSI/TIA/EIA 568 C.2 standards. FiberMania also provides OEM and ODM services, allowing customers to customize jacket color, reel length, and packaging to suit project requirements.
Specification
| Product Category | CAT.6A |
|---|---|
| Cable Type | UTP |
| Application Type | 10G High-Speed Ethernet |
| Number of Pairs | 4 Pairs |
| Conductor Gauge | 23 AWG |
| Conductor Material | Solid Bare Copper |
| Pair Shielding | None |
| Overall Shielding | None |
| Shield Type | UTP |
| Insulation Material | HDPE |
| Jacket Material | PVC |
| Jacket Color | Green |
| Outer Diameter (Typical) | Approx. 6.8–7.3 mm |
| Cable Length | 305 m |
| Packaging | Reel |
| Installation Environment | Indoor |
| Bandwidth | 500 MHz |
| Maximum Data Rate | Up to 10Gbps (100m) |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801 |
| Fire Rating | PVC (CM) |
| Certifications | UL Listed, RoHS Compliant |
| Typical Applications | Enterprise LAN, Office Cabling, Data Centers |
| OEM / ODM Support | Yes |
Features
-
High-performance CAT.6A UTP cable for 10Gb networks
-
23AWG solid bare copper conductors for optimal signal integrity
-
4 color-coded pairs for easy identification
-
PVC jacket for durability and flexibility
-
Excellent attenuation and crosstalk characteristics
-
Exceeds ANSI/TIA/EIA 568 C.2
-
UL Listed and RoHS compliant
Applications
-
Enterprise LANs and office networks
-
Data centers and server rooms
-
High-speed Ethernet and backbone cabling
-
Structured cabling systems
FAQ
Q1: Is this cable suitable for 10Gb Ethernet?
A1: Yes, it is fully rated for 10Gb high-speed network applications.
Q2: Can the jacket color be customized?
A2: Yes, FiberMania offers OEM/ODM customization for jacket color and reel length.
Q3: What conductor size does this cable use?
A3: The cable uses 23AWG solid bare copper conductors.
Q4: Is the cable RoHS compliant?
A4: Yes, the cable meets RoHS environmental standards.
Q5: Can it be used outdoors?
A5: It is primarily designed for indoor installations; outdoor deployment requires proper conduit or protection.
