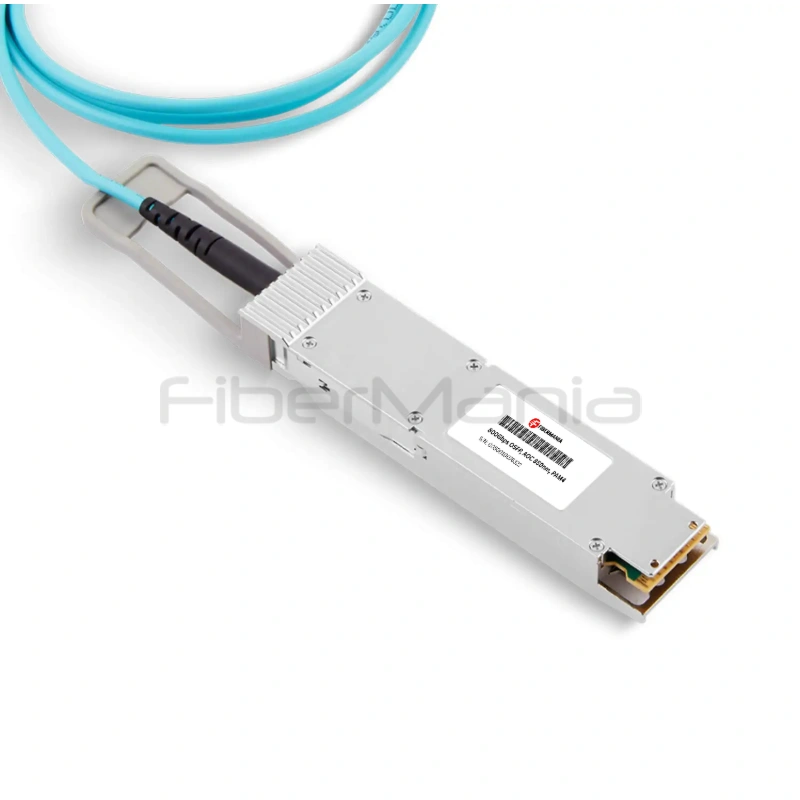

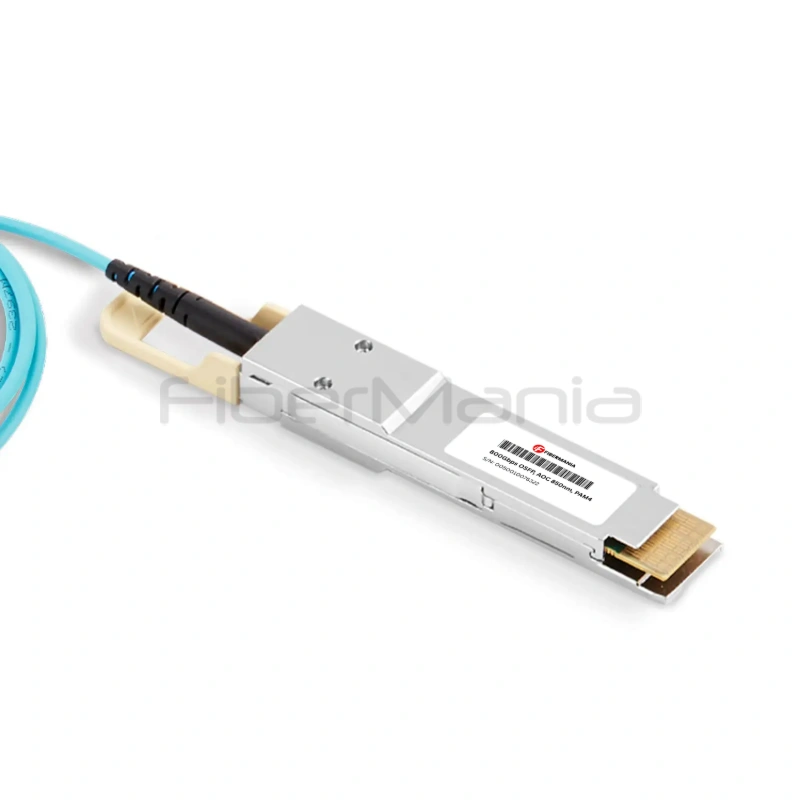

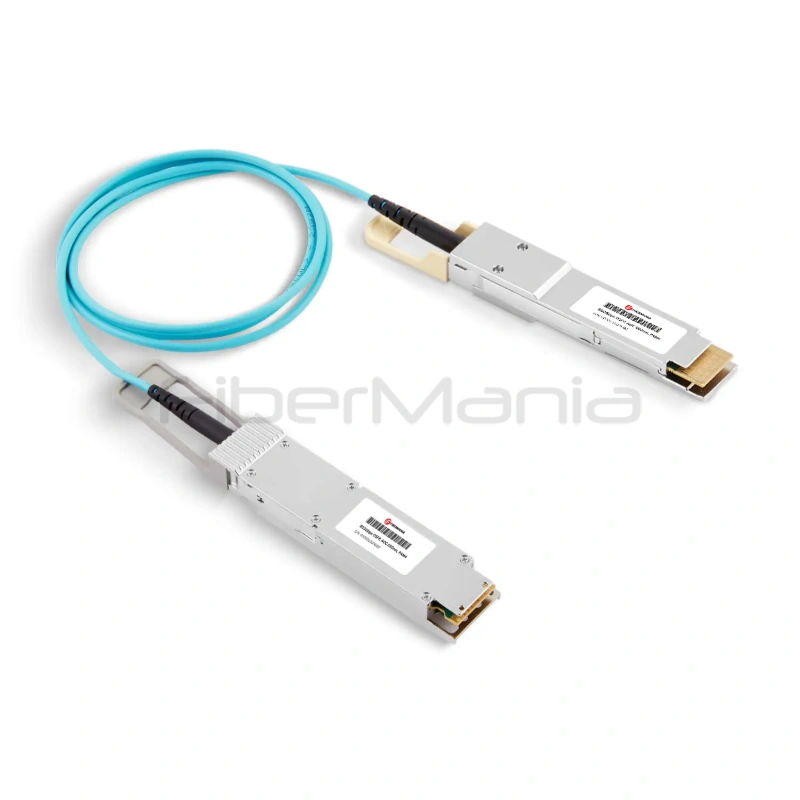

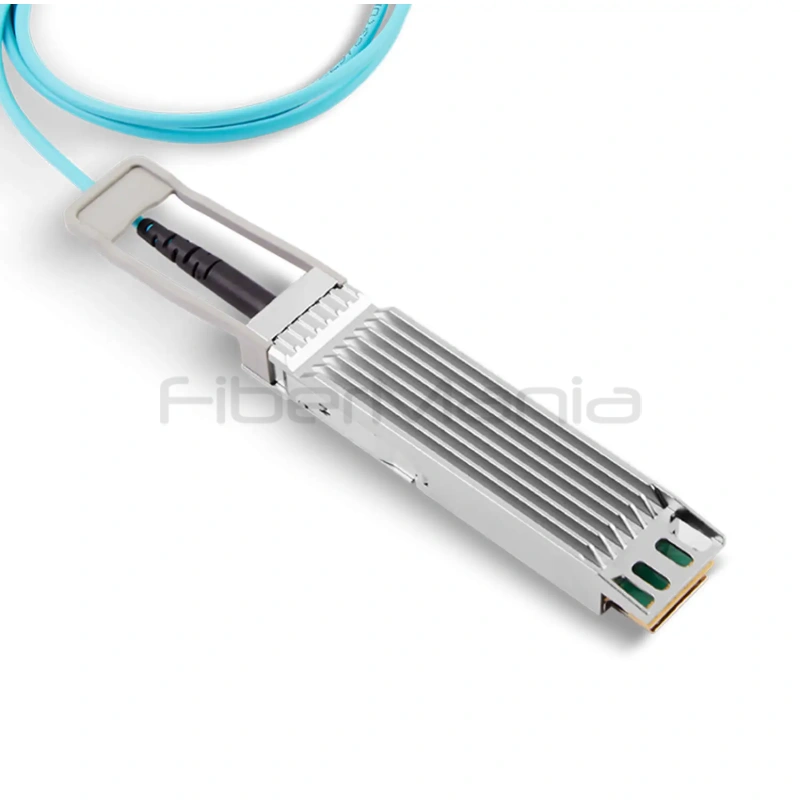

800G OSFP to QSFP-DD Active Optical Cable (AOC), 850nm OM3, PAM4
Categories:
Product Highlights:
- 800G OSFP to QSFP-DD connectivity
- 106.25Gbps PAM4 per lane
- 850nm VCSEL/PIN optical technology
- Up to 30m over OM3
- Integrated DSP and DDM/DOM
- Hot-pluggable interfaces
- Ideal for AI, GPU, HPC, and high-density data centers
Table of Contents
Description
The 800G OSFP to QSFP-DD Active Optical Cable (AOC) is a high-speed cross-form-factor optical interconnect designed to connect compatible 800G Ethernet equipment using OSFP and QSFP-DD interfaces. Supporting 106.25Gbps PAM4 per lane across eight optical channels, it provides 800G-class bandwidth while eliminating the need for separate optical transceiver modules and fiber patch cables. The cable integrates 850nm VCSEL transmitter arrays and PIN photodetector arrays with OM3 multimode fiber to support transmission distances of up to 30m. DSP-based signal processing, DDM/DOM support, hot-pluggable connectors, and a 3.3V power architecture make it suitable for high-density switch-to-switch connections, AI and GPU clusters, HPC systems, and other 800G network deployments requiring connectivity between different pluggable form factors.
Specification
| Data Rate | Up to 800Gbps |
|---|---|
| Form Factor | OSFP to QSFP-DD |
| Optical Data Rate | 106.25Gbps PAM4 per lane |
| Optical Channel Configuration | 8×106.25Gbps PAM4 |
| Wavelength | 850nm |
| Fiber Type | Multimode Fiber |
| Fiber Grade | OM3 |
| Maximum Transmission Distance | 30m |
| Transmitter | 850nm VCSEL array |
| Receiver | PIN photodetector array |
| Optical Channels | 8 |
| Signal Processing | DSP |
| FEC | No inbuilt FEC |
| DDM/DOM | Supported |
| Connector | Hot-pluggable OSFP / QSFP-DD |
| Power Supply | 3.3V |
| Power Consumption | ≤14W |
| Cable Jacket | LSZH |
| Minimum Bending Radius | 60mm |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Packaging | COB |
| Protocol Compliance | IEEE 802.3ck |
Features
- 800G OSFP to QSFP-DD connectivity
- Cross-form-factor 800G optical interconnect
- Eight optical channels
- 106.25Gbps PAM4 per lane
- 850nm VCSEL transmitter arrays
- PIN photodetector arrays
- OM3 multimode fiber
- Up to 30m transmission distance
- Integrated DSP-based signal processing
- DDM/DOM support
- Hot-pluggable OSFP and QSFP-DD interfaces
- 3.3V power architecture
- Integrated optical conversion
- No separate optical transceivers required
Applications
- 800G Ethernet networks
- OSFP-to-QSFP-DD connectivity
- Data center switch-to-switch connections
- AI and GPU clusters
- High-performance computing
- High-density data center interconnects
- 800G network migration and expansion
- Cross-form-factor switch connectivity
FAQ
What interfaces does this AOC connect?
The cable connects an 800G OSFP interface to an 800G QSFP-DD interface, providing direct optical connectivity between compatible equipment using different 800G form factors.
What signaling rate does each optical lane support?
Each of the eight optical channels supports 106.25Gbps PAM4 signaling, providing an 800G-class aggregate data rate.
What optical technology does it use?
The AOC uses 850nm VCSEL transmitter arrays and PIN photodetector arrays over OM3 multimode fiber for short-range 800G optical transmission.
What is the maximum transmission distance?
The cable supports transmission distances of up to 30 meters over OM3 multimode fiber.
What are the advantages of using this cross-form-factor AOC?
It enables direct connectivity between OSFP and QSFP-DD 800G equipment without requiring separate optical transceivers and patch cables, simplifying deployment and reducing connection complexity in high-density
