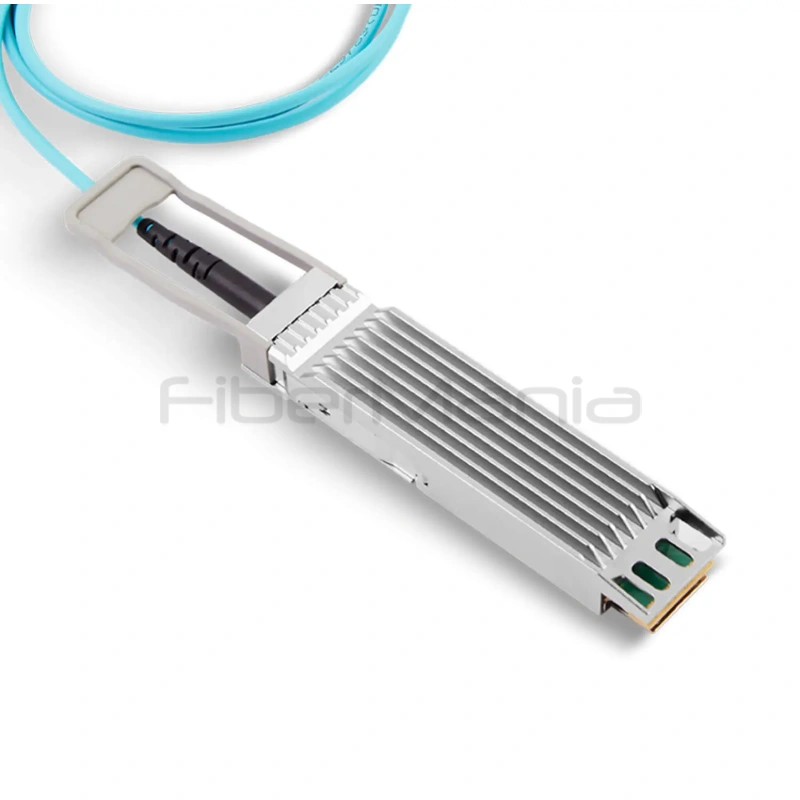

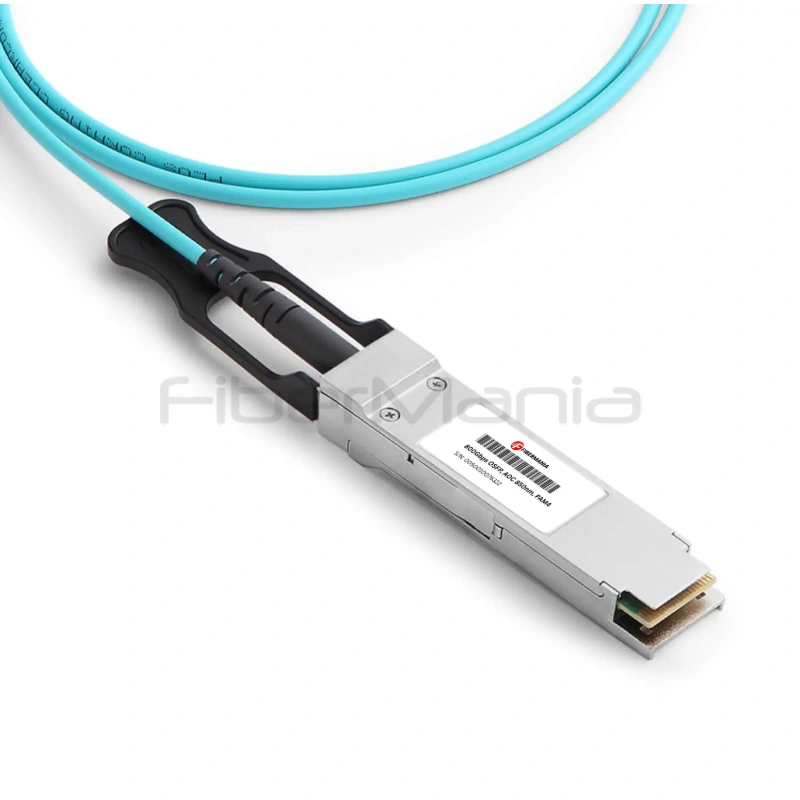

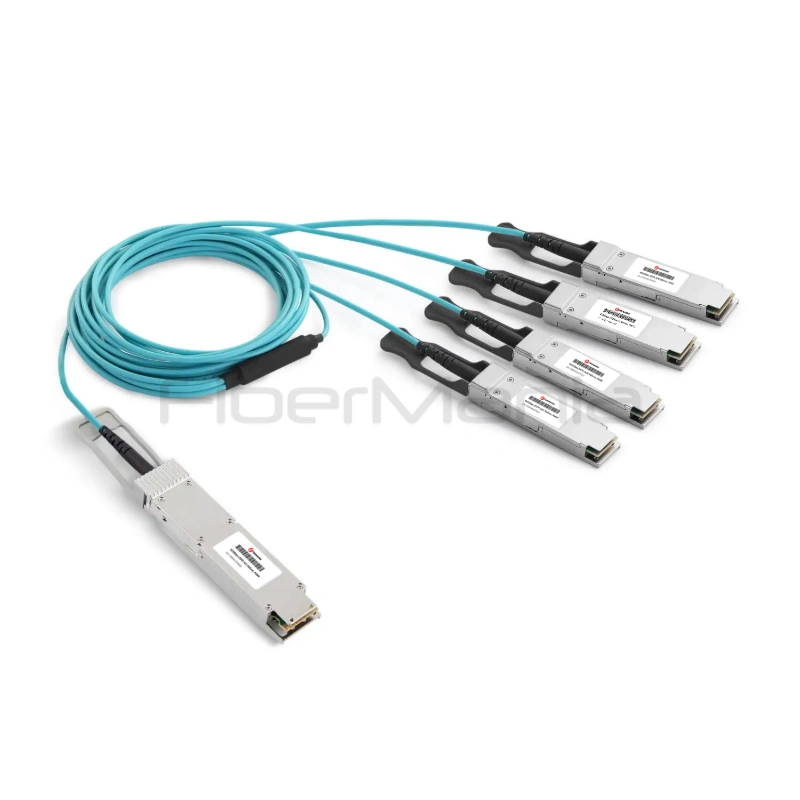

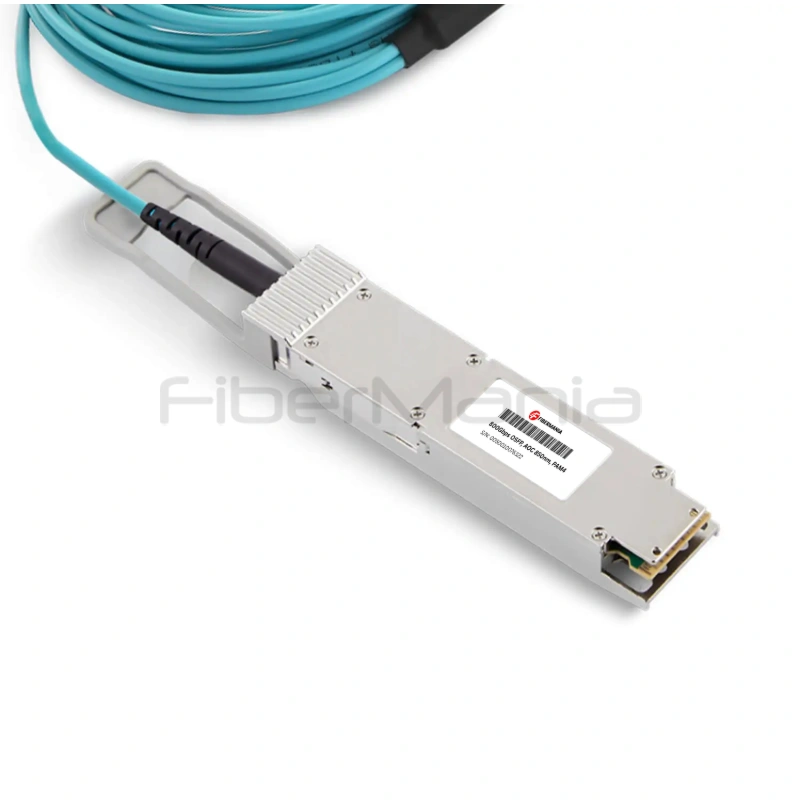

800G OSFP to 4×200G QSFP112 Active Optical Cable (AOC), Armored, OM3

Features

• 800G OSFP112 to 4×200G QSFP112 breakout configuration
• 8 lanes at 106.25Gbps PAM4
• 850nm VCSEL transmitters and PIN receivers
• OM3 multimode fiber
• Transmission distance up to 30m
• Integrated DSP for signal processing
• DDM/DOM monitoring support
• Hot-pluggable OSFP112 and QSFP112 connectors
• Armored construction for enhanced mechanical protection
• 3.3V power supply
• Designed for high-density 800G Ethernet and breakout applications

Applications

• 800G-to-200G Ethernet breakout
• AI and GPU clusters
• High-performance computing (HPC)
• High-density data centers
• Data center switch-to-server connectivity
• Next-generation Ethernet networks
• High-bandwidth server and switch interconnects

FAQ

What is the breakout configuration?

This AOC connects one 800G OSFP112 interface to four independent 200G QSFP112 interfaces, enabling a single 800G switch port to connect directly with four 200G ports.

What fiber and optical technology does it use?

The cable uses OM3 multimode fiber with 850nm VCSEL transmitter arrays and PIN photodetector arrays, supporting transmission distances up to 30 meters.

What data rate does each optical lane support?

Each lane supports 106.25Gbps PAM4 signaling. The 800G OSFP112 side uses eight lanes, while the cable provides four 200G QSFP112 connections.

Why is the cable armored?

The armored construction adds mechanical protection against bending, crushing, and other physical stresses, making the cable suitable for high-density cable-management environments.

Can it be used for AI and HPC networks?

Yes. Its high-density 800G-to-4×200G breakout architecture makes it suitable for AI/GPU clusters, HPC systems, and data center networks requiring high-bandwidth connections between switches and multiple 200G devices.
