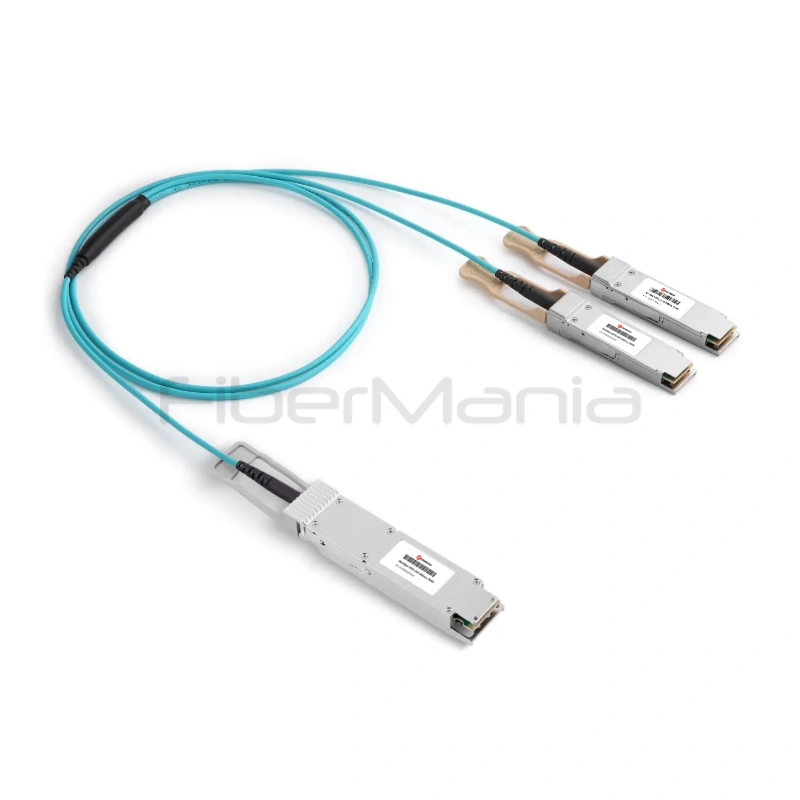

800G OSFP to 2×400G QSFP112 Active Optical Cable (AOC), Armored, 850nm OM3
Categories:
Product Highlights:
- 800G OSFP112 to 2×400G QSFP112 breakout
- 106.25Gbps PAM4 per lane
- 850nm VCSEL/PIN optical technology
- Up to 30m over OM3
- Integrated DSP and DDM/DOM
- Armored construction
- Ideal for AI, GPU, HPC, and high-density data centers
Table of Contents
Description
The 800G OSFP to 2×400G QSFP112 Active Optical Cable (AOC) is a high-density breakout optical interconnect designed to connect one 800G OSFP112 interface to two independent 400G QSFP112 interfaces. Supporting 106.25Gbps PAM4 per lane across eight optical lanes in each direction, it provides an efficient solution for 800G-to-2×400G Ethernet breakout applications. The cable integrates 850nm VCSEL transmitter arrays and PIN photodetector arrays with OM3 multimode fiber to support transmission distances of up to 30m. Integrated DSP, DDM/DOM monitoring, hot-pluggable interfaces, and a 3.3V power supply support reliable high-speed operation, while the armored construction provides enhanced mechanical protection for demanding installations. It is suitable for high-density data centers, AI and GPU clusters, HPC systems, and other next-generation Ethernet environments.
Specification
| Cable Configuration | OSFP112 to 2×QSFP112 |
|---|---|
| Breakout Configuration | 800G to 2×400G |
| Application | 800G Ethernet / 400G Ethernet |
| Aggregate Data Rate | 800Gbps |
| Data Rate per Lane | 106.25Gbps |
| Modulation | PAM4 |
| OSFP112 Lane Configuration | 8×106.25Gbps PAM4 |
| Each QSFP112 Lane Configuration | 4×106.25Gbps PAM4 |
| Wavelength | 850nm |
| Fiber Type | Multimode Fiber |
| Fiber Grade | OM3 |
| Maximum Transmission Distance | 30m |
| Transmitter | VCSEL |
| Receiver | PIN photodetector |
| Optical Channels | 8 at OSFP112 end |
| Signal Processing | DSP |
| FEC | No inbuilt FEC |
| DDM/DOM | Supported |
| Connector | Hot-pluggable OSFP112 / QSFP112 |
| Power Supply | 3.3V |
| Power Consumption – OSFP112 End | ≤14W |
| Power Consumption – Each QSFP112 End | ≤10W |
Features
- 800G OSFP112 to 2×400G QSFP112 breakout configuration
- Two independent 400G QSFP112 connections
- 106.25Gbps PAM4 per optical lane
- Eight optical lanes in each direction
- 850nm VCSEL transmitter arrays
- PIN photodetector arrays
- OM3 multimode fiber
- Up to 30m transmission distance
- Integrated DSP signal processing
- DDM/DOM monitoring
- Hot-pluggable OSFP112 and QSFP112 interfaces
- 3.3V power supply
- Armored cable construction
- High-density breakout architecture
Applications
- 800G to 2×400G Ethernet breakout
- 800G data center networks
- AI and GPU clusters
- High-performance computing
- High-density switch interconnects
- Switch-to-switch connectivity
- 400G network expansion
- Next-generation Ethernet infrastructure
- High-density rack interconnects
FAQ
What is the breakout configuration?
The cable connects one 800G OSFP112 port to two independent 400G QSFP112 ports, allowing a single 800G interface to connect directly with two 400G network interfaces.
What signaling rate does each optical lane support?
Each optical lane supports 106.25Gbps PAM4 signaling. The 800G architecture uses eight optical lanes in each direction.
What is the maximum transmission distance?
The AOC supports up to 30 meters over OM3 multimode fiber, making it suitable for short-range data center and rack-level interconnects.
Why is the cable armored?
The armored construction provides additional mechanical protection against physical stress, making the AOC suitable for demanding cable-management and installation environments.
What monitoring and management features are included?
The AOC supports integrated DSP, DDM/DOM monitoring, hot-pluggable interfaces, and a 3.3V power supply for reliable deployment and operational monitoring.
