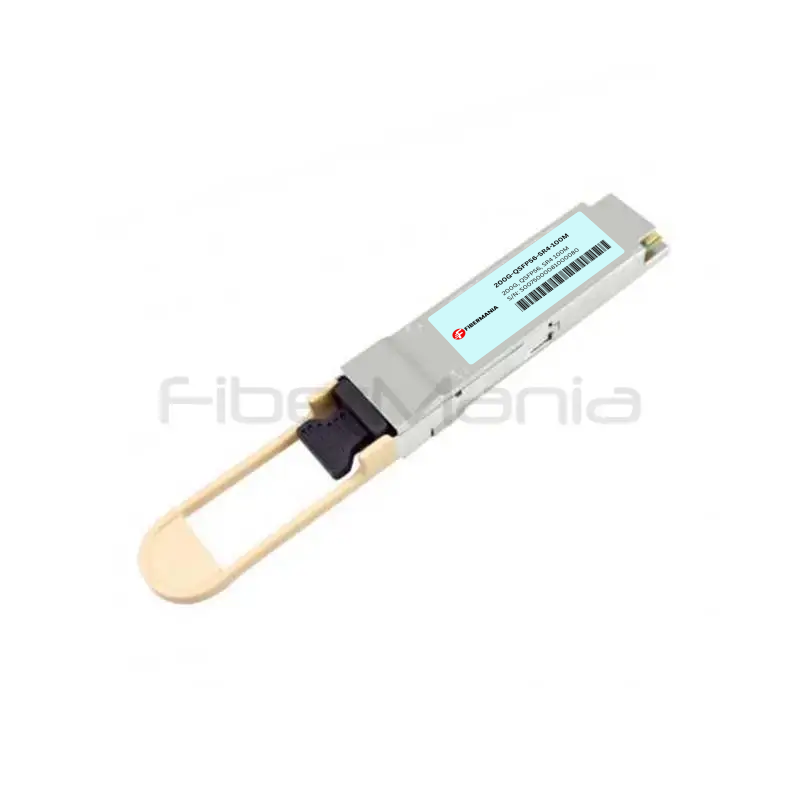

200G QSFP56 SR4 Optical Transceiver, 100m, Multi-Mode Fiber, MPO
Categories:
Product Highlights:
-
200G QSFP56 SR4 optical transceiver for multi-mode fiber networks
-
Supports 200Gbps bandwidth with 100m reach on OM4 and 70m on OM3
-
Compact QSFP56 form factor with MPO12 connector and low 4W power consumption
-
FiberMania provides OEM, ODM, and private-label services with flexible customization and reliable mass production
Table of Contents
Description
The 200G QSFP56 SR4 100m optical transceiver is a high-performance, energy-efficient module designed for next-generation data center networks. Operating at an 850nm wavelength over multi-mode fiber, it delivers 200Gbps aggregate bandwidth with four parallel 53.125Gbps electrical lanes (200GAUI-4), ensuring ultra-high-speed connectivity for modern applications.
This transceiver is ideal for AI/ML clusters, hyperscale spine-leaf architectures, and 200G Ethernet uplinks, providing a scalable, cost-effective solution for upgrading from 100G infrastructures. Its compact QSFP56 form factor and MPO-12 connector maximize port density while maintaining low power consumption, making it suitable for dense data center deployments.
Designed with plug-and-play simplicity, the module allows rapid deployment and seamless integration with existing network equipment. Digital Diagnostic Monitoring (DDM) provides real-time tracking of critical operational parameters, while the module’s wide compliance and reliability ensure robust performance in demanding networking environments.
Specification
| Form Factor | QSFP56 |
|---|---|
| Data Rate | 200Gbps |
| Wavelength | 850nm |
| Transmission Distance | Up to 70m (OM3), 100m (OM4) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Connector | MPO-12 |
| Electrical Interface | 4×53.125Gb/s (200GAUI-4) |
| Diagnostic Function | Digital Diagnostic Monitoring (DDM) |
| Power Supply | Single +3.3V |
| Maximum Power | 4W |
| Housing | Compact QSFP56 |
| Operating Temperature | 0°C ~ +70°C |
| Compliance | RoHS |
Features
-
Supports 200G-SR4 optical specifications
-
4×53.125Gb/s electrical interface (200GAUI-4)
-
Transmission distance up to 70m on MMF (OM3)
-
Transmission distance up to 100m on MMF (OM4)
-
Hot-pluggable QSFP56 form factor
-
Single MPO12 optical connector
-
Low power consumption, maximum 4W
-
Single +3.3V power supply
-
Digital Diagnostic Monitoring (DDM)
-
Operating temperature: 0°C ~ +70°C
-
RoHS compliant
Applications
-
200G Ethernet uplinks
-
AI/ML compute clusters
-
Hyperscale spine-leaf data center architectures
-
High-density multi-mode fiber interconnects
-
Next-generation data center migration from 100G
FAQ
What is the maximum transmission distance?
Up to 70m on OM3 multimode fiber and 100m on OM4 multimode fiber.
Which electrical interface does it use?
It uses 4 parallel lanes of 53.125Gbps, compliant with 200GAUI-4.
Does it support real-time monitoring?
Yes, it features Digital Diagnostic Monitoring (DDM) for real-time performance tracking.
What type of connector does it use?
A single MPO-12 connector for high-density parallel fiber connections.
Can FiberMania provide OEM or private-label versions?
Yes, FiberMania offers OEM, ODM, and private-label manufacturing services, including labeling, coding, and performance customization.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
