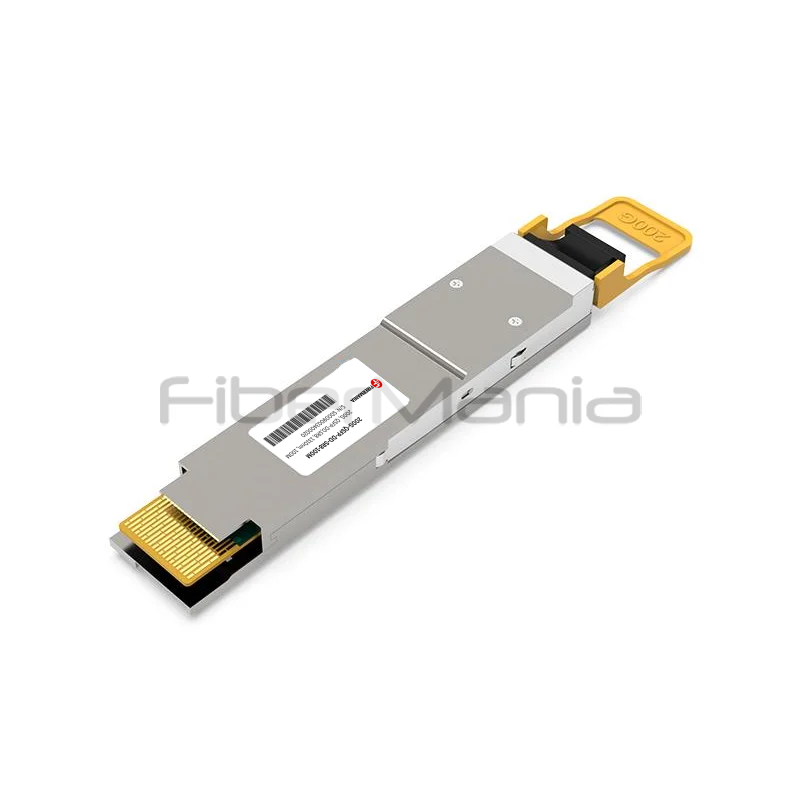

200G QSFP-DD SR8 100m Optical Transceiver 850nm MPO-16 APC MMF
Categories:
Product Highlights:
- 200Gbps SR8 transmission up to 100m
- Eight-channel 850nm VCSEL parallel optics
- Supports MPO-16 APC and dual MPO-12 UPC
- 200GAUI-8 electrical interface
- Only 3.5W power consumption
- CMIS 4.0 management for high-density 200G networks
Table of Contents
Description
The 200G QSFP-DD SR8 Optical Transceiver is a high-speed 200Gbps short-reach optical module designed for Ethernet and data center connectivity over multimode fiber. Based on the SR8 parallel optical architecture, it uses eight-channel 850nm VCSEL transmitter and photodiode receiver arrays to provide reliable transmission over distances of up to 100m. Supporting the 200GAUI-8 electrical interface, the module delivers high-bandwidth connectivity in a compact QSFP-DD form factor. It supports MPO-16 APC and dual MPO-12 UPC connectivity options for flexible integration with different high-density cabling architectures. With low power consumption of only 3.5W and CMIS 4.0 management support, it is suitable for cloud computing, AI infrastructure, high-performance computing, enterprise networks, and other short-reach 200G applications.
Specification
| Form Factor | QSFP-DD |
|---|---|
| Data Rate | 200Gbps |
| Electrical Interface | 200GAUI-8 |
| Fiber Type | Multimode Fiber (MMF) |
| Recommended Fiber | OM4 / OM5 MMF |
| Maximum Distance | Up to 100m |
| Wavelength | 850nm |
| Optical Technology | VCSEL |
| Optical Configuration | 8-Lane Parallel Optical Transmission |
| Modulation Format | NRZ |
| Transmitter Type | 850nm VCSEL Array |
| Receiver Type | Photodiode Receiver Array |
| Optical Connector | MPO-16 APC / Dual MPO-12 UPC |
| Power Supply | Single +3.3V |
| Power Consumption | 3.5W |
| Digital Monitoring | CMIS 4.0 Supported |
| Host Interface | QSFP-DD Electrical Interface |
| Hot Plug Capability | Yes |
Features
- 200Gbps aggregate data rate
- Transmission distance up to 100m over MMF
- Eight-channel 850nm VCSEL transmitters
- Eight-channel photodiode receiver arrays
- 200GAUI-8 electrical interface
- QSFP-DD high-density pluggable form factor
- MPO-16 APC optical interface option
- Dual MPO-12 UPC optical interface option
- Low power consumption of 3.5W
- CMIS 4.0 management support
- Compliant with QSFP-DD Hardware Specification
Applications
- 200G Ethernet data center networks
- Cloud computing infrastructure
- AI and machine learning networks
- High-performance computing
- Data Center Interconnect (DCI)
- Enterprise optical networks
- High-density short-reach fiber connections
FAQs
What is the maximum transmission distance?
The 200G QSFP-DD SR8 supports transmission distances of up to 100 meters over compatible multimode fiber.
What type of optical technology does it use?
The module uses eight-channel 850nm VCSEL transmitters and photodiode receiver arrays for parallel multimode fiber transmission.
What optical connector options are available?
The transceiver supports MPO-16 APC and dual MPO-12 UPC connectivity options, allowing it to be integrated into different high-density data center cabling architectures.
What is the power consumption?
The module has a low power consumption of only 3.5W, making it suitable for high-density deployments where power efficiency is important.
What host electrical interface does it support?
The module supports the 200GAUI-8 electrical interface for high-speed connectivity with compatible 200G networking equipment.
