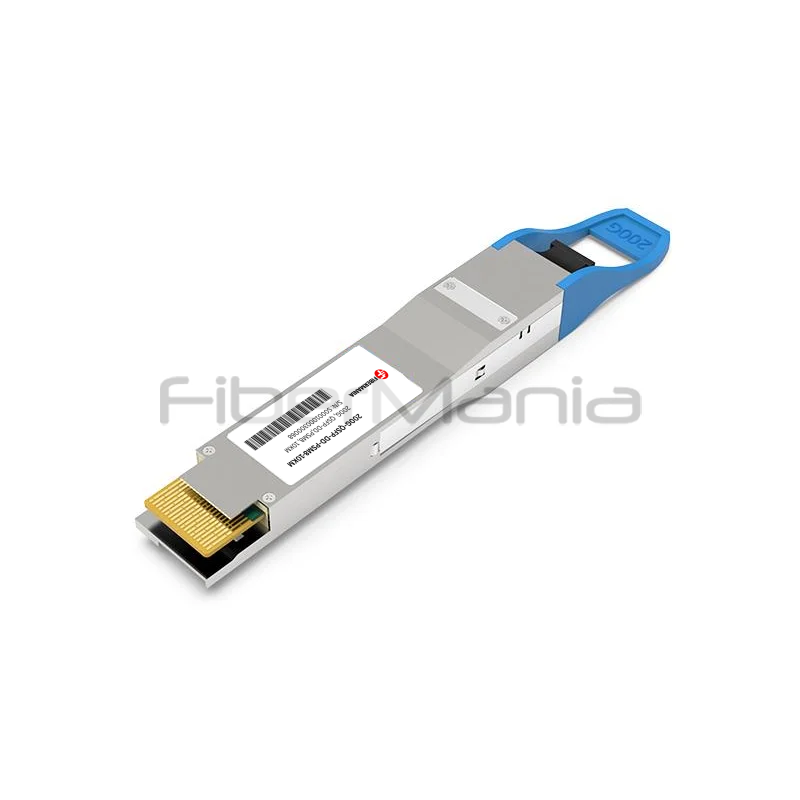

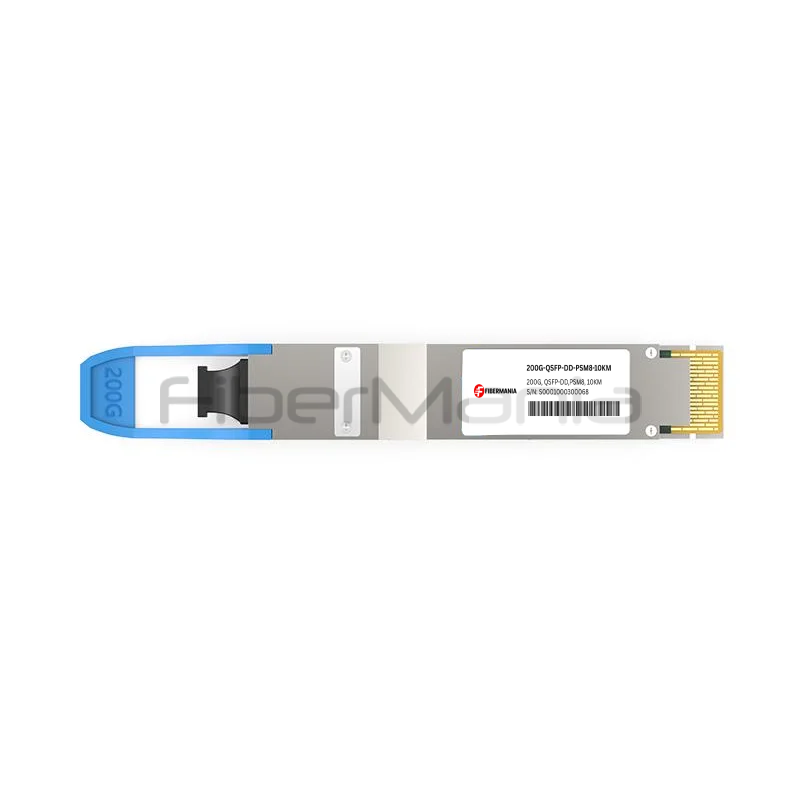

200G QSFP-DD PSM8 10km Optical Transceiver 1310nm MPO-24 APC SMF
Categories:
Product Highlights:
- 200Gbps parallel optical transmission up to 10km
- Eight 1310nm DFB laser channels
- Eight-channel PIN receiver array

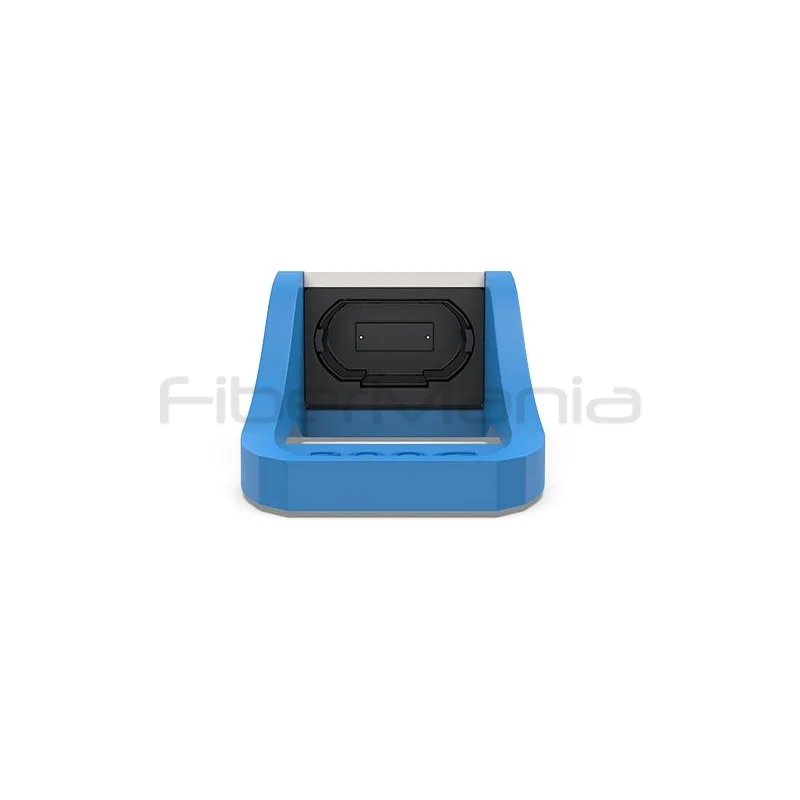

- MPO/MTP-24 APC interface for high-density connectivity
- QSFP-DD compact pluggable design
- Supports 2×100G Ethernet and InfiniBand
Table of Contents
Description
The 200G QSFP-DD PSM8 Optical Transceiver Module is a high-performance parallel optical solution designed for 200Gbps Ethernet and high-speed data center connectivity over single-mode fiber. Utilizing eight independent 1310nm DFB laser transmitters and eight-channel PIN receiver arrays, the module provides reliable 200Gbps transmission over distances up to 10km through G.652 SMF. With an MPO/MTP-24 APC optical interface, it enables efficient multi-fiber connectivity for high-density optical network deployments.
Built in the QSFP-DD pluggable form factor, this transceiver combines high bandwidth capacity, compact design, and low power consumption for next-generation networking applications. Integrated TX/RX CDR circuits with bypass capability enhance signal quality and provide flexible deployment options across different network architectures. Supporting 2×100G Ethernet connectivity and InfiniBand applications, it is an ideal solution for cloud data centers, enterprise networks, and high-performance computing environments requiring long-reach 200G optical transmission.
Specification
| Form Factor | QSFP-DD |
|---|---|
| Data Rate | 200Gbps |
| Application Standard | 2×100G Ethernet / InfiniBand |
| Fiber Type | Single-Mode Fiber (SMF) |
| Fiber Compatibility | G.652 SMF |
| Maximum Distance | Up to 10km |
| Wavelength | 1310nm |
| Optical Technology | Parallel Single Mode (PSM8) |
| Optical Configuration | 8-Lane Parallel Optical Transmission |
| Electrical Interface | 8 × 25Gb/s NRZ (Supports 8 × 10Gb/s) |
| Modulation Format | NRZ |
| Transmitter Type | 1310nm DFB Laser Array |
| Receiver Type | PIN Photodetector Array |
| Optical Connector | MPO/MTP-24 APC |
| CDR Function | Integrated TX/RX CDR with Bypass Support |
| Power Supply | Single +3.3V |
| Maximum Power Consumption | ≤6.5W |
| Digital Monitoring | DDM Supported |
| Hot Plug Capability | Yes |
Features
- 200Gbps aggregate data rate
- Transmission distance up to 10km
- Supports G.652 single-mode fiber
- Eight 1310nm DFB laser transmitters
- Eight-channel PIN receiver array
- Parallel single-mode fiber transmission
- MPO/MTP-24 APC optical interface
- QSFP-DD pluggable form factor
- TX/RX CDR with bypass capability
- Supports 2×100G Ethernet connectivity
- Supports InfiniBand applications
- Designed for high-density optical networks
Applications
- 200G Ethernet data center networks
- Cloud data centers
- High-performance computing networks
- InfiniBand interconnects
- Enterprise network infrastructure
- 2×100G Ethernet connections
- Long-reach data center interconnects
- High-density parallel fiber deployments
FAQs
What is the maximum transmission distance?
The 200G QSFP-DD PSM8 transceiver supports transmission distances of up to 10km over G.652 single-mode fiber.
What optical interface does it use?
The module uses an MPO/MTP-24 APC optical interface for high-density parallel fiber connectivity.
How does PSM8 achieve 200Gbps transmission?
The module uses eight independent optical channels, with each channel carrying 25Gbps, to provide an aggregate 200Gbps transmission capacity.
Does it support 2×100G connectivity?
Yes. The module can be used for 2×100G Ethernet connectivity, making it suitable for network architectures that require two independent 100G connections.
Can it be used for InfiniBand networks?
Yes. The module supports InfiniBand applications and is suitable for high-performance computing and data center environments requiring high-bandwidth, long-reach optical connectivity.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
