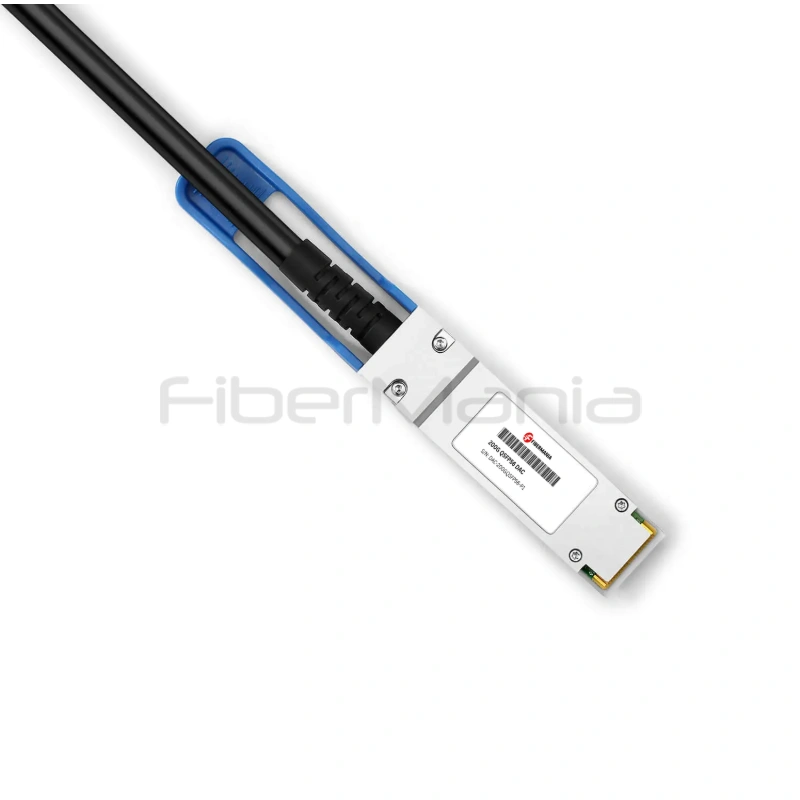

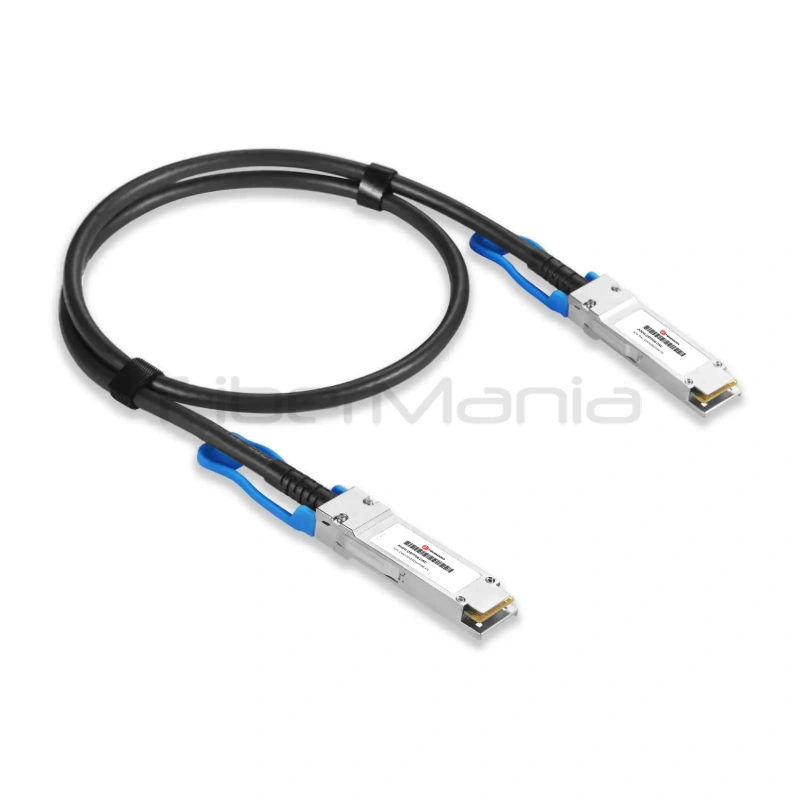

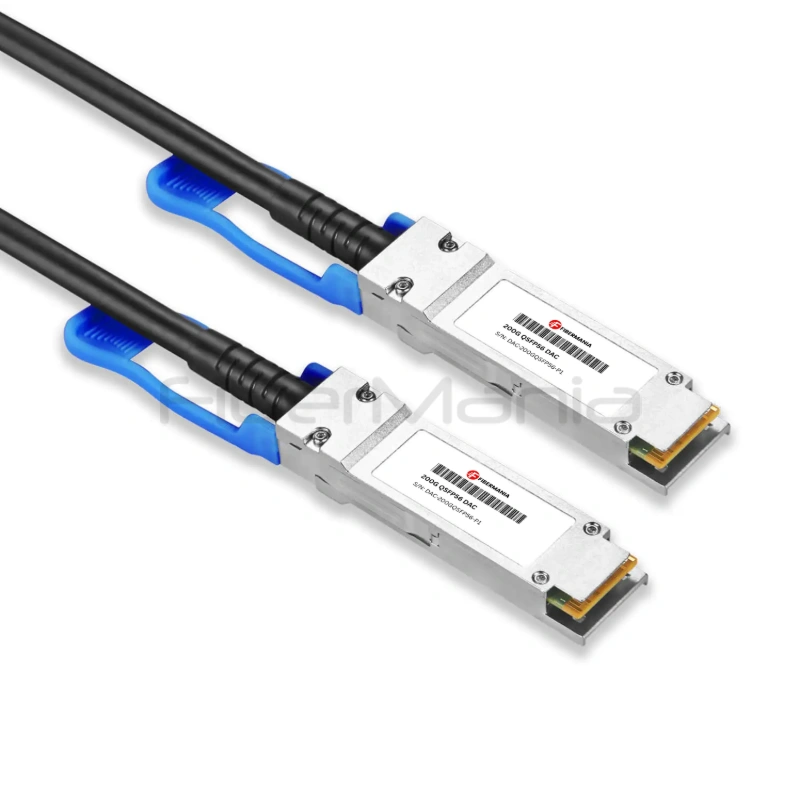

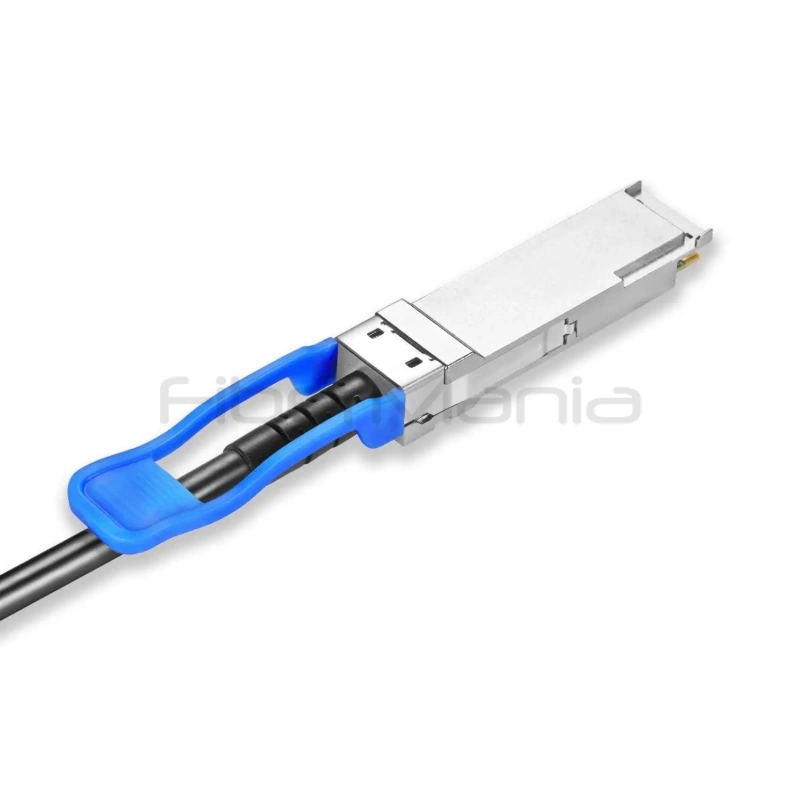

200G QSFP56 Passive DAC Cable, 26/30 AWG Twinax Copper, Up to 5m

Features

• 200G QSFP56 to QSFP56 connectivity
• Passive Direct Attach Copper design
• Twinax copper construction
• Four PAM4 transmission channels
• Up to 56Gbps per channel
• 200G-class aggregate bandwidth
• Eight differential copper pairs
• Optimized for low insertion loss and crosstalk
• Low power consumption
• Low latency
• 26 AWG and 30 AWG options
• Lengths up to 5m

Applications

• 200G Ethernet
• InfiniBand 4x HDR
• Data center networks
• High-performance computing
• Switch-to-switch connections
• Switch-to-server connectivity
• High-density rack interconnects
• Telecommunications networks
• Short-distance 200G connections

FAQ

What is the maximum data rate?

The cable supports 200G-class connectivity using four PAM4 channels, with each channel supporting up to 56Gbps.

Is this cable passive or active?

It is a passive Direct Attach Copper Cable, requiring no active optical components and providing low power consumption for short-distance connections.

What cable gauges are available?

The cable is available in both 26 AWG and 30 AWG configurations to accommodate different cable-management and installation requirements.

What is the maximum cable length?

Lengths are available up to 5 meters, making the cable suitable for short-distance connections within and between data center racks.

What applications is it designed for?

The cable is designed for 200Gbps Ethernet and InfiniBand 4x HDR environments, including data centers, HPC systems, high-performance networking, and telecommunications infrastructure.
