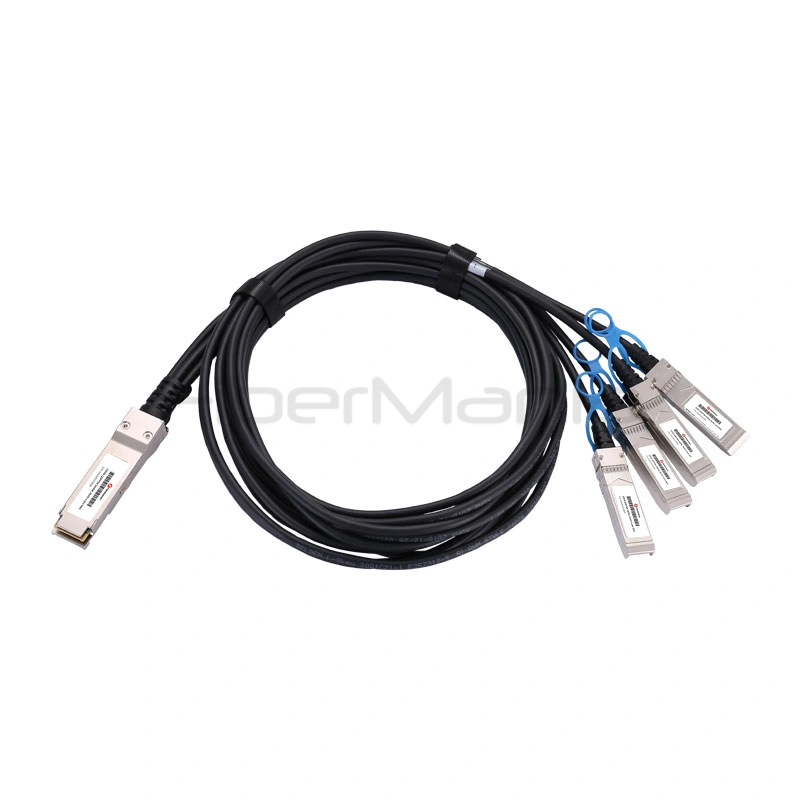

200G QSFP56 to 4×SFP56 Direct Attach Copper Cable (DAC)

Features

• 200G QSFP56 to 4×50G SFP56 breakout configuration
• Passive Direct Attach Copper design
• Twinax copper construction
• PAM4 signaling
• Four independent 50G SFP56 connections
• Low power consumption
• Low latency
• Optimized for low insertion loss and crosstalk
• Straight-through and breakout configurations available
• Cost-effective short-distance connectivity
• High-density rack connectivity

Applications

• 200G to 4×50G Ethernet breakout
• Data center networks
• High-performance computing
• InfiniBand HDR networks
• Switch-to-server connectivity
• Switch-to-network adapter connections
• 200G switch port breakout
• High-density rack interconnects
• 50G network migration

FAQ

What is the breakout configuration?

The cable connects one 200G QSFP56 port to four independent 50G SFP56 ports, allowing a 200G interface to connect directly with multiple 50G network devices.

Is this cable passive?

Yes. It is a passive Direct Attach Copper Cable that uses twinax copper conductors, providing low power consumption and cost-effective short-distance connectivity.

What signaling technology does it use?

The cable uses PAM4 signaling to support high-speed 200G-class connectivity and four independent 50G SFP56 links.

What equipment can it connect?

It can connect 200G QSFP56 ports on switches, servers, or network adapters to four 50G SFP56 ports on compatible network equipment. It is also suitable for compatible InfiniBand HDR environments.

Are different cable configurations available?

Yes. Straight-through and breakout configurations are available to accommodate different rack layouts and network architectures.
