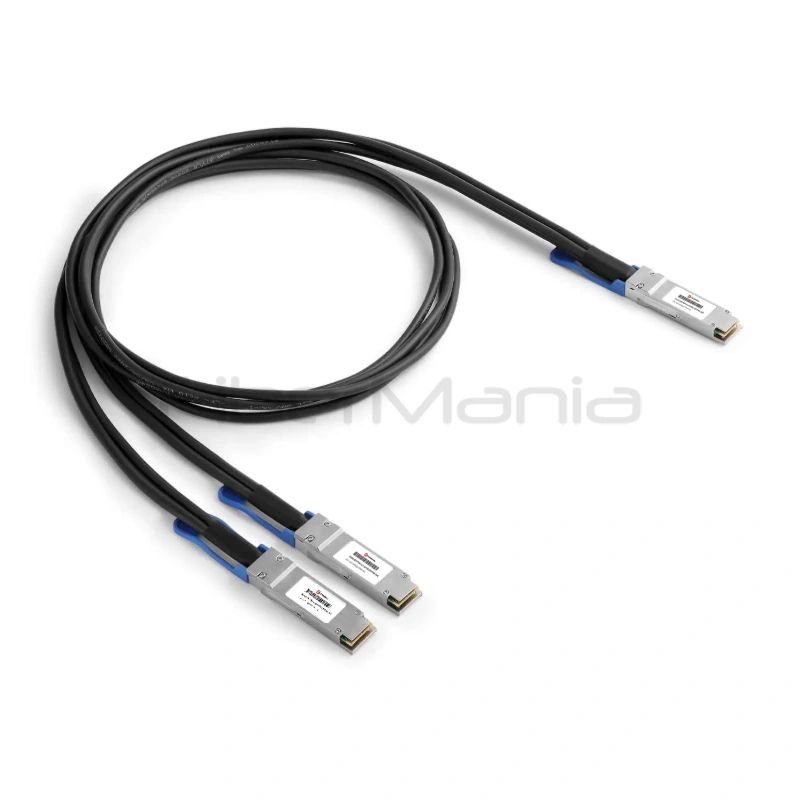

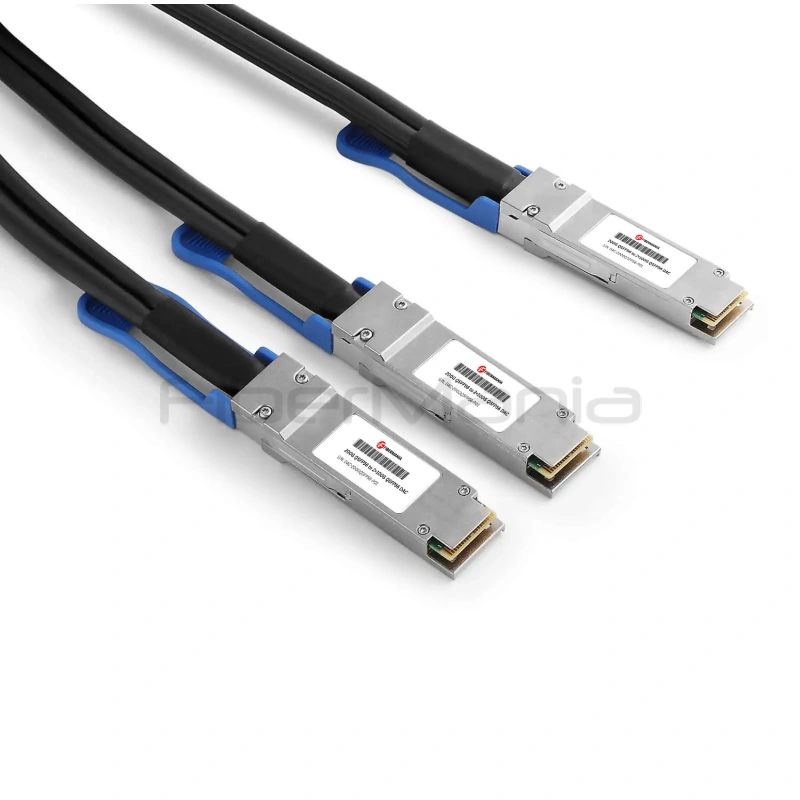

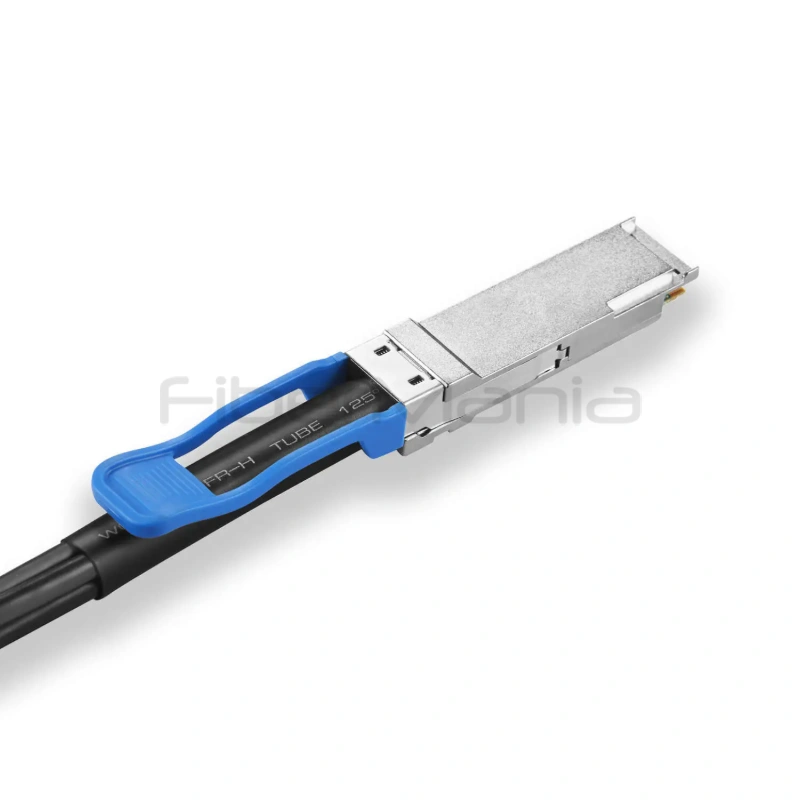

200G QSFP56 to 2×100G QSFP56 Passive DAC Breakout Cable, Twinax Copper

Features

• 200G QSFP56 to 2×100G QSFP56 breakout configuration
• Passive twinax copper construction
• Four PAM4 transmission channels
• Up to 56Gbps per channel
• 200G-class aggregate bandwidth
• Eight differential copper pairs
• Optimized for low insertion loss and crosstalk
• Low power consumption
• Available in 26 AWG and 30 AWG
• Lengths up to 3m
• Cost-effective short-distance connectivity
• Designed for high-density network environments

Applications

• 200G to 2×100G Ethernet breakout
• Data center networks
• HPC clusters
• Storage networks
• Switch-to-switch connections
• Switch-to-server connectivity
• High-density rack interconnects
• 200G-to-100G network migration

FAQ

What is the breakout configuration?

The cable connects one 200G QSFP56 port to two independent 100G QSFP56 ports, allowing a 200G uplink to connect directly with two 100G interfaces.

Is this DAC active or passive?

It is a passive Direct Attach Copper Cable using twinax copper conductors, which helps minimize power consumption and provides a cost-effective solution for short-distance connections.

What signaling technology does it use?

The cable uses four PAM4 transmission channels, with each channel supporting up to 56Gbps for 200G-class aggregate connectivity.

What cable gauges and lengths are available?

The cable is available in 26 AWG and 30 AWG configurations, with lengths up to 3 meters for short-distance data center and high-density rack applications.

Why is the eight-pair copper design important?

The eight differential copper pairs are optimized for high-speed PAM4 transmission, helping control insertion loss and crosstalk to maintain reliable signal integrity at 200G data rates.
