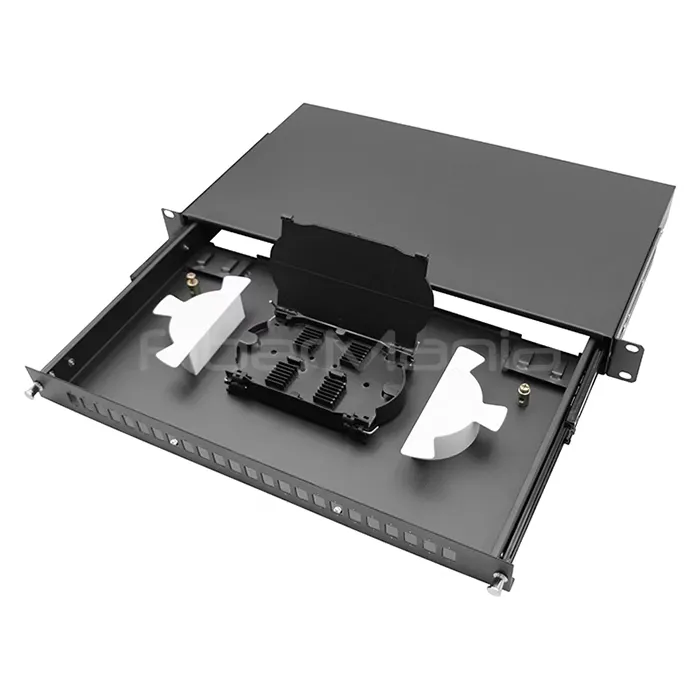

1U Sliding Fiber Optic Patch Panel 12-Port 19/23-inch Rack Mount Steel Housing
Categories:
Product Highlights:
-
1U sliding fiber optic patch panel with 12-port capacity for efficient fiber management.
-
Compatible with 19-inch and 23-inch racks, available empty or fully loaded.
-
Durable 1.2mm steel construction ensures reliable performance in network environments.
-
FiberMania also provides OEM packaging and customization services to meet project-specific requirements.
Table of Contents
Description
The FPP-12SCB-1U-S 1U Sliding Fiber Optic Patch Panel is designed to deliver efficient and organized fiber management in high-density network environments. With a 12-port capacity, it supports fiber termination, splicing, and patching in a compact 1U form factor. The sliding tray design allows smooth pull-out access, making installation, inspection, and maintenance simple without disturbing existing fiber connections.
Constructed from 1.2mm high-quality steel, this patch panel ensures durability and long-term protection for fiber optic components. It is compatible with both 19-inch and 23-inch standard racks, offering flexibility for various deployment scenarios. The panel can be supplied either empty or fully loaded with adapters and pigtails, allowing users to customize configurations based on specific project requirements.
With dimensions of H 1.75”, W 17”, D 10”, this patch panel is ideal for space-saving installations in data centers, telecom rooms, and enterprise networks. Its optimized internal structure supports proper cable routing and bend radius control, ensuring stable optical performance and efficient fiber management.
Specification
| Type | 1U Unloaded Patch Panel |
|---|---|
| Description | Unloaded sliding panel |
| Application | Data Center, Fiber Distribution |
| Ports | 12 Ports |
| Fiber Type | — |
| Dimensions (mm) | H44×W430×D254 |
| Material | 1.2mm Steel |
| Color | Black |
| Ingress Protection | — |
| Temperature Range | — |
| Mounting Type | Rack 19"/23" |
| Cable OD | — |
| Crush Resistance | — |
| Tensile Strength | — |
| Fire Protection | — |
| UV Resistance | — |
| Max Capacity | 12 Ports |
| Standard Compliance | 19"/23" Rack Standard |
Features
-
1U sliding tray design for easy access and maintenance
-
12-port capacity for efficient fiber management
-
Compatible with 19-inch and 23-inch rack systems
-
Durable 1.2mm steel construction for long-term reliability
-
Available empty or preloaded with adapters and pigtails
-
Optimized internal layout for cable routing and fiber protection
-
Supports splicing, termination, and patching applications
Applications
-
Data center fiber management and distribution
-
Telecommunications and network infrastructure
-
Enterprise structured cabling systems
-
FTTH and FTTx deployments
-
Rack-mounted fiber termination and patching
FAQs
Q1: Can this patch panel fit both 19-inch and 23-inch racks?
Yes, it is designed to be compatible with both 19-inch and 23-inch rack systems.
Q2: Is the panel available preloaded with adapters and pigtails?
Yes, it can be ordered either empty or fully loaded based on project requirements.
Q3: What material is used for the panel construction?
It is made from 1.2mm high-quality steel for durability and protection.
Q4: Does the sliding design help with maintenance?
Yes, the slide-out tray allows easy access without disturbing existing fiber connections.
Q5: Are OEM and customization options available?
Yes, FiberMania offers OEM packaging and customization services including configuration, branding, and accessories.
