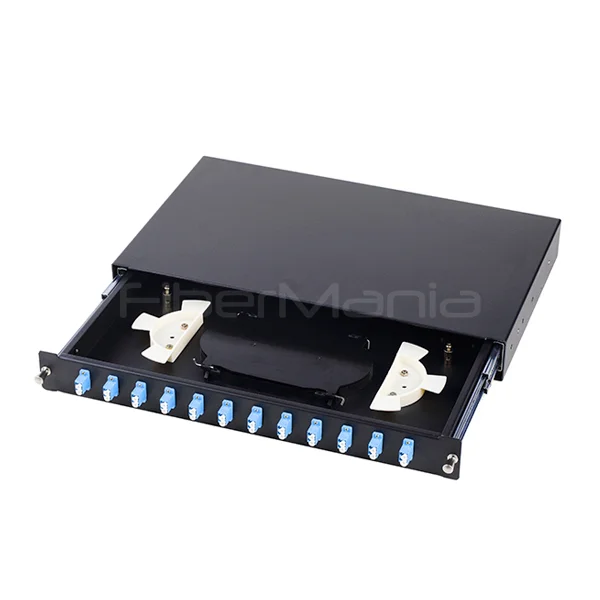

Sliding Fiber Optic Patch Panel 1U 19” , 12 LC Duplex OS2 Single Mode Adapters
Categories:
Product Highlights:
This 1U 19” sliding fiber optic patch panel is preloaded with 12 LC duplex OS2 single-mode adapters, offering high reliability and easy front-access operation. The slide-out tray enables convenient installation, maintenance, and fiber management in rack environments.
Table of Contents
Description
The 1U 19” Sliding Fiber Optic Patch Panel loaded with 12 LC Duplex OS2 Single Mode Adapters is engineered to provide efficient fiber distribution in high-density rack environments. Its slide-out tray design allows technicians to access splicing and patching areas from the front, simplifying installation and routine maintenance.
Constructed from 1.2mm steel, the panel offers strong structural integrity and smooth sliding performance. Preloaded with OS2 single-mode adapters, it supports long-distance and high-bandwidth applications in telecom and enterprise networks.
Specification
| Rack Size | 19'' standard (23'' optional) |
|---|---|
| Height | 1.75 inch |
| Width | 17 inch |
| Depth | 10 inch |
| Color | Black |
| Capacity | 12 LC duplex OS2 ports |
| Adapter Type | LC Duplex OS2 Single Mode |
| Material | 1.2mm steel |
| Mounting | Rack-mounted |
| Configuration | Loaded with adapters (empty optional) |
| Certification | ISO9001:2008, RoHS |
| MOQ | 10 Pieces |
| Lead Time | 10 days |
| Price Term | FOB Shenzhen |
| OEM/ODM | Supported |
Features
-
Slide-out tray design for convenient access and cable handling
-
Preloaded with 12 LC duplex OS2 single-mode adapters
-
Optional empty or fully loaded configurations
-
Compatible with standard 19” or 23” rack mounting
-
Durable 1.2mm steel housing with black coating
-
Supports OEM customization including logo and packaging
Applications
-
Data center fiber distribution frames
-
Telecom and ISP central offices
-
Backbone and long-distance OS2 single-mode networks
-
Enterprise structured cabling systems
-
Server rooms and ODF rack installations
Frequently Asked Questions (FAQs)
Q1: What makes the sliding design beneficial?
The slide-out tray allows technicians to access internal components easily without removing the panel from the rack.
Q2: Is this panel suitable for OS2 single-mode applications?
Yes. It comes preloaded with LC duplex OS2 adapters designed for long-distance single-mode networks.
Q3: Can the panel be purchased empty?
Yes. Both empty and fully loaded configurations are available.
Q4: What material is the chassis made from?
It uses 1.2mm steel for improved strength and durability.
Q5: Does it fit all 19” racks?
Yes. It meets 19” EIA-standard rack specifications and also supports 23” mounting with universal hardware.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
