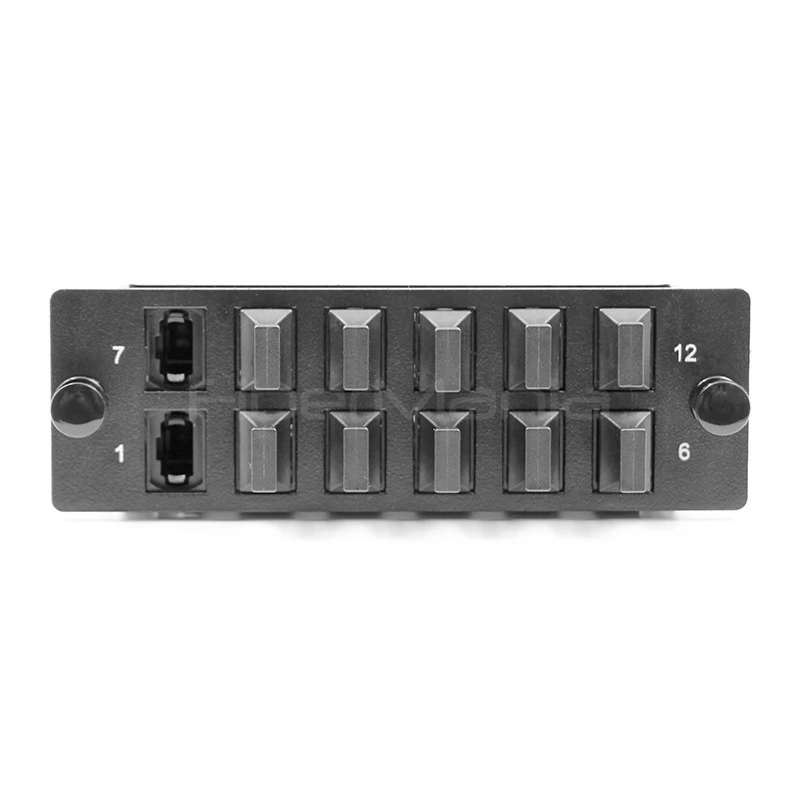

12-Port MTP Fiber Adapter Panel Type A Key Up to Key Down for OS2 OM3 OM4 Fiber Networks

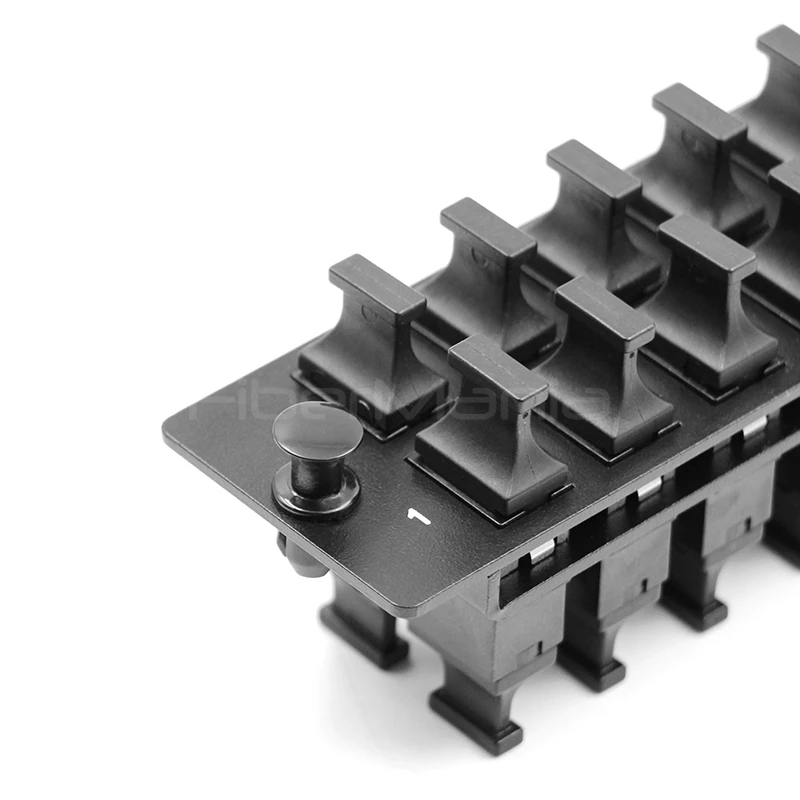

12-Port MTP Fiber Adapter Panel Type A Key Up to Key Down - Image 2

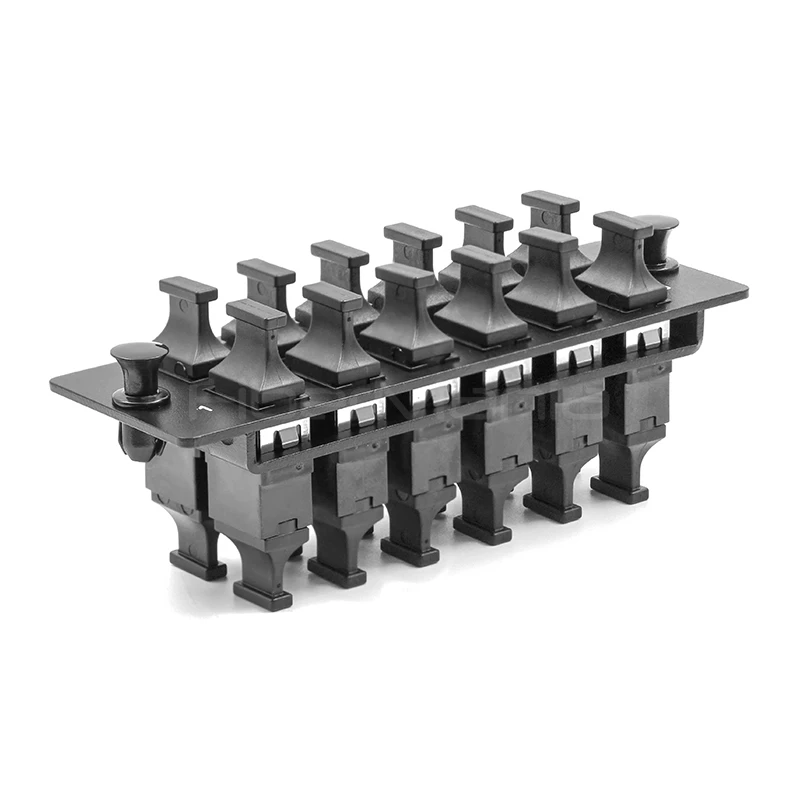

12-Port MTP Fiber Adapter Panel Type A Key Up to Key Down - Image 3

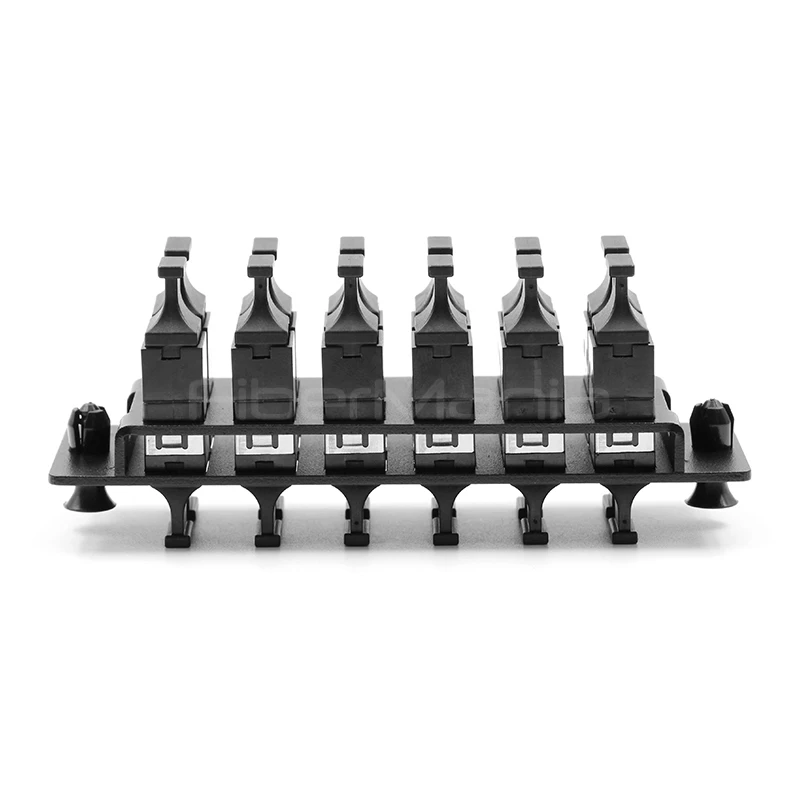

12-Port MTP Fiber Adapter Panel Type A Key Up to Key Down

Name: 12-Port MTP Fiber Adapter Panel Type A OS2 OM3 OM4
SKU: FAP-MTP12L

P/N: FAP-MTP12L

Categories:

MPO/MTP Adapter Panels

Product Highlights:

12-port high-density MTP fiber adapter panel
Supports OS2, OM3, and OM4 fiber networks
Type A polarity with key-up to key-down orientation
Compatible with MTP-8, MTP-12, and MTP-24 connectors
Durable powder-coated steel construction
Ideal for data centers and structured cabling

Description

The 12-Port MTP Fiber Adapter Panel is a high-density fiber connectivity solution designed for data centers, enterprise networks, and structured cabling systems. Pre-loaded with 12 MTP adapters, it supports OS2 single mode as well as OM3 and OM4 multimode fiber, providing a flexible platform for various optical network architectures. Featuring Type A polarity with key-up to key-down adapter orientation, the panel ensures proper fiber alignment and reliable polarity management. Its durable powder-coated steel construction offers long-term performance in high-density environments while enabling quick installation, easy maintenance, and efficient moves, adds, and changes. Compatible with standard fiber enclosures, it is well suited for backbone cabling, cross-connects, and high-speed network deployments.

Specification

Number of Ports	12
Adapter Type	MTP Adapter
Connector Compatibility	MTP-8, MTP-12, MTP-24
Fiber Mode	OS2 Single Mode, OM3 Multimode, OM4 Multimode
Polarity	Type A
Key Orientation	Key Up to Key Down (Opposed)
Interface Configuration	Male-to-Female MTP Connection
Panel Material	Powder-Coated Steel
Compliance	IEC 61754-7, TIA-604-5 (FOCIS-5)
Dimensions	35 × 109 mm (1.38 × 4.29 in)
Operating Temperature	-25°C to +50°C
Installation	Compatible with Standard Fiber Enclosures

Features

High-density panel with 12 MTP adapter ports
Supports OS2 single mode and OM3/OM4 multimode fiber
Compatible with MTP-8, MTP-12, and MTP-24 connectors
Type A polarity for standardized fiber management
Key-up to key-down adapter orientation for correct alignment
Male-to-female MTP interface configuration
Powder-coated steel construction for durability
Fits standard fiber optic enclosure systems
Enables fast installation and simplified cable management
Complies with IEC 61754-7 and TIA-604-5 (FOCIS-5)

Applications

Data center backbone cabling
High-density fiber distribution systems
Enterprise network infrastructure
Fiber cross-connect and interconnect applications
Structured cabling systems
Telecommunications networks
Cloud computing facilities
Storage area networks (SAN)

FAQ

What fiber types does this MTP adapter panel support?

The panel supports OS2 single mode fiber as well as OM3 and OM4 multimode fiber, making it suitable for both long-distance and high-speed short-distance optical networks.

What connector types are compatible with this panel?

The installed adapters are compatible with MTP-8, MTP-12, and MTP-24 connectors, allowing flexible deployment in different MTP cabling systems.

What does Type A polarity with key-up to key-down orientation mean?

Type A polarity maintains a straight-through fiber arrangement, while the key-up to key-down adapter orientation ensures proper connector alignment and reliable fiber mating.

Is the panel compatible with standard fiber enclosures?

Yes. The panel is designed to fit compatible fiber optic enclosures, enabling quick installation, convenient maintenance, and easy future expansion.

Can the adapter brand be customized?

Yes. The panel is available with genuine US Conec® MTP adapters or equivalent high-quality alternatives based on project requirements and OEM needs.
