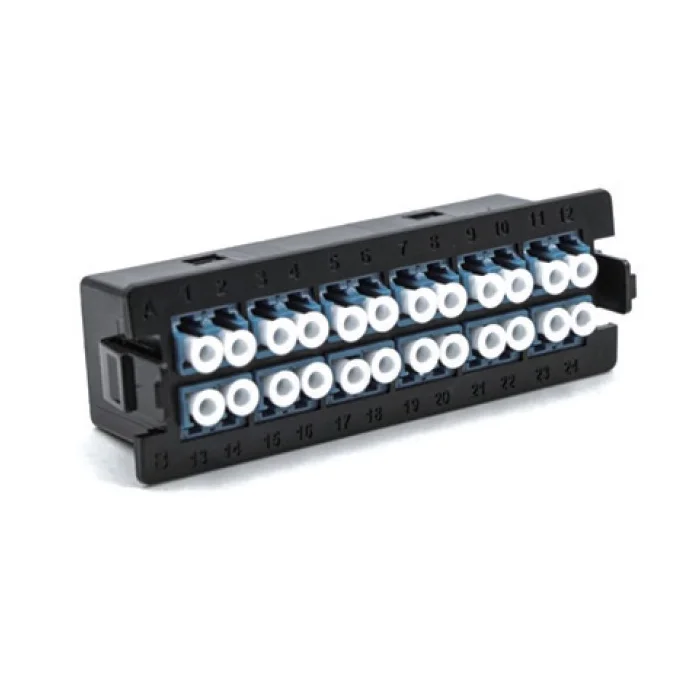

12 Duplex LC Adapter Panel Snap-In Clip | Ultra Compact High Density Fiber Module
Categories:
Product Highlights:
- Ultra-compact 12 duplex LC adapter panel supporting 24 fiber connections
- Snap-in clip design ensures quick installation and secure mounting
- High-density solution for scalable and efficient fiber networks
- Supported by FiberMania OEM and private label services
Table of Contents
Description
The 12 duplex LC adapter panel is an ultra-compact fiber connectivity module designed to maximize port density in modern data center and structured cabling environments. With 12 duplex LC ports supporting up to 24 fiber connections, this module provides a high-capacity solution within a minimized footprint, making it ideal for installations where space efficiency is essential.
Featuring a snap-in clip mounting design, the panel enables fast, tool-less installation into MP-HD modular systems while ensuring secure and stable positioning. This design improves deployment efficiency and simplifies maintenance or replacement, reducing downtime in high-density network environments.
Built with precision engineering and durable materials, the panel ensures stable optical performance and long-term reliability. Fully compatible with standard LC patch cords, it supports high-speed fiber networks and offers a scalable solution for growing infrastructure demands.
Specification
| Product Type | LC Adapter Panel (MP-HD Series) |
|---|---|
| Port Quantity | 12 Duplex LC (24 Fibers) |
| Connector Type | LC |
| Adapter Type | UPC / APC |
| Installation | Snap-In Clip (Tool-less) |
| Design Feature | Ultra Compact High Density |
| Material | High-strength Plastic / Metal |
| Application | High-density fiber connectivity |
| Compatibility | LC Patch Cords |
| Operating Temperature | -20°C to +70°C |
Features
- 12 duplex LC ports supporting up to 24 fiber connections
- Snap-in clip design for quick, tool-less installation
- Secure locking for stable mounting in modular systems
- Ultra-compact structure for maximum port density
- Compatible with standard LC connectors
- Optimized cable management for organized routing
- Durable construction for long-term performance
- Customizable panel configuration and labeling
Applications
- High-density data centers
- Structured cabling systems
- Modular fiber patch panels
- Enterprise and campus networks
- Cloud and hyperscale environments
- Telecom and server room installations
FAQ
Q1: How many fibers does this panel support?
A: It supports up to 24 fibers through 12 duplex LC ports.
Q2: What is the benefit of the snap-in clip design?
A: It allows fast, tool-less installation and ensures the panel is securely fixed within the enclosure.
Q3: Is this panel compatible with standard LC patch cords?
A: Yes, it is fully compatible with standard LC connectors.
Q4: Can the panel be customized?
A: Yes, customization options include labeling, panel structure, and configuration to meet OEM requirements.
Q5: What environments is this panel best suited for?
A: It is ideal for high-density data centers and structured cabling systems requiring compact and scalable fiber connectivity.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
