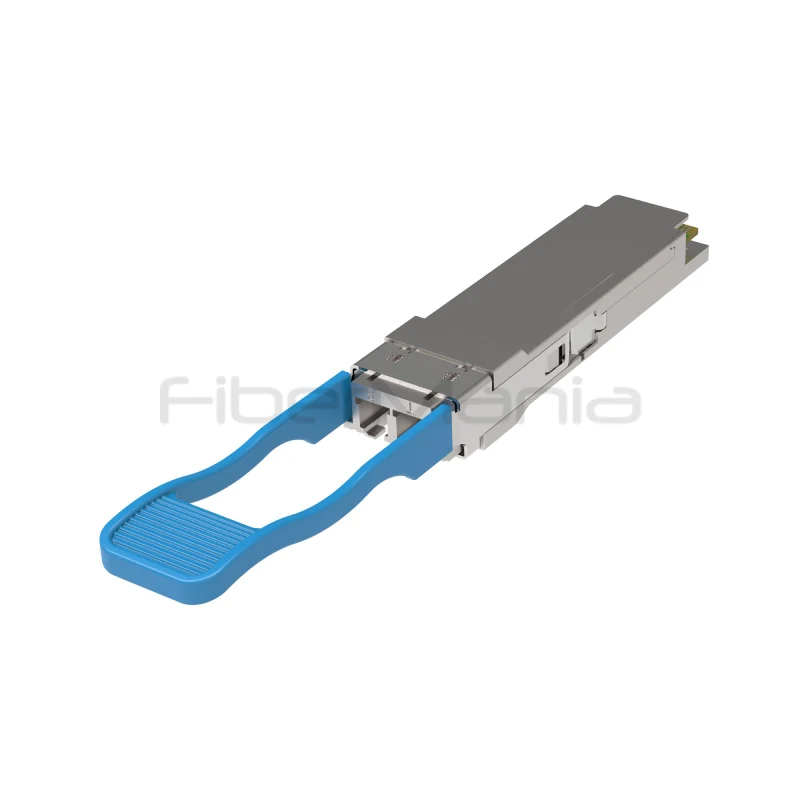

100G QSFP28 LR1 Single Lambda 10KM LC optical transceiver

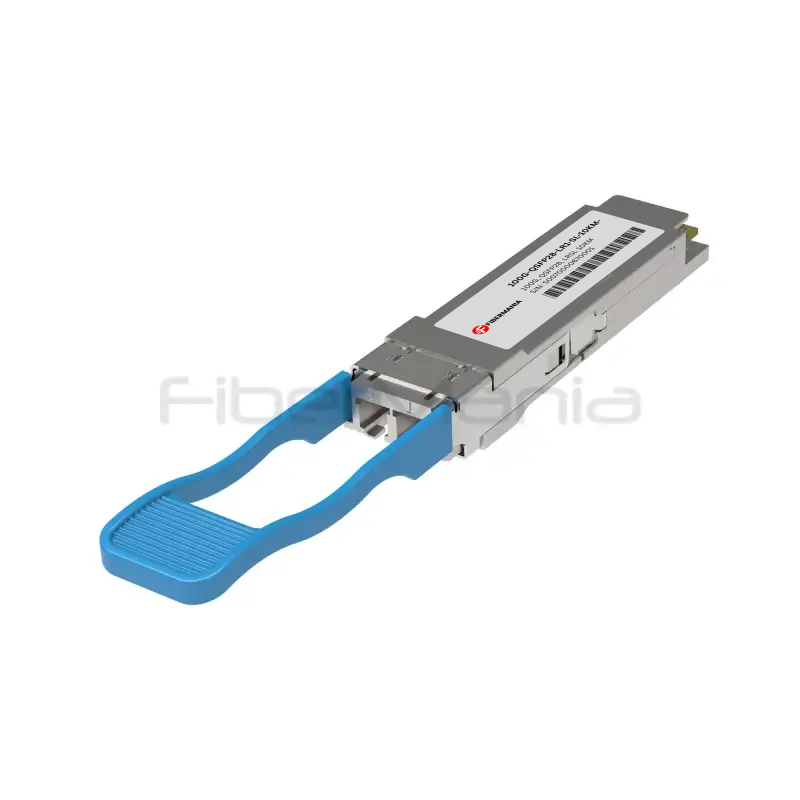

100G QSFP28 LR1 Single Lambda Optical Transceiver, 10KM, Single-Mode Fiber, LC

Name: 100G QSFP28 LR1 Single Lambda Optical Transceiver
SKU: 100G-QSFP28-LR1-SL-10KM-LC

P/N: 100G-QSFP28-LR1-SL-10KM-LC

Categories:

100G QSFP28

Product Highlights:

100G QSFP28 LR1 Single Lambda optical transceiver for long-reach single-mode fiber networks
Supports 100Gbps data rate over 10km OS2 SMF
Hot-swappable QSFP28 with LC duplex connector and DDM monitoring
FiberMania provides OEM, ODM, and private-label services for flexible customization and scalable production

Description

The 100G QSFP28 LR1 Single Lambda 10KM LC optical transceiver is a high-performance, single-wavelength module designed for modern data center interconnects (DCI) and 5G transport networks. Utilizing a single-lambda architecture compliant with IEEE 802.3cu, this module simplifies network deployments by reducing fiber count compared to traditional LR4 solutions, while providing reliable 10km transmission over OS2 single-mode fiber.

This hot-swappable QSFP28 module features an LC duplex connector and operates over a 4×25G electrical interface, delivering a total data rate of 100Gbps. Digital Diagnostic Monitoring (DDM) allows real-time tracking of key parameters, including transmit/receive power, bias current, and temperature, ensuring stable operation and proactive network management.

Designed for commercial-grade environments (0–70°C), this module is pre-validated for compatibility with major switch platforms and consumes a maximum of 4.5W of power. Fully compliant with QSFP28 MSA, 100G Lambda MSA LR specifications, and RoHS standards, it provides a robust, energy-efficient, and future-proof solution for high-speed, long-reach optical links.

Specification

Form Factor	QSFP28
Data Rate	100Gbps (4×25G)
Wavelength	Single Lambda, IEEE 802.3cu
Transmission Distance	Up to 10km on OS2 SMF with FEC
Fiber Type	Single-Mode Fiber (OS2)
Connector	Duplex LC
Electrical Interface	4×25G (OIF CEI-28G-VSR)
Diagnostic Function	Digital Diagnostic Monitoring (DDM)
Maximum Power	4.5W
Operating Temperature	0–70°C
Compliance	QSFP28 MSA, 100G Lambda LR Spec, RoHS

Features

Supports 100Gbps data rate via 4×25G channels
QSFP28 MSA and 100G Lambda LR specification compliant
Single lambda transmission over single-mode fiber
Hot-swappable QSFP28 form factor with duplex LC connector
Up to 10km reach on OS2 SMF with FEC
Digital Diagnostic Monitoring (DDM) for real-time performance tracking
Maximum power consumption: 4.5W
Operating temperature: 0–70°C
RoHS compliant

Applications

Data center interconnects (DCI)
5G transport networks
Enterprise long-reach backbone networks
Cloud and hyperscale networking environments
Migration from 25G/40G infrastructure to 100G

FAQ

What is the maximum transmission distance?
Up to 10km over OS2 single-mode fiber with FEC support.

What type of architecture does this transceiver use?
Single Lambda, simplifying fiber deployment compared to LR4 modules.

Does it support real-time monitoring?
Yes, Digital Diagnostic Monitoring (DDM) tracks Tx/Rx power, temperature, and bias current.

Which form factor does it use?
Hot-swappable QSFP28 with LC duplex connector.

Can FiberMania provide OEM or private-label versions?
Yes, FiberMania offers OEM, ODM, and private-label services including custom labeling, wavelength selection, and performance optimization.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
