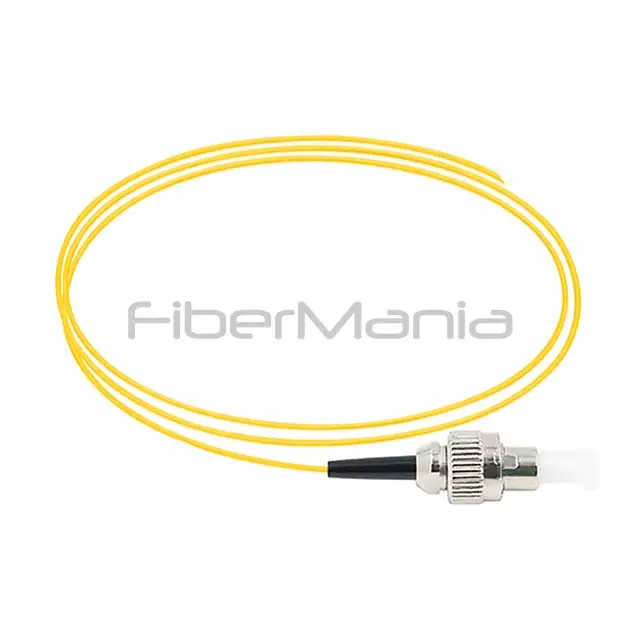

ST/UPC Simplex Fiber Optic Pigtail, Single Mode 9/125um, Yellow Jacket, 0.9mm, 1M

Name: ST/UPC Simplex Fiber Optic Pigtail SM 9/125um | FiberMania
SKU: FP-1STSM9

P/N: FP-1STSM9

Categories:

ST Pigtails

Product Highlights:

Single-mode ST/UPC simplex fiber optic pigtail with 0.9mm yellow jacket
Low insertion loss and high return loss for reliable optical performance
Pre-terminated on one end for fast fusion splicing and easy installation
FiberMania offers full OEM/ODM customization including length, connector type, and packaging options

Description

The ST/UPC Simplex Fiber Optic Pigtail from FiberMania is a high-quality single-mode fiber solution for precise fusion splicing in patch panels or fiber optic distribution frames. Each fiber is factory-terminated on one end with an ST/UPC connector, while the other end is left bare for easy splicing. This design eliminates the need for field terminations, saving installation time and ensuring consistent optical performance.

Manufactured with a 0.9mm tight buffer and a yellow jacket for easy identification, this pigtail ensures reliable performance and durability in both indoor and outdoor network deployments. FiberMania offers a full line of fiber pigtails ranging from simplex to duplex, and multi-strand versions with 4, 6, 8, 12, 24, and 48 fibers, making it versatile for any project requirement. Each strand is packed securely to prevent damage during transportation and handling.

Specification

Product Type	Simplex Pigtail
Fiber Mode / Type	SM 9/125µm
Number of Fibers / Cores	1
Connector Type	ST/UPC
Cable Length	1 m
Jacket Type & Color	Yellow
Cable Diameter	0.9 mm
Duplex / Simplex	Simplex
Transmission Speed	10G
Operating Environment	Indoor
Standards Compliance	ISO/IEC 11801, TIA/EIA, RoHS
Features	Simplex SM

Features

Low insertion loss (≤0.3 dB PC, ≤0.2 dB APC/UPC) and minimal back reflection
High durability and excellent exchangeability for reliable connections
Color-coded buffer for easy fiber identification
Meets ISO9001, RoHS, and Bellcore GR-326 standards
Available in various fiber counts: 4, 6, 8, 12, 24, etc.

Applications

CATV networks
LAN and WAN networks
Telecommunication infrastructure
Premise installations
Video and military active device termination

Q&A

Can this pigtail be used with multimode fiber?
- No, it is specifically designed for single-mode 9/125µm fiber.
What is the maximum recommended bend radius for this fiber?
- Typically, 30mm minimum bend radius for 0.9mm tight-buffered fibers.
Can the pigtail length be customized?
- Yes, FiberMania offers custom lengths up to customer specifications.
Is this pigtail suitable for harsh environments?
- Yes, the pigtail is durable and meets industry standards for reliability.
Are different connector types available?
- Yes, custom ST, SC, LC, or FC connectors can be provided on request
