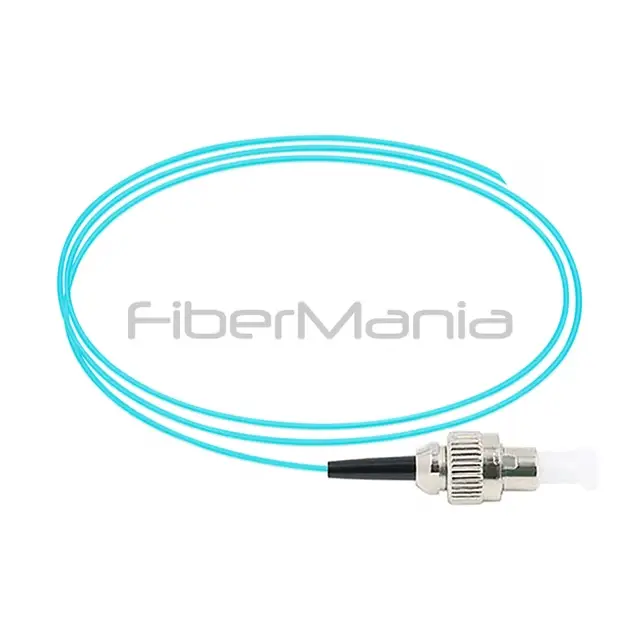

ST/UPC Simplex Fiber Optic Pigtail, OM3 50/125um, Aqua Jacket, 0.9mm, 1M

Name: ST/UPC Simplex Fiber Optic Pigtail OM3 50/125um | FiberMania
SKU: FP-1STMM3

P/N: FP-1STMM3

Categories:

ST Pigtails

Product Highlights:

High-quality ST/UPC OM3 50/125 μm simplex pigtail designed for low-loss fusion splicing in high-speed multimode networks.
Aqua 0.9 mm tight-buffer construction with stable optical performance suitable for 10G/40G/100G systems.
FiberMania offers full OEM/ODM support

Description

The ST/UPC simplex OM3 multimode pigtail from FiberMania is engineered for efficient fusion splicing and high-performance optical transmission in modern high-speed networks. Designed with a 50/125 μm OM3 fiber core and an aqua 0.9 mm tight-buffer jacket, this pigtail is ideal for integration into patch panels, distribution frames, and splice trays where reliable termination is required. One end is factory-terminated with an ST/UPC connector, offering precise alignment and stable optical characteristics, while the opposite end remains blunt for seamless fusion splicing to backbone or distribution cables.

Manufactured under strict quality control, each pigtail undergoes polishing, geometry inspection, and optical testing to ensure consistent low insertion loss and high return loss. The OM3 fiber construction supports higher bandwidth transmission and is suitable for 10G, 40G, and 100G multimode applications. FiberMania’s advanced automated production processes guarantee long-term durability, mechanical stability, and excellent repeatability under various installation environments.

This pigtail is suitable for data centers, enterprise networks, CATV systems, and telecom access solutions. Its color-coded jacket ensures easy multimode identification, simplifying deployment and maintenance in structured cabling systems.

Specification

Product Type	Simplex Pigtail
Fiber Mode / Type	MM 50/125µm OM3
Number of Fibers / Cores	1
Connector Type	ST/UPC
Cable Length	1 m
Jacket Type & Color	Aqua
Cable Diameter	0.9 mm
Duplex / Simplex	Simplex
Transmission Speed	10G
Operating Environment	Indoor
Standards Compliance	ISO/IEC 11801, TIA/EIA, RoHS
Features	Simplex OM3

Features

Low insertion loss and high return loss for stable OM3 multimode transmission
ST/UPC connector with high-precision polishing for consistent optical performance
Durable 0.9 mm aqua tight-buffer jacket for easy routing and identification
Excellent interchangeability and long-term mechanical reliability
Compliant with ISO9001, RoHS, and GR-326-Core requirements
Available in simplex, duplex, and multi-fiber configurations

Application

CATV distribution and signal transmission
LAN and WAN high-speed networks
Telecom access and backbone systems
Premise wiring and enterprise network installations
Optical testing and measurement equipment
Video, industrial, and military communication device termination

Q&A

Q1: Is this OM3 pigtail suitable for 10G and 40G multimode transmission?
A1: Yes, OM3 fiber supports high-bandwidth applications including 10G, 40G, and 100G within standard multimode link distances.

Q2: What is the typical fusion splice loss when using OM3 fiber?
A2: Under proper splicing conditions, typical splice loss is around 0.05–0.1 dB for OM3 multimode fiber.

Q3: Does the ST/UPC interface provide stable mechanical coupling?
A3: Yes, the ST bayonet mechanism ensures secure connections in environments requiring repeated insertion and removal.

Q4: Can this pigtail be used in high-temperature installations?
A4: The pigtail is designed for standard indoor environments; however, proper splice protection and routing ensure stable performance near moderate heat sources.

Q5: What is the advantage of the aqua jacket?
A5: Aqua is the standard color for OM3 multimode fiber, simplifying identification in structured cabling systems and reducing installation errors.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
