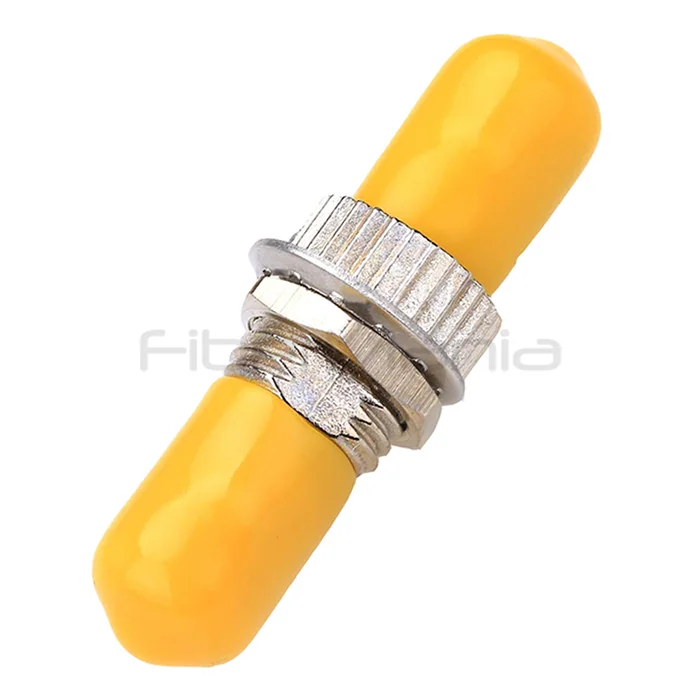

ST-ST Single Mode Simplex Metal Fiber Optic Adapter With Yellow Cap
Categories:
Product Highlights:
-
ST-ST single mode simplex metal fiber optic adapter with yellow cap
-
High precision phosphor bronze sleeve for low insertion loss
-
Durable PBT housing, flanged or flangeless options available
-
Ideal for data centers, LAN/WAN, FTTX, and telecom networks
-
FiberMania provides OEM/ODM customization, branding, and project-specific solutions
Table of Contents
Description
The ST-ST Single Mode Simplex Metal Fiber Optic Adapter with Yellow Cap is designed for precise fiber alignment and reliable optical performance in single-mode networks. Constructed with high-quality PBT housing and a phosphor bronze alignment sleeve, it ensures minimal insertion loss and excellent durability. The yellow cap provides visual identification and protection during shipping and installation.
This adapter is suitable for data centers, LAN/WAN networks, FTTX deployments, and telecommunication infrastructures. Its robust design withstands repeated insertions, high pulling forces, and a wide operating temperature range, making it ideal for both indoor and outdoor applications. FiberMania also offers customization and OEM/ODM services to meet project-specific needs.
Specification
| Connector Type | ST-ST |
|---|---|
| Fiber Type | Single Mode |
| Adapter Style | Simplex |
| Insertion Loss | ≤ 0.2 dB |
| Anti-Pulling Force | 200–600 g |
| Durability | ≥ 1000 mating cycles |
| Housing Material | PBT (UL 94V-0) |
| Sleeve Material | Phosphor Bronze |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +120°C |
| Compliance | RoHS, IEC, Telcordia GR-326, JIS |
Features
-
Single mode ST-ST simplex metal fiber optic adapter
-
High precision phosphor bronze alignment sleeve
-
Yellow protective cap included
-
Durable PBT housing, compliant with RoHS
-
Low insertion loss, high repeatability
-
Flanged and flangeless options available
-
OEM/ODM customization available
Applications
-
Data centers
-
Telecommunication networks
-
Premise installations
-
LAN and WAN networks
-
FTTX deployments
-
Broadband networks
FAQ
Q: What is the purpose of the yellow cap?
A: The yellow cap protects the fiber endface during shipping and handling and provides easy visual identification.
Q: Can this adapter be used outdoors?
A: Yes, the robust PBT housing and wide operating temperature range allow for both indoor and controlled outdoor use.
Q: What is the maximum insertion loss?
A: The adapter ensures an insertion loss of ≤0.2 dB for reliable optical performance.
Q: Is this adapter RoHS compliant?
A: Yes, all materials are compliant with RoHS standards.
Q: Can I request custom colors or branding?
A: Yes, FiberMania offers OEM/ODM services including color, logo, and packaging customization.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
