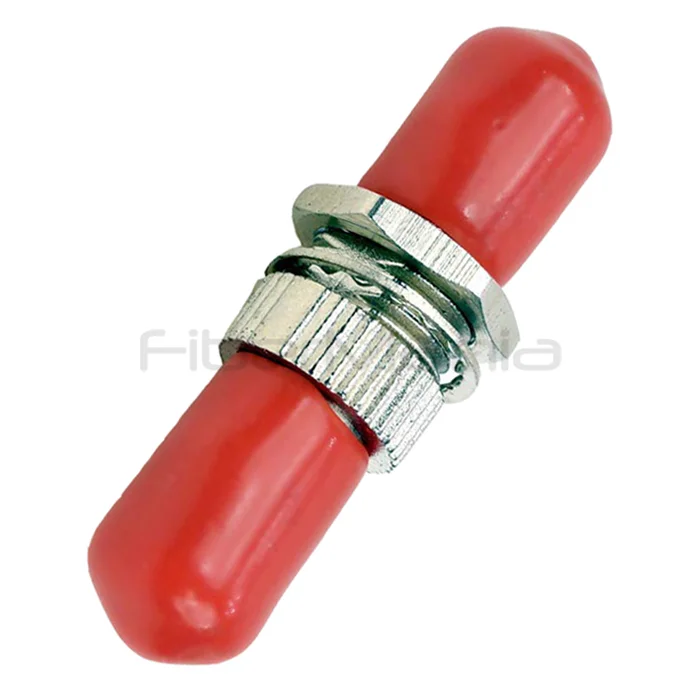

ST-ST Multimode Simplex Metal Fiber Optic Adapter
Categories:
Product Highlights:
-
ST-ST simplex metal adapter with red cap for multimode identification.
-
Durable PBT housing and phosphor bronze sleeve for reliable connections.
-
Low insertion loss (≤0.2 dB) and compact design suitable for high-density panels.
Table of Contents
Description
The ST-ST Multimode Simplex Metal Fiber Optic Adapter with Red Cap is designed for precise and reliable connection of two ST fiber optic patch cables. Its metal construction and high-precision alignment sleeve ensure low insertion loss and consistent signal integrity. The red cap provides visual identification for multimode fibers, making it ideal for data centers, telecommunications, and broadband networks. Built with RoHS-compliant materials, this adapter ensures durability and long-term performance in indoor structured cabling environments.
Specification
| Connector Type | ST Simplex to ST Simplex |
|---|---|
| Fiber Type | Multimode |
| Adapter Style | Simplex / Metal |
| Insertion Loss | ≤ 0.2 dB |
| Anti-Pulling Force | 200–600 g |
| Durability | ≥ 1000 mating cycles |
| Housing Material | PBT (UL 94V-0) |
| Sleeve Material | Phosphor Bronze |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +120°C |
| Compliance | RoHS, IEC, Telcordia GR-326, JIS |
Features
-
High-precision alignment sleeve for stable, low-loss optical connection.
-
Simplex ST-ST metal adapter optimized for multimode fibers.
-
RoHS-compliant PBT housing with UL 94V-0 flame rating.
-
100% quality inspected prior to shipment.
-
Available in multiple colors and flanged/flangeless options.
Applications
-
Data center fiber connections and high-density cabling.
-
Telecommunication network installations.
-
LAN/WAN infrastructure and premise cabling.
-
FTTX networks and broadband deployments.
Frequently Asked Questions
Q1: What is the maximum insertion loss of this adapter?
A1: Maximum insertion loss is 0.2 dB, ensuring low signal attenuation.
Q2: How many mating cycles can the adapter endure?
A2: Tested for at least 1000 mating cycles for long-term reliability.
Q3: What is the operating temperature range?
A3: Adapter operates from -40°C to +85°C, with storage up to +120°C.
Q4: What materials are used for the housing and sleeve?
A4: Housing is PBT (UL 94V-0) and sleeve is phosphor bronze for durability.
Q5: Can this adapter be used in high-density panels?
A5: Yes, flangeless and compact design supports high-density installations.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
