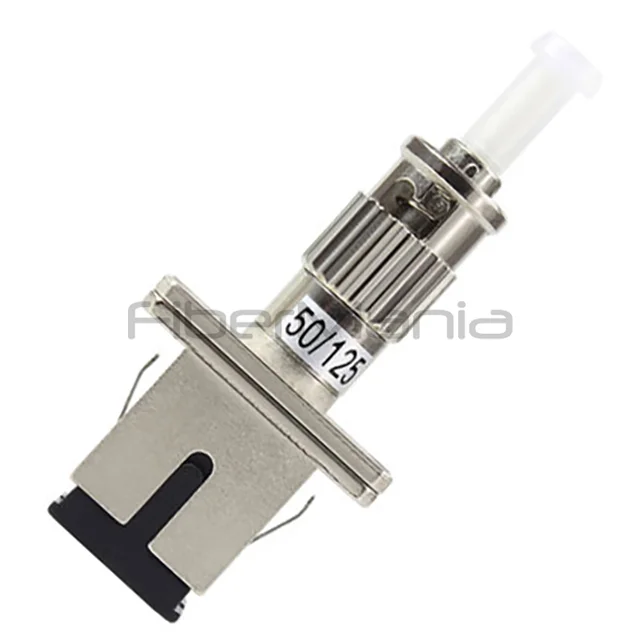

ST Male-SC Female OM2 Multimode Simplex Fiber Optic Adapter
Categories:
Product Highlights:
-
ST Male to SC Female OM2 Multimode Simplex Fiber Optic Adapter
-
Low insertion loss and high precision alignment sleeve
-
Durable PBT and metal die-cast housing, rated for 1000 mating cycles
-
FiberMania provides OEM/ODM customization including color, labeling, and packaging
Table of Contents
Description
The ST Male to SC Female OM2 Multimode Simplex Fiber Optic Adapter is designed to provide a reliable connection between ST and SC fiber optic connectors in multimode networks. Constructed with high precision alignment sleeves and durable materials, it ensures low insertion loss and excellent signal transmission. This adapter is ideal for bridging different connector types in LAN, WAN, FTTx, and telecommunication networks.
Engineered for both professional and commercial environments, the adapter allows quick installation while maintaining superior mechanical and optical performance. Its robust housing protects the internal components, providing long-lasting durability in demanding network conditions.
Specification
| Adapter Type | ST Male-SC Female |
|---|---|
| Fiber Mode | Multimode |
| Configuration | Simplex |
| Insertion Loss | ≤ 0.2 dB |
| Compliance | IEC, Telcordia GR-326, JIS standards; RoHS-compliant materials |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +120°C |
| Durability | ≥ 1000 mating cycles |
Features
-
High precision alignment sleeve for stable signal transmission
-
Meets IEC, Telcordia-GR-326, and JIS performance standards
-
RoHS-compliant materials for environmental safety
-
100% inspected prior to shipment
-
Durable housing made of PBT and metal die-cast
Applications
-
Data centers
-
Telecommunication networks
-
Premise installations
-
LAN and WAN connections
-
FTTx deployments
-
Broadband networks
FAQ
Q: What is the maximum insertion loss?
A: 0.2dB max.
Q: Can this adapter be reused?
A: Yes, it is rated for at least 1000 mating cycles.
Q: What operating temperature range does it support?
A: -40°C to +85°C for operation, -40°C to +120°C for storage.
Q: Is it suitable for both indoor and outdoor applications?
A: It is primarily designed for indoor fiber optic networks.
Q: Can FiberMania customize this adapter?
A: Yes, OEM/ODM options are available including color, labeling, and packaging.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
