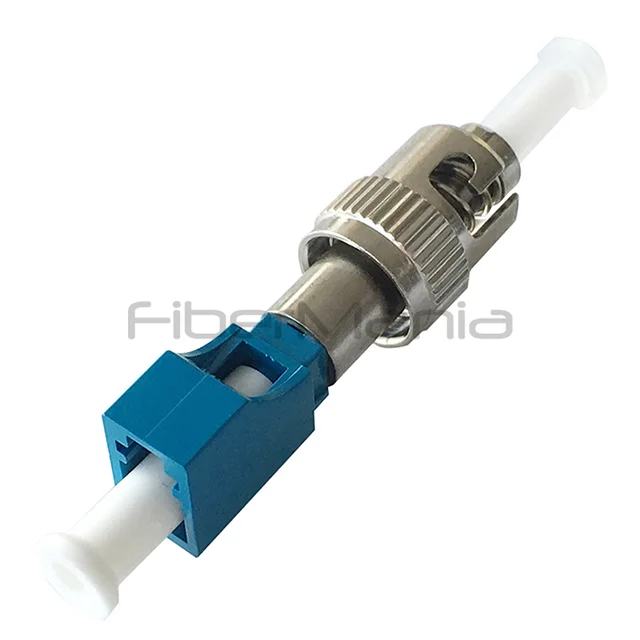

ST Male-LC Female Single Mode Simplex Fiber Optic Adapter
Categories:
Product Highlights:
-
ST Male to LC Female Single Mode Simplex Fiber Optic Adapter ensures low-loss, stable connections for single mode networks.
-
High-precision ceramic sleeve and durable PBT housing provide long-lasting performance.
-
Suitable for data centers, telecom networks, LAN/WAN, FTTX, and broadband applications.
-
FiberMania offers OEM/ODM services, including custom packaging, branding, and hybrid configurations
Table of Contents
Description
The FiberMania ST Male-LC Female Single Mode Simplex Fiber Optic Adapter is designed to connect two fiber optic patch cables or to convert a port for different connector types. This hybrid adapter ensures stable, low-loss optical connections in single mode networks, providing consistent performance for data transmission.
With a high-precision ceramic alignment sleeve, this adapter guarantees minimal insertion loss and excellent signal integrity. Constructed with durable PBT housing and metal die-cast components, it maintains reliability in demanding networking environments. Fully RoHS-compliant, the adapter is suitable for data centers, telecommunications, premise installations, and broadband network applications.
FiberMania also provides hybrid and custom configurations, allowing adapters to support different connector types for flexible network design.
Specification
| Adapter Type | ST Male-LC Female |
|---|---|
| Fiber Mode | Single Mode |
| Configuration | Simplex |
| Insertion Loss | ≤ 0.2 dB |
| Compliance | IEC, Telcordia GR-326, JIS standards; RoHS-compliant materials |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +120°C |
| Durability | ≥ 1000 mating cycles |
Features
-
Meets IEC, Telcordia GR-326, and JIS performance requirements
-
High-precision ceramic alignment sleeve
-
Durable PBT (UL 94V-0) housing with metal die-cast components
-
Materials compliant with RoHS
-
100% inspected prior to shipment
-
Minimal insertion loss
Applications
-
Data centers
-
Telecommunication networks
-
Premise installations
-
LAN and WAN networks
-
FTTX deployments
-
Broadband networks
FAQ
Q: What is the maximum insertion loss for this adapter?
A: The maximum insertion loss is 0.2dB, ensuring minimal signal degradation.
Q: Can this adapter be used in outdoor or harsh environments?
A: Yes, it operates reliably from -40°C to +85°C.
Q: How durable is the adapter?
A: It supports at least 1000 mating cycles without performance degradation.
Q: Is it RoHS compliant?
A: Yes, all materials meet RoHS standards.
Q: Can FiberMania provide OEM or custom packaging?
A: Yes, we provide full OEM/ODM services, including custom packaging, labeling, and hybrid connector options.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
