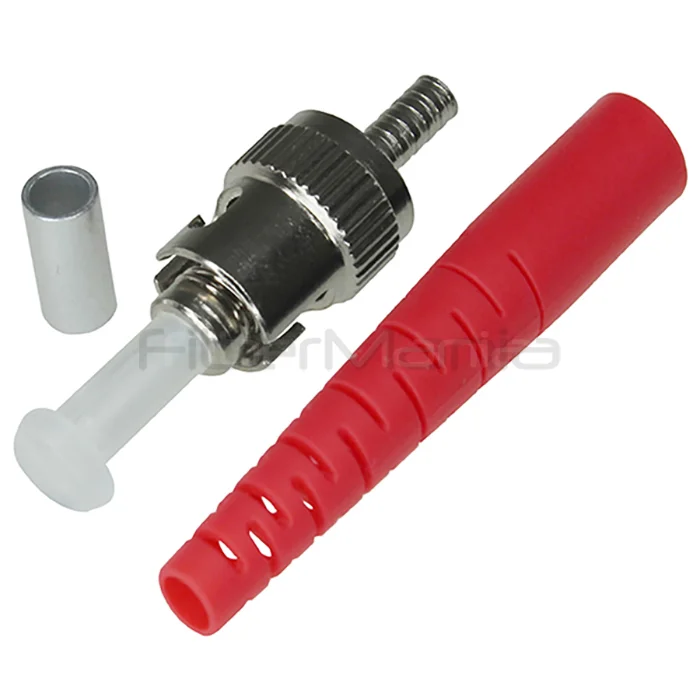

ST Connector, Single Mode, Metal Housing, 2.0mm Red Boot
Categories:
Product Highlights:
-
ST single mode connector with metal housing and 2.0mm red boot for high-performance fiber connections.
-
Easy assembly with pre-domed ceramic ferrule and low insertion loss.
-
Ideal for LAN, WAN, broadband, CATV, and FTTx applications.
-
FiberMania provides OEM/ODM services including custom colors, branding, and pre-terminated assemblies.
Table of Contents
Description
The ST Connector from FiberMania, featuring a metal housing and 2.0mm red boot, is engineered for high-performance single mode fiber applications. Its epoxy type construction ensures precise fiber alignment, ultra-low back reflection, and minimal insertion loss, making it ideal for LAN, WAN, broadband, and FTTx networks. The robust metal housing offers excellent durability and corrosion resistance, suitable for both commercial and industrial installations.
This connector is designed for easy assembly with a one-piece pre-domed ceramic ferrule, compatible with 2.0mm jacketed single mode fiber. Its high reliability and compliance with Telecordia-GR-326-CORE standards make it a trusted choice for professional fiber optic projects.
Specification
| Connector Type | ST Connector |
|---|---|
| Fiber Mode | Single Mode |
| Ferrule Diameter | 2.5 mm |
| Housing Material | Metal |
| Boot Diameter | 2.0 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 55 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Metal |
| Applications | Telecom, Data Center |
| Connector Compatibility | Standard ST fibers |
Features
-
Low insertion loss and ultra-low back reflection
-
Corrosion-resistant metal body for enhanced durability
-
Compatible with 2.0mm single mode fiber jackets
-
One-piece pre-domed ceramic ferrule for simple assembly
-
Meets Telecordia-GR-326-CORE specifications
-
RoHS compliant
Application
-
LAN and WAN fiber optic networks
-
Telecommunication and broadband systems
-
CATV and FTTx projects
-
Optical fiber test equipment
FAQ
Q: What fiber type is supported?
A: Single Mode 9/125 µm fiber.
Q: Is it suitable for FTTx networks?
A: Yes, it is fully compatible with FTTx installations.
Q: How durable is the connector?
A: Supports over 1,000 mating cycles.
Q: Does assembly require special tools?
A: No, the one-piece pre-domed ferrule allows tool-free installation.
Q: Can FiberMania provide custom OEM/ODM options?
A: Yes, including custom colors, branding, and pre-terminated assemblies.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
