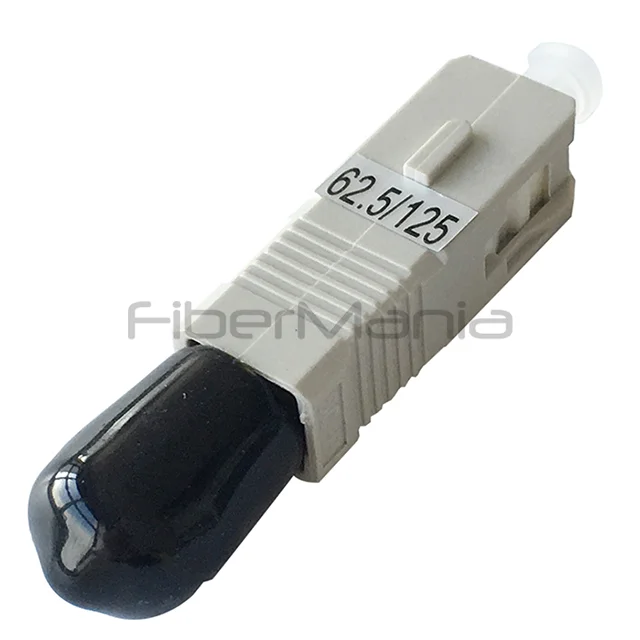

SC Male-ST Female OM1 Multimode Simplex Fiber Optic Adapter
Categories:
Product Highlights:
-
SC Male–ST Female OM1 Multimode Fiber Optic Adapter with precision ceramic sleeve
-
Minimal insertion loss (≤0.2dB) and high durability (≥1000 mating cycles)
-
Suitable for data centers, LAN/WAN, FTTX, and broadband networks
-
FiberMania provides OEM/ODM
Table of Contents
Description
The SC Male–ST Female OM1 Multimode Fiber Optic Adapter is designed to connect fiber optic patch cables with different connector types, enabling seamless integration in complex fiber optic networks. This hybrid adapter allows an SC male connector to interface with an ST female connector, offering flexibility for multimode OM1 networks. Constructed from high-quality materials with precise alignment sleeves, it ensures minimal insertion loss and high reliability for data transmission.
Ideal for data centers, telecommunications, LAN/WAN, and broadband networks, this adapter supports high-density deployments and provides a robust solution for connecting legacy and modern fiber optic equipment. Each adapter is inspected to meet IEC, Telcordia GR-326, and JIS performance requirements, ensuring consistency and durability.
Specification
| Adapter Type | SC Male-ST Female |
|---|---|
| Fiber Mode | Multimode |
| Configuration | Simplex |
| Insertion Loss | ≤ 0.2 dB |
| Compliance | IEC, Telcordia GR-326, JIS standards; RoHS-compliant materials |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +120°C |
| Durability | ≥ 1000 mating cycles |
Features
-
Hybrid SC male to ST female configuration for OM1 multimode fiber
-
High precision ceramic alignment sleeve
-
Meets IEC, Telcordia GR-326, and JIS standards
-
Materials compliant with RoHS
-
100% inspected for quality before shipment
-
Durable housing with PBT (UL 94V-0)
Applications
-
Data centers and telecommunication networks
-
Premise installations
-
LAN and WAN fiber connections
-
FTTX and broadband network deployments
FAQ
Q: What is the maximum insertion loss of this adapter?
A: Maximum insertion loss is 0.2dB.
Q: How many times can it be connected and disconnected?
A: Minimum durability of 1000 mating cycles.
Q: What is the anti-pulling force of the adapter?
A: Between 200–600 grams.
Q: Is this adapter suitable for outdoor use?
A: It is designed for indoor and controlled environments; for outdoor use, additional protective enclosures are recommended.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
