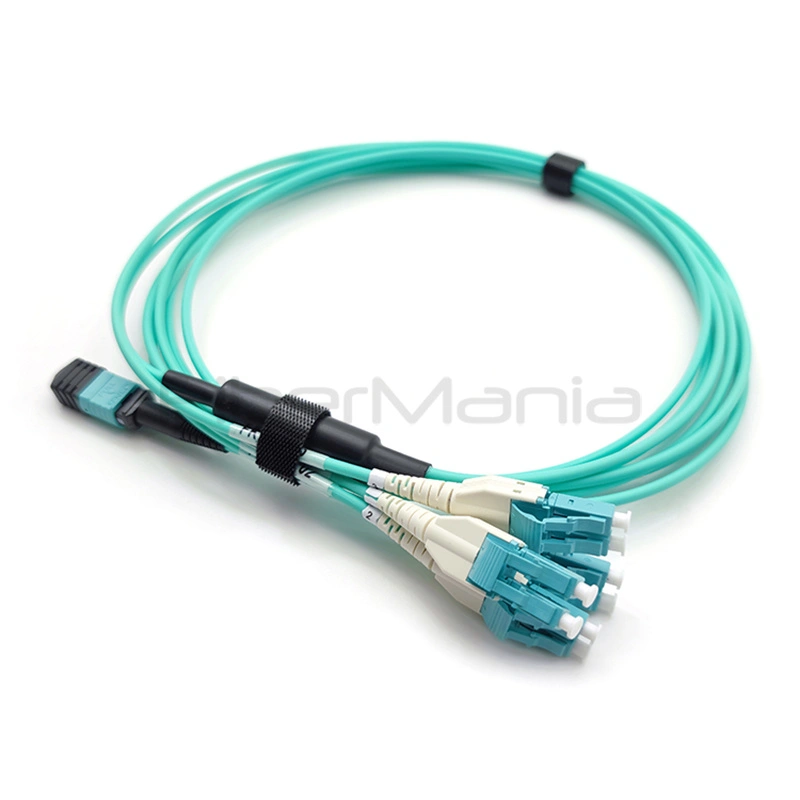

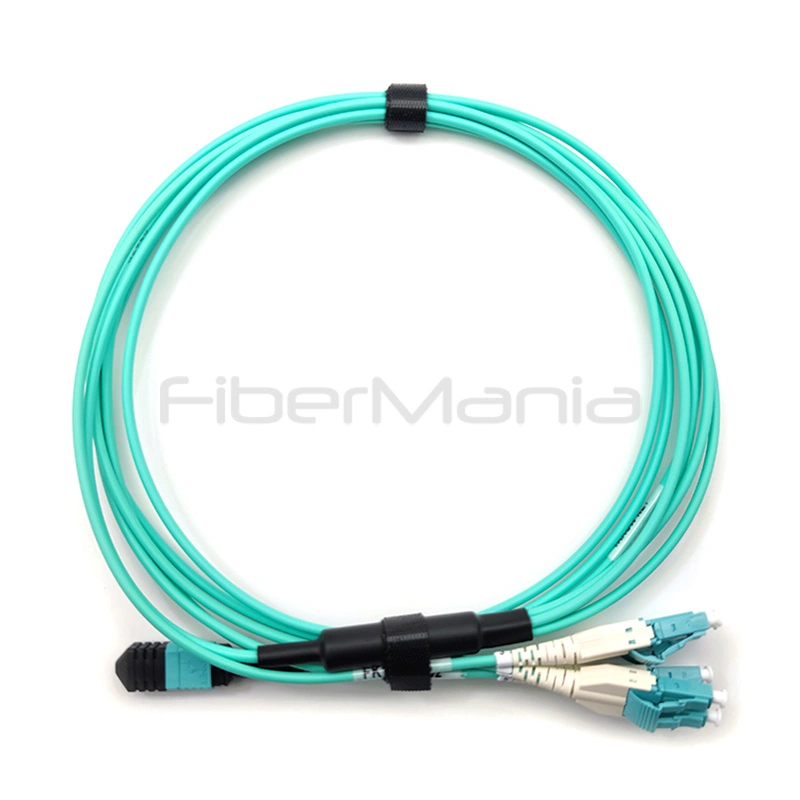

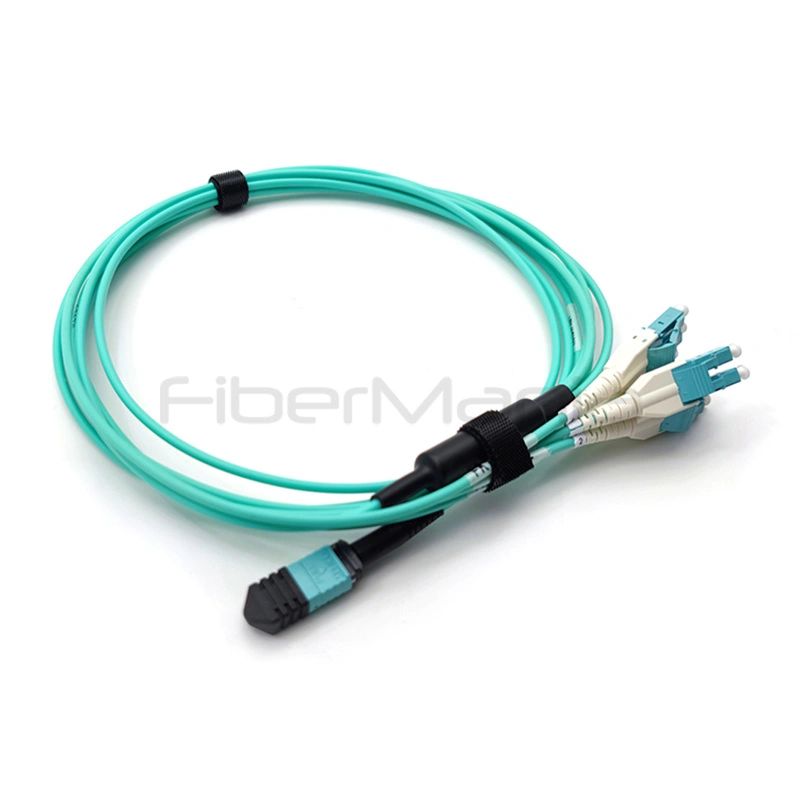

MTP Female to LC Uniboot Breakout Cable, 8-Fiber OM4 50/125μm with Pull Tabs
Categories:
Product Highlights:
- 8-fiber OM4 multimode breakout cable
- MTP female to LC Uniboot
- US Conec MTP® female connector
- Corning ClearCurve® fiber
- Compact high-density design
- LC Uniboot with pull tabs
- Ideal for data center rack interconnects
- Factory terminated and OEM customizable
Table of Contents
Description
The MTP Female to LC Uniboot Breakout Cable is an 8-fiber OM4 multimode fiber assembly designed for high-density connections between MTP backbone cabling and individual LC interfaces. It features a US Conec MTP® female (pinless) connector on one end and LC Uniboot connectors on the other, providing a compact design that simplifies fiber management and reduces cable congestion in data center racks and network cabinets. Corning ClearCurve® glass fiber supports reliable 850nm and 1300nm transmission with low insertion loss, while the integrated pull tabs facilitate installation, removal, and routing in densely populated equipment environments. The factory-terminated assembly is suitable for data center, network, rack-to-rack, and high-density fiber interconnect applications.
Specification
| Connection Structure | MTP to LC Uniboot |
|---|---|
| Connector A | US Conec MTP? Female (Pinless) |
| Connector B | LC Uniboot |
| Fiber Count | 8 Fibers |
| Breakout Configuration | 1 × MTP to LC Uniboot |
| Fiber Type | Multimode Fiber |
| Fiber Mode | OM4 |
| Fiber Size | 50/125μm |
| Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve? |
| MTP Connector IL | 0.35dB Max, 0.15dB Typ. |
| LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥20dB |
| LC Connector RL | ≥30dB |
| Attenuation at 850nm | ≤2.3dB/km |
| Attenuation at 1300nm | ≤0.6dB/km |
| Installation Tensile Load | 66N |
| Allowed Tensile Strength | <100N |
| Cable Shape | Round |
Features
- 8-fiber OM4 50/125μm multimode fiber
- MTP female to LC Uniboot breakout configuration
- US Conec MTP® female (pinless) connector
- LC Uniboot connectors with pull tabs
- Corning ClearCurve® glass fiber
- Compact design for high-density fiber management
- Low insertion loss and reliable return loss
- Factory terminated for rapid deployment
- Suitable for rack and equipment interconnections
- OEM customization available
Applications
- Data center high-density cabling
- Network equipment interconnection
- Server-to-switch connections
- Rack-to-rack fiber connections
- MTP/MPO backbone breakout
- High-density fiber patching
- Network cabinets and equipment racks
- Structured multimode fiber cabling
Q&A
What is the cable configuration?
The cable uses one 8-fiber MTP female connector and breaks out to LC Uniboot connectors, providing individual LC connections while maintaining a compact cable profile.
What is the advantage of LC Uniboot connectors?
LC Uniboot connectors combine two fibers into a single connector body, reducing cable bulk and improving cable management in high-density racks compared with conventional duplex LC patch cords.
What fiber type is used?
The cable uses OM4 50/125μm multimode fiber, supporting 850nm and 1300nm transmission for high-speed, short-distance network and data center applications.
What are the pull tabs used for?
The pull tabs make it easier to install and remove connectors in densely populated patch panels and equipment ports, particularly where direct access to the connector housing is limited.
Can this cable be customized?
Yes. Cable length, fiber configuration, connector options, labeling, and other specifications can be customized for OEM and project requirements.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
