MPO to MPO Fanout Trunk Cable MPO-N×MPO Breakout High Density Patch Cord
Categories:
Product Highlights:
- MPO to MPO fanout trunk cable designed for high-density fiber distribution
- Enables flexible MPO-N×MPO breakout configurations for optimized network design
- Pre-terminated with low insertion loss for reliable high-speed performance
Table of Contents
Description

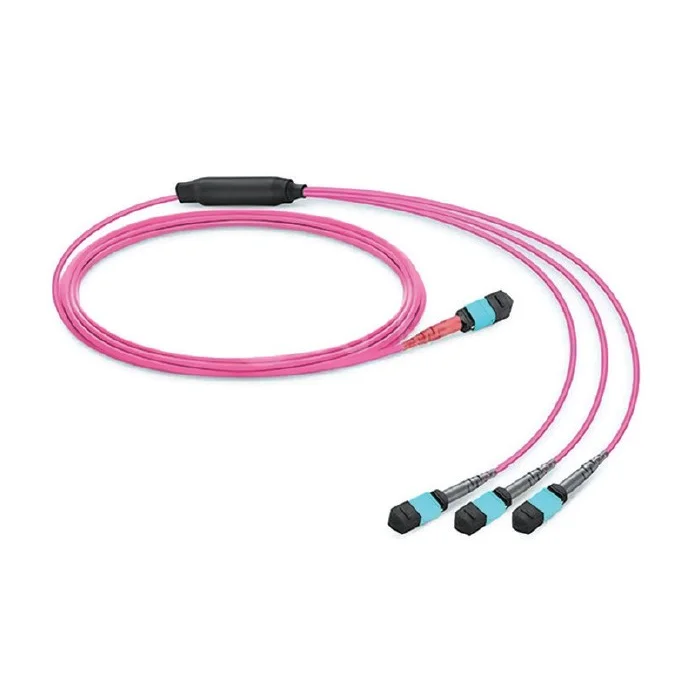

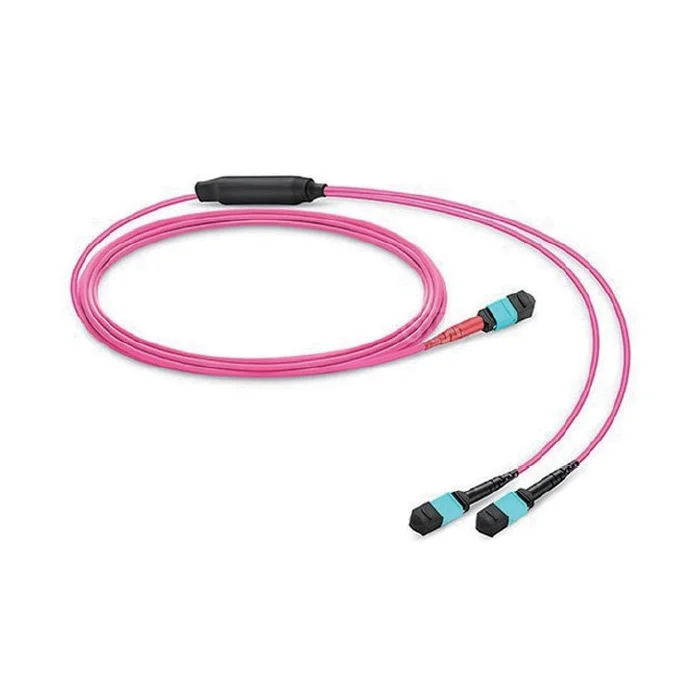

The MPO to MPO fanout trunk cable is a high-density fiber optic solution designed to split a single MPO interface into multiple MPO connectors, enabling efficient fiber distribution in modern network infrastructures. This MPO-N×MPO breakout configuration allows high-count backbone connections to be segmented into smaller fiber groups, providing greater flexibility in network architecture and simplifying connectivity between different system layers.
This type of fanout trunk cable is particularly valuable in structured cabling systems where backbone networks must interface with multiple distribution or access points. By breaking down a high-fiber MPO trunk into several MPO connectors, it improves port utilization, reduces unnecessary fiber waste, and enhances overall cable management. The compact design helps minimize congestion in high-density environments such as data centers, telecom facilities, and enterprise networks.
Engineered with precision-terminated MPO connectors, the cable ensures consistent optical performance with low insertion loss and high reliability. It supports high-speed data transmission standards including 40G, 100G, and beyond. With customizable options such as fiber count per branch, cable length, fiber type, and polarity, this solution is ideal for scalable and future-ready network deployments.
Specification
| Connector Type | MPO to N×MPO |
|---|---|
| Fiber Count | Customizable (e.g., 12 / 24 / 48 / etc.) |
| Polarity | Type A / Type B / Type C |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 |
| Cable Length | Customizable |
| Fanout Configuration | Customizable (N×MPO branches) |
| Cable Jacket | LSZH / PVC / OFNP |
| Insertion Loss | ≤ 0.35dB (Low Loss optional) |
| Return Loss | ≥ 60dB (SM) / ≥ 20dB (MM) |
| Operating Temperature | -20°C to +70°C |
Features
- MPO to multiple MPO breakout design for flexible fiber distribution
- Supports MPO-N×MPO configurations for customized network layouts
- High-density design reduces cable bulk and improves airflow
- Low insertion loss for stable and efficient signal transmission
- Pre-terminated MPO connectors for fast installation
- Compatible with 40G, 100G, and higher-speed applications
- Customizable fiber count, branch configuration, and cable length
- High-quality materials ensure durability and long-term performance
Applications
- Data center backbone to distribution cabling
- High-density structured cabling systems
- Spine-leaf network architectures
- Telecom and enterprise network deployments
- MPO cassette and patch panel interconnections
- Cloud computing and hyperscale environments
FAQ
What does MPO-N×MPO mean in this cable?
It refers to one MPO connector being split into multiple MPO connectors, allowing a single high-fiber trunk to be distributed into several smaller fiber groups.
Can the fanout configuration be customized?
Yes, the number of MPO outputs, fiber count per branch, cable length, and fiber type can all be tailored to specific project requirements.
Is this cable suitable for high-speed applications like 100G or 400G?
Yes, with proper fiber selection (such as OM4 or OS2), it supports high-speed data transmission including 100G and beyond.
How does this cable improve cable management?
By breaking a large fiber trunk into smaller MPO connections, it reduces congestion and allows more organized routing in high-density racks.
Do you provide OEM and private label services?
Yes, full OEM support is available, including custom branding, labeling, packaging, and specification adjustments.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
