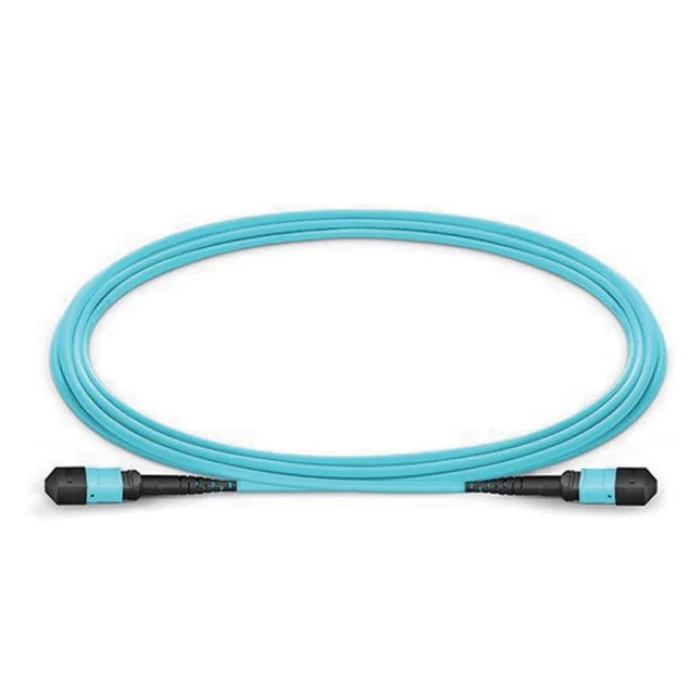

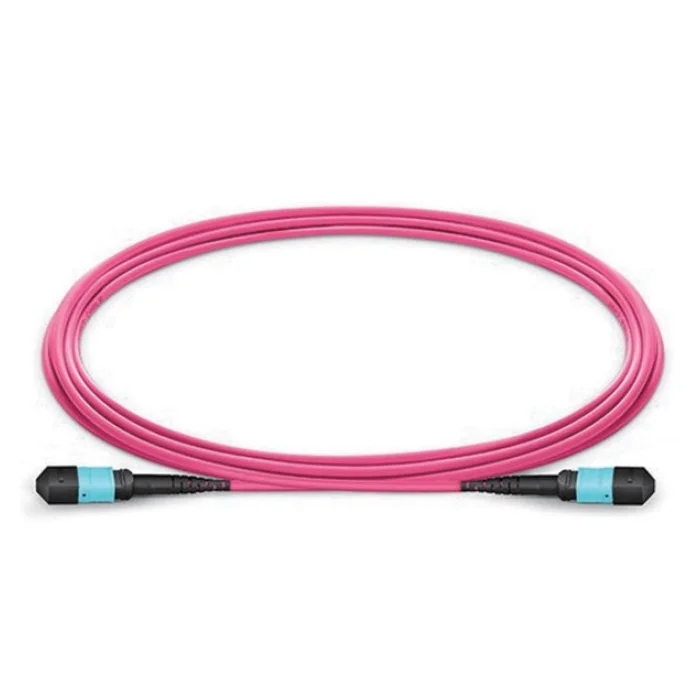

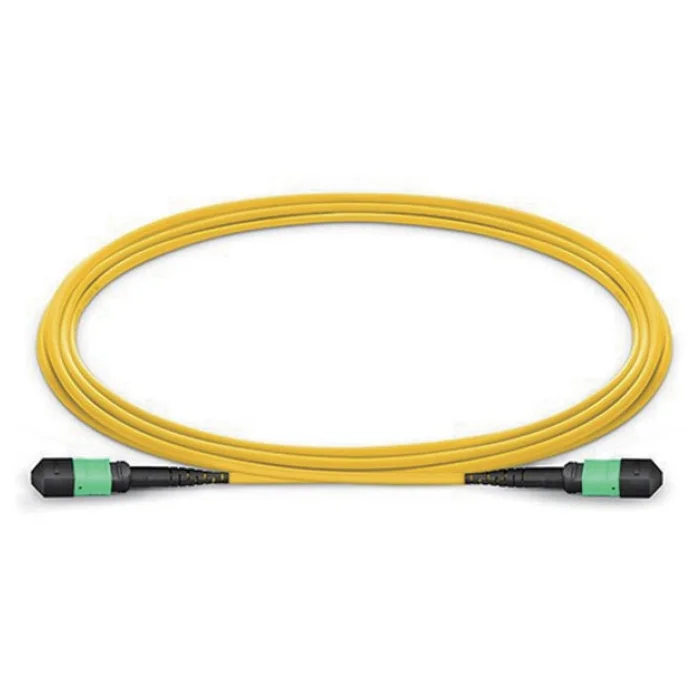

MPO-MPO Trunk Patch Cord 8/12/24 Cores Polarity A/B Custom High Density Fiber Cable
Categories:
Product Highlights:
- High-density MPO-MPO trunk cable designed for 8/12/24 fiber backbone connectivity
- Supports Polarity A/B for flexible and efficient structured cabling systems
- Low insertion loss and pre-terminated design ensure reliable, plug-and-play performance
Table of Contents
Description
The MPO-MPO trunk patch cord is a high-density fiber optic cabling solution engineered for backbone connectivity in modern data centers and high-speed network environments. Designed to support 8, 12, and 24 fiber configurations, it enables efficient parallel data transmission, making it ideal for applications such as 40G, 100G, and higher bandwidth systems. Its compact, multi-fiber design significantly reduces cable bulk while improving airflow and simplifying cable management within high-density racks.
This trunk cable is commonly used to interconnect MPO cassettes, adapter panels, or directly connect active equipment, forming the core infrastructure of structured cabling systems. With precision-terminated MPO connectors and low insertion loss performance, it ensures stable signal integrity and reliable network operation even in demanding environments.
Built for flexibility, the MPO trunk cable supports full customization options, including polarity types (Type A and Type B), cable lengths, fiber types (OS2, OM3, OM4, OM5), and connector specifications. Manufactured under strict quality control standards using premium materials, it offers long-term reliability and scalability for evolving network architectures.
Specification
| Connector Type | MPO/MTP to MPO/MTP |
|---|---|
| Fiber Count | 8 / 12 / 24 Fibers |
| Polarity | Type A (Straight) / Type B (Reversed) |
| Fiber Mode | Singlemode (OS2) / Multimode (OM3/OM4/OM5) |
| Cable Length | Customizable |
| Cable Jacket | LSZH / PVC / OFNP |
| Insertion Loss | ≤ 0.35dB (Low Loss optional) |
| Return Loss | ≥ 60dB (SM) / ≥ 20dB (MM) |
| Operating Temperature | -20°C to +70°C |
| Standards | IEC, TIA/EIA compliant |
| Testing | 100% factory tested |
Features
- Available in 8, 12, and 24 fiber configurations for different density requirements
- Supports Polarity Type A and Type B for flexible network design
- High-density MPO connectors reduce cable congestion and save space
- Low insertion loss ensures stable and efficient signal transmission
- Compatible with 40G, 100G, and higher-speed network applications
- Customizable fiber type, cable length, and connector specifications
- Factory pre-terminated and tested for plug-and-play deployment
- Durable outer jacket options for various installation environments
Applications
- Data center backbone cabling systems
- High-speed Ethernet networks (40G/100G/400G)
- MPO cassette and patch panel interconnections
- Spine-leaf architecture deployments
- Cloud computing and hyperscale data centers
- Storage area networks (SAN) and high-performance computing
FAQ
What is the difference between Polarity Type A and Type B?
Type A maintains straight-through fiber mapping, while Type B provides a reversed fiber mapping. The choice depends on the system design and how transmit/receive channels are aligned.
Can this MPO trunk cable support 400G applications?
Yes, with the appropriate fiber type (such as OM4 or OS2) and connector configuration, it can support 400G and beyond in modern data center environments.
Is customization available for specific project requirements?
Yes, the cable can be fully customized in terms of fiber count, length, polarity, fiber type, and connector specifications to match different deployment scenarios.
How is the product quality ensured?
Each cable is factory pre-terminated and undergoes 100% testing for insertion loss and performance to ensure reliability before delivery.
Do you support OEM or private label services?
Yes, branding, packaging, and product specifications can be customized according to customer requirements for OEM and private label projects.
Featured MPO/MTP Trunk Cables Guide
| SKU | Fiber Count | Connector A | Connector B | Polarity | Fiber Mode | Features | Length | Color |
| MAFMAF-R12S9RYL2 | 12 | MTP/APC Female | MTP/APC Female | A | OS2 | 2M | Yellow | |
| MAMMAF-R12S9RYL2 | 12 | MTP/APC Male | MTP/APC Male | A | OS2 | 2M | Yellow | |
| MPFMPF-R12S3RAQ1 | 12 | MPO Female | MPO Female | A | OM3 | 1M | Aqua | |
| MPFMPF2-R24S3RAQ15 | 24 | 2 x MPO Female | 2 x MPO Female | A/B | OM3 | Customized | 15M | Aqua |
| MPFMPF6-R72SXRAQ10 | 72 | 6 x MPO Female | 6 x MPO Female | A/B | OM3 | Customized | 10M | Aqua |
| MPMMPM-R12B3RYL5 | 12 | MPO APC | MPO APC | B | SM | Elite,LSZH | 5M | Yellow |
| MPMPPL-R12S12AQ01 | 12 | MPO | MPO | A/B | OM4 | Pull Tab | 1M | Aqua |
| MTFMAFP-R12S9RYL1 | 12 | MTP APC | MTP APC | A | OS2 | Elite | 1M | Yellow |
| MTFMTF-R12S3RAQ2 | 12 | MTP/PC | MTP/PC | A | OM3 | 2M | Aqua | |
| MTFMTF-R12S3ROR2 | 12 | MTP Female | MTP Female | A | OM1 | 2M | Orange | |
| MTFMTF-R12S4RMG2 | 12 | MTP Male | MTP Female | A | OM4 | 2M | Erika Violet | |
| MTFMTF-R12S5RLM2 | 12 | MTP Female | MTP Female | A | OM5 | 2M | Lime Green | |
| MTFMTFP-R12B4PAQ10 | 12 | MTP Pro Female | MTP Pro Female | B | OM4 | PRO, OFNP | 10M | Erika Violet |
| MTFMTFP-R24B5PLM50 | 24 | MTP Pro Female | MTP Pro Female | B | OM5 | PRO | 50M | Lime Green |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
