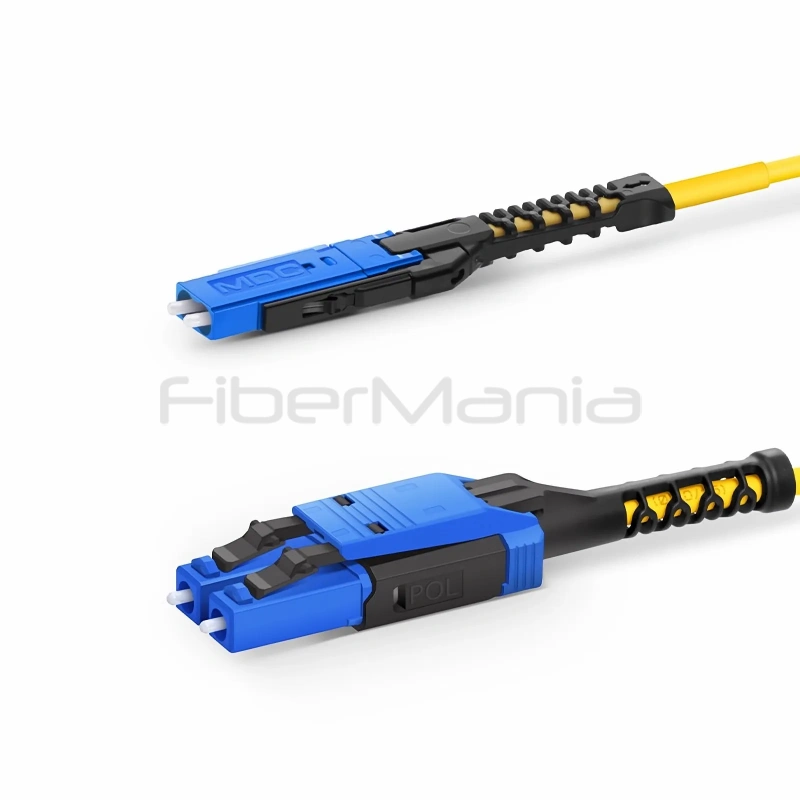

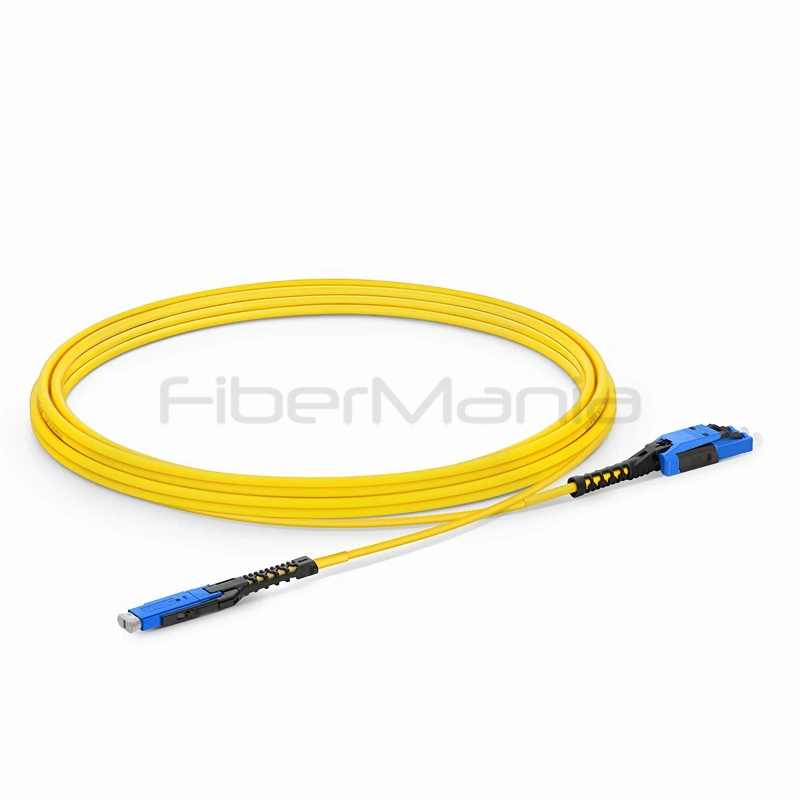

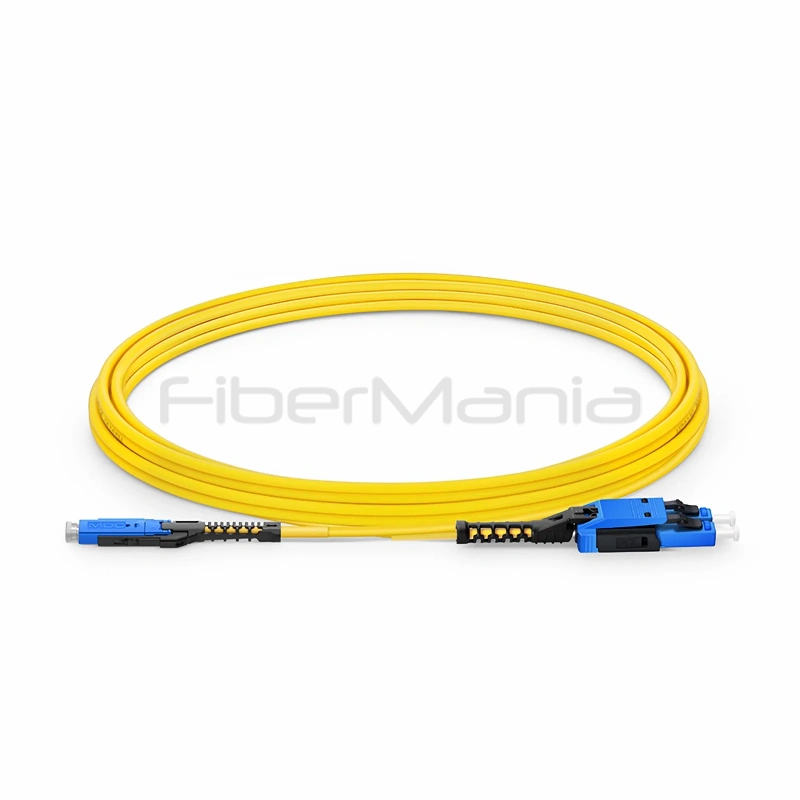

3m (10ft) MDC UPC Duplex to LC UPC Duplex OS2 G.657.A1 Fiber Patch Cable, 2.0mm OFNR Uniboot Push-Pull
Categories:
Product Highlights:
- 3m (10ft) MDC to LC duplex fiber connection
- OS2 G.657.A1 single mode fiber
- Compact 2.0mm OFNR Uniboot cable
- US Conec MDC push-pull connector
- ≤0.25dB typical insertion loss
- ≥50dB UPC return loss
- A (Tx) to B (Rx) polarity
Table of Contents
Description
This 3m (10ft) MDC UPC duplex to LC UPC duplex fiber patch cable is designed for compact, high-density single-mode fiber connectivity. It uses OS2 G.657.A1 fiber with a 2.0mm OFNR riser-rated Uniboot cable, combining bend-insensitive performance with efficient cable management. The US Conec MDC UPC duplex connector features a push-pull design for convenient installation and removal in space-constrained environments, while the LC UPC duplex connector provides compatibility with standard LC-based fiber equipment. With ≤0.25dB typical insertion loss and ≥50dB return loss, this cable is suitable for data centers, transceiver breakout connections, patch panels, and other high-density fiber applications.
Specification
| Cable Length | 3m (10ft) |
|---|---|
| Connector Type A | US Conec MDC UPC Duplex Uniboot |
| Connector Type B | LC UPC Duplex Uniboot |
| Connector Configuration | Duplex, 2-Fiber |
| Fiber Type | OS2 Single Mode |
| Fiber Standard | G.657.A1 |
| Polish Type | UPC |
| Connector Design | Push-Pull Boot, Uniboot |
| Insertion Loss | ≤0.25dB Typical |
| Return Loss | ≥50dB (UPC) |
| Cable Diameter | 2.0mm |
| Cable Jacket | OFNR Riser |
| Cable Color | Yellow |
| Polarity | A (Tx) to B (Rx) |
| Operating Temperature | −20°C to +70°C |
| Standards | IEC 61754-36 / TIA-604-38 / RoHS |
Features
- MDC UPC duplex to LC UPC duplex configuration
- 3m (10ft) cable length
- 2-fiber OS2 single mode fiber
- G.657.A1 bend-insensitive fiber
- 2.0mm OFNR riser-rated cable jacket
- Uniboot design for simplified cable management
- Push-pull MDC connector for convenient installation and removal
- ≤0.25dB typical insertion loss
- ≥50dB return loss
- A (Tx) to B (Rx) polarity
- Compliant with IEC 61754-36, TIA-604-38, and RoHS
Applications
- High-density data center cabling
- MDC-based patch panels and cassettes
- Transceiver breakout connections
- Switch-to-patch-panel fiber connections
- Rack-level fiber interconnection
- Fiber cross-connects
- Space-constrained single-mode fiber installations
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
