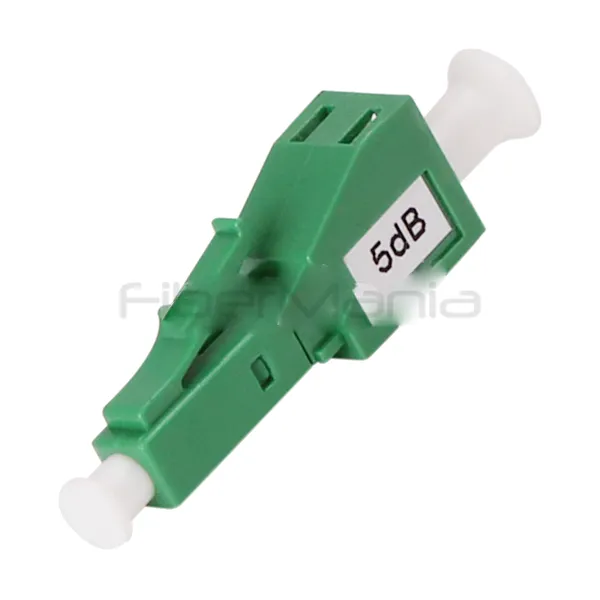

LC/APC Plug-in Fixed Attenuator, Single Mode 5dB
Categories:
Product Highlights:
-
LC/APC 5dB single-mode fiber optic plug-in attenuator with low back reflection and wide wavelength range
-
Compact and rugged design for CATV, LAN, WAN, and WDM networks
-
Accurate attenuation (±0.5dB) with polarization-insensitive performance
-
FiberMania provides OEM/ODM customization for connector types, attenuation values, and packaging options
Table of Contents
Description
The LC/APC 5dB fiber optic plug-in attenuator is designed to precisely reduce optical signal power by 5dB in single-mode fiber optic networks. It features a compact and rugged design with an LC/APC connector on the input side and a female adapter on the output side, allowing seamless integration into existing optical systems. This attenuator ensures low back reflection, maintains signal integrity, and supports a wide wavelength range, making it suitable for high-performance telecommunications and data networks.
Engineered for accuracy and reliability, it is ideal for optical power equalization, channel balancing in WDM systems, and receiver padding. Its hybrid design uses attenuating fiber to provide stable and mode-independent attenuation with minimal polarization dependence.
Specification
| Attenuation Value: | 5dB (available 1–30dB) |
|---|---|
| Connector Type: | LC/APC plug-in (male to female) |
| Operating Wavelength: | 1260–1620nm |
| Return Loss: | APC ≥65dB |
| Attenuation Accuracy: | ±0.5dB |
| Maximum Optical Input Power: | 1000mW |
| Polarization Dependent Loss (PDL): | ≤0.1dB |
| Operating Temperature Range: | -40 to +75°C |
| Storage Temperature Range: | -40 to +85°C |
| Housing Material: | Rugged, compact design suitable for field and lab use |
| Compliance: | Telcordia GR-326 standards |
| Mode: | Single-mode, polarization insensitive |
Features
-
Low back reflection for signal integrity
-
Wide wavelength range: 1260–1620nm
-
Polarization insensitive design
-
Compact and rugged housing
-
Compatible with multiple connector types and hybrid configurations
-
Mode-independent multimode loopback design
-
Compliant with Telcordia GR-326 standards
Applications
-
Optical power equalization in fiber networks
-
CATV, LAN, and telecommunication systems
-
Test and measurement setups
-
Channel balancing for WDM systems
-
Receiver padding and optical transmission system optimization
Q&A
Q1: Can the attenuator be used with multi-mode fiber?
A1: This model is designed for single-mode applications only.
Q2: What is the optical power handling limit?
A2: Maximum input power is 1000mW.
Q3: Can I request a different attenuation value?
A3: Yes, FiberMania offers OEM/ODM options from 1dB to 30dB.
Q4: How stable is the attenuation across wavelengths?
A4: Designed for 1260–1620nm with high accuracy (±0.5dB).
Q5: Is this suitable for WDM channel balancing?
A5: Yes, it is ideal for WDM optical networks and receiver padding.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
