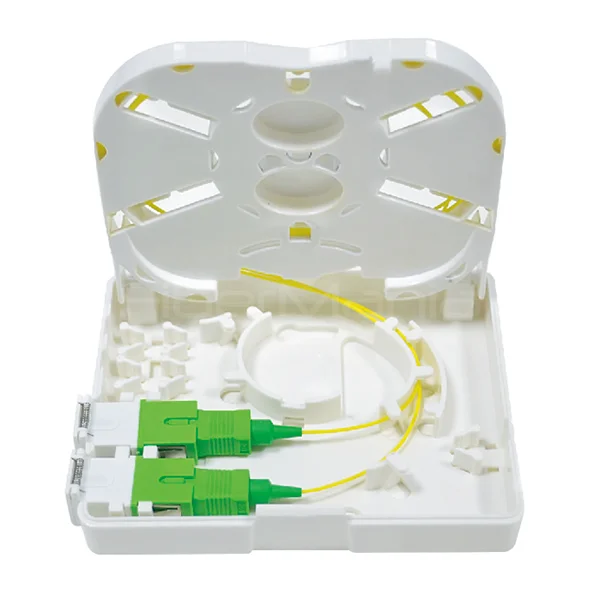

Fiber Optic Termination Box, 2 Ports, SC Simplex Type, Plastic Housing, For Indoor Use, 80x100x25mm
Categories:
Product Highlights:
-
2-port indoor fiber optic termination box with SC simplex ports for FTTH and telecom networks.
-
Lightweight, durable housing with innovative rotation shaft and press-pull button lock for easy splicing.
-
Supports both fusion and mechanical splicing for 2 fiber cores.
-
FiberMania provides OEM/ODM customization and private-label solutions
Table of Contents
Description
The 2-port Fiber Optic Termination Box is a compact and reliable solution designed for indoor fiber optic termination in FTTH, telecom, and LAN networks. Measuring 80x100x25mm, it accommodates up to 2 fiber cores and supports both fusion splicing with tubes and mechanical splicing methods.
Constructed with high-quality industrial plastic, the box is lightweight and durable, featuring an attractive design that simplifies installation and operation. Its innovative rotation shaft design and convenient press-pull button lock make cable management and splicing easier while maintaining secure connections. Wall- or pole-mountable, this box is ideal for residential, commercial, and small-scale network deployments.
Specification
| Port / Core Capacity | 2 SC Simplex |
|---|---|
| Adapter Type | SC Simplex |
| Housing Material | Flame-resistant Plastic |
| Fiber Type | Single Mode / Multimode |
| Intended Use | Indoor |
| Dimensions (L×W×H mm) | 80×100×25 |
| Features | Compact, easy installation, protects fibers, OEM printing optional |
| Applications | Residential, FTTH, LAN, CATV, telecom |
| Customization | OEM / ODM options for port count, labeling |
| Standards | Flame-resistant, RoHS, compatible with SC / LC adapters |
| Compatibility | SC simplex / LC duplex, patch cords, pigtails |
| Installation / Maintenance | Wall / pole mount, maintain bend radius |
| Protection | Dust, mechanical stress, safe indoor use |
Features
-
Small size and lightweight for easy installation
-
Innovative rotation shaft design for convenient operation
-
Anti-collision, flame-retardant, and impact-resistant housing
-
Press-pull button lock reduces installation effort
-
Wall- and pole-mountable
-
Supports fusion and mechanical splicing for 2 fiber cores
Application
-
Indoor FTTH network wiring and fast field deployment
-
Telecom networks and residential buildings
-
Local area networks (LAN)
-
Fixing and splicing fiber pigtails
-
Wall-mounted indoor network terminations
FAQ
Q: How many fiber cores can this termination box accommodate?
A: Up to 2 fiber cores.
Q: Can it be mounted on a wall or pole?
A: Yes, it supports both wall and pole mounting.
Q: Does it support both fusion and mechanical splicing?
A: Yes, it is compatible with both splicing methods.
Q: Is the housing flame-retardant and impact-resistant?
A: Yes, it is designed with anti-collision and flame-retardant material.
Q: Can FiberMania provide OEM/ODM customization?
A: Yes, we offer custom labeling, port counts, and private-label solutions.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
