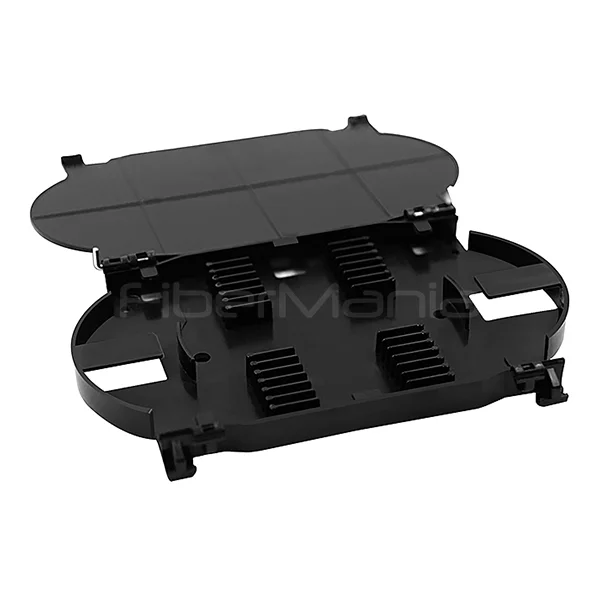

Fiber Optic Splice Tray 24 Cores, Black, 178x100x8mm, ABS Material
Categories:
Product Highlights:
-
24-core fiber optic splice tray for secure and organized fiber management
-
Compact ABS construction with cover plate and metal bolt fixation
-
Supports both pigtails and direct cable fusion, maintaining fiber bend radius
-
FiberMania provides OEM/ODM services for customized branding and packaging
Table of Contents
Description
The 24-core fiber optic splice tray provides a secure and organized space for managing fiber splices and excess cable. Designed to accommodate both fiber optic pigtails and incoming fiber cables, it ensures that each connection is safely protected while maintaining proper fiber bend radius.
The tray is ideal for use inside fiber termination boxes, patch panels, or distribution enclosures. Its flexible design allows fusion of different fiber optic cables directly within the tray, or connection via pigtails to other network equipment. With its compact dimensions of 178x100x8mm, this tray supports efficient fiber management in both residential and commercial installations.
FiberMania maintains ready stock of this splice tray series for immediate shipment, and OEM/ODM services are available to meet custom requirements, including branding and color options.
Specification
| Port / Core Capacity | 24 Cores |
|---|---|
| Adapter Type | N/A |
| Housing Material | ABS Plastic |
| Fiber Type | Single Mode / Multimode |
| Intended Use | Indoor |
| Dimensions (L×W×H mm) | 178×100×8 |
| Features | Fiber organization, ABS material |
| Applications | Fiber splicing and management |
| Customization | OEM color / labeling |
| Standards | RoHS |
| Compatibility | Compatible with standard fibers |
| Installation / Maintenance | Fits splice enclosures |
| Protection | Protect fibers, organize splices |
Features
-
Available in 12 and 24 fiber capacities
-
Includes cover plate for protection after fusion
-
Fixed by 4 metal bolts at tray corners
-
Flexible splice and storage system
-
Maintains fiber bend radius and prevents fiber damage
-
Compliant with IEC and RoHS standards
Applications
-
Fiber Optic Patch Panels
-
Fiber Termination Boxes
-
Fiber Distribution Boxes
-
FTTH and FTTX Networks
-
Data Center and Telecommunication Installations
Q&A
Q1: Can this tray support both single-mode and multimode fibers?
A1: Yes, it is designed to handle both single-mode (OS1/OS2) and multimode (OM1/OM2/OM3/OM4) fibers.
Q2: Is the tray suitable for outdoor enclosures?
A2: The tray itself is for indoor use; it should be installed inside a weatherproof enclosure for outdoor applications.
Q3: How many fibers can this tray store?
A3: This tray supports up to 24 fiber connections, with an option for 12-fiber configurations as well.
Q4: Can I order custom colors or OEM branding?
A4: Yes, FiberMania offers OEM/ODM services for branding, color, and packaging customization.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
