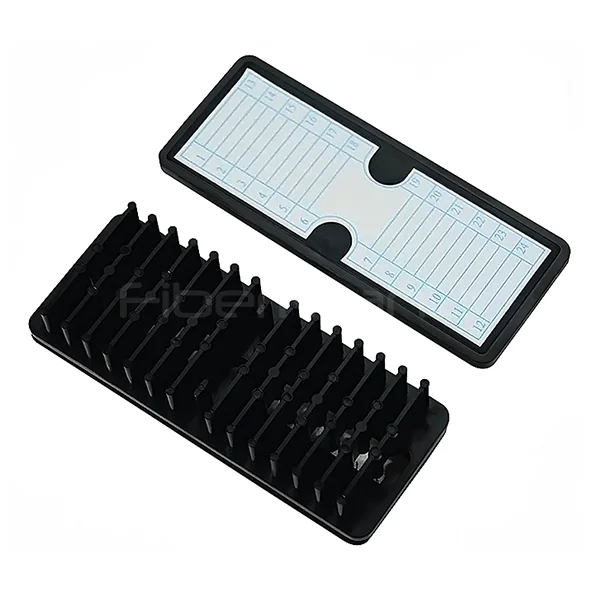

24 Fibers Fiber Optic Splice Tray With Adhesive Base and Lid

Name: 24 Fibers Fiber Optic Splice Tray With | FiberMania
SKU: FST05-24BK

P/N: FST05-24BK

Categories:

Splice Trays

Product Highlights:

Compact 24-fiber splice tray designed for secure protection and efficient fiber management
Durable ABS construction with adhesive base and protective lid for easy, reliable installation
Ideal for splice storage inside patch panels, termination boxes, and distribution units
Ensures proper bend radius and organized routing for long-term optical performance

Description

The 24 Fibers Fiber Optic Splice Tray is engineered to organize, protect, and secure fiber optic splices within patch panels, termination boxes, and ODF systems. Constructed from high-strength ABS plastic, the tray features an adhesive base for quick mounting and a protective lid to keep splices clean and stable. Its compact footprint makes it suitable for high-density fiber environments, ensuring efficient routing while maintaining proper bend radius.

Designed for fusion splicing applications, this tray accommodates fiber-to-fiber, fiber-to-pigtail, and fiber-to-drop-cable connections. It is widely used in FTTx deployments, data communication networks, CATV systems, and other fiber infrastructure installations. FiberMania offers OEM/ODM customization, supporting specific tray dimensions, colors, module types, and branding requirements.

Specification

Size	95 (L) × 40 (W) × 15 (D) mm
Color	Black
Material	ABS
Capacity	24 fibers
Connector Loss	≤ 0.5 dB
Service Life	1000 cycles
Working Temperature	-40°C ~ +55°C
Relative Humidity	≤ 85% at 30°C
Air Pressure	70 ~ 106 KPa
Mounting Method	Adhesive base
Included Accessories	Protective lid
Compatible Fiber Types	SM, MM, OS2, OM series

Features

Supports up to 24 fiber splices
Made of high-quality ABS plastic for durability and long service life
Includes adhesive base for secure installation
Equipped with a protective lid to keep fibers clean and organized
Maintains proper fiber bend radius and splice protection
Compatible with most fiber enclosures, ODF units, patch panels, and termination boxes
Compact design suitable for high-density fiber layouts
RoHS-compliant materials with stable low-loss performance (≤0.5dB)

Applications

Fiber optic patch panels
Fiber termination boxes
Wall-mount and rack-mount distribution boxes
FTTx / FTTH / FTTA networks
Data centers and telecom rooms
CATV and broadband systems

Frequently Asked Questions (FAQ)

Q1: Is this splice tray compatible with all fiber splice sleeves?
Yes. It supports standard 40mm and 60mm fusion splice sleeves.

Q2: Can this tray be mounted inside any type of enclosure?
It fits most ODF, patch panels, termination boxes, and wall-mount enclosures thanks to its compact universal design.

Q3: Does it support both single-mode and multimode fibers?
Yes. The tray is suitable for SM, MM, OS2, OM2/OM3/OM4 fibers.

Q4: Can I customize the tray with my own brand or color?
Absolutely. FiberMania provides OEM/ODM service for custom branding, color options, and structure modification.

Q5: Does the tray help protect the minimum bend radius of fibers?
Yes. Internal routing paths are designed to keep fibers within safe bend radius limits.
