Fiber Optic Outdoor Wall Mount Box Holds 8 SC 6 Ported Adapter Panels With Single Door

Name: Fiber Optic Outdoor Wall Mount Box Holds | FiberMania
SKU: FOWB-S8SC-48

P/N: FOWB-S8SC-48

Categories:

Wall-Mount Enclosure

Product Highlights:

Outdoor-rated fiber wall mount box designed for secure distribution and termination
Supports 8 SC adapter panels (6 ports each) for a total capacity of 48 SC simplex ports
Single-door design with durable cold-rolled steel construction and anti-corrosion coating
Ideal for FTTx, broadband, telecom, and residential fiber termination points

Description

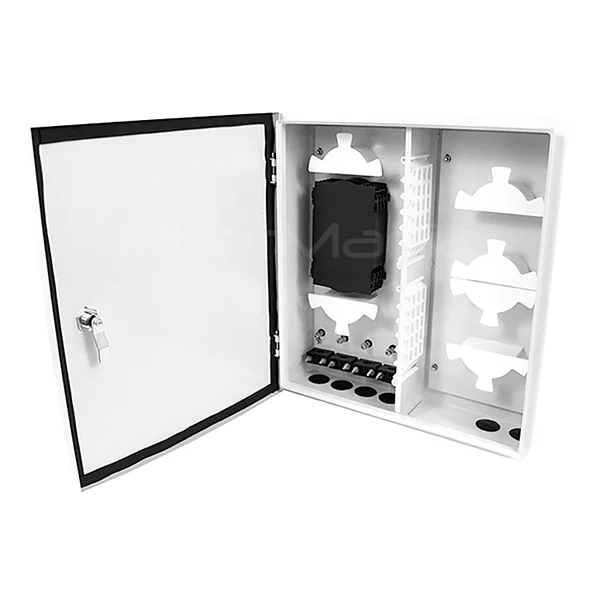

The Fiber Optic Outdoor Wall Mount Box is engineered for fiber termination, splicing, and distribution in outdoor environments such as residential buildings, villas, small communication rooms, and FTTx access points. With the ability to hold 8 SC 6-ported adapter panels, this unit provides a maximum capacity of 48 SC simplex connections.

Constructed from high-quality cold-rolled steel with electrostatic powder coating, the enclosure delivers excellent durability, corrosion resistance, and long-term outdoor weather protection. The internal design includes separated functional zones for cable entry, fusion splicing, pigtail management, and patch cord distribution—ensuring clean routing and proper bend radius control (≥40mm).

FiberMania also provides optional pigtails (0.9mm / 2.0mm / 3.0mm), adapters, and splice trays to support complete installation requirements.

Specification

Dimension (L×W×H)	455 × 405 × 120 mm
Adapter Type	SC simplex
Panel Capacity	8 panels × 6 ports each
Total Ports	48 SC ports
Material	Cold-rolled steel
Coating	Electrostatic powder coating
Mounting Type	Outdoor wall mount
Fiber Management	Fusion & organization zone included
Bend Radius Control	≥ 40 mm
Cable Entry	Multi-entry design
Protection	Dust-proof & water-resistant
Certifications	ISO9001:2008, RoHS
Optional Accessories	Pigtails, adapters, splice trays

Features

Holds 8 SC adapter panels (6 ports each), total 48 SC simplex ports
Single-door outdoor enclosure for easy maintenance
Fabricated from cold-rolled steel with electrostatic anti-corrosion coating
Supports FC / SC / ST / LC adapters depending on configuration
Internal layout includes fiber splice area and patch cord storage area
Integrated cable fixing, stripping, grounding, and strain relief components
Ensures minimum fiber bend radius of ≥40mm
Water-resistant and dust-proof outdoor structure
Stable and reliable sealing for long-term outdoor use
Simple installation and easy re-entry for maintenance

Applications

FTTx / FTTH outdoor fiber termination
Residential building fiber entry points
Small-scale telecom and broadband distribution
Outdoor wall-mounted fiber patching and splicing
Fiber network extensions and branch points
Security monitoring & CCTV network fiber nodes

Frequently Asked Questions (FAQ)

Q1: What is the total fiber capacity of this wall mount box?
It supports 48 SC simplex fibers, using 8 adapter panels with 6 ports each.

Q2: Can it be used in outdoor environments?
Yes, the enclosure is made from coated cold-rolled steel with dust-proof and water-resistant design suitable for outdoor mounting.

Q3: Does it include splice trays?
It can be supplied with FiberMania splice trays upon request (OEM/ODM optional).

Q4: What fiber types are supported?
It is compatible with single-mode and multimode fibers, including OS2, OM2, OM3, and OM4.

Q5: Can pigtails and adapters be pre-installed?
Yes. We offer pre-installed SC, FC, LC, or ST adapters and matching pigtails based on customer requirements.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
