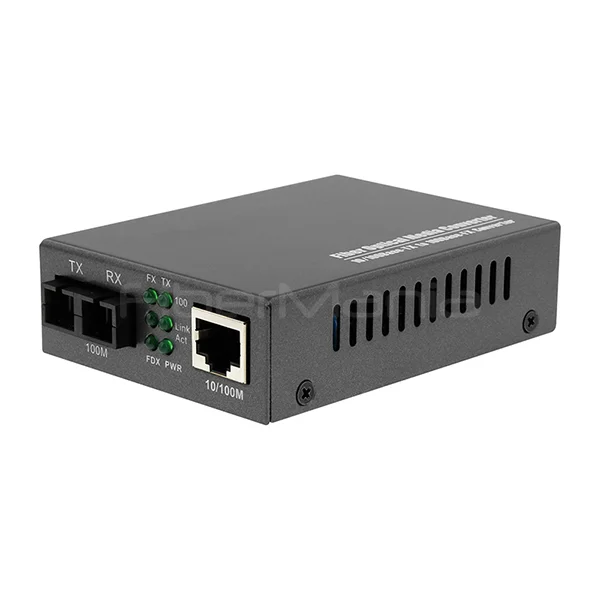

Fiber Media Converter, 850nm Dual Fiber MM 550M, SC Interface, External Power Supply
Categories:
Product Highlights:
-
10/100/1000M Multimode Fiber Media Converter with SC interface supports dual fiber connections up to 550M.
-
Fully compliant with IEEE 802.3/802.3u/802.3ab/802.3z standards, auto-negotiation and flow control support.
-
Compact, plug-and-play design with external power supply and LED indicators for easy monitoring.
Table of Contents
Description
The FiberMania 10/100/1000M Multimode Fiber Media Converter allows seamless conversion between copper Ethernet and multimode fiber networks over distances up to 550 meters. Featuring a dual-fiber SC interface, it ensures reliable high-speed transmission for data, voice, and multimedia applications.
This media converter fully complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards. It supports both half and full duplex modes, auto-negotiation, flow control, and broadcast storm filtering. The compact design and LED indicators make installation and network monitoring simple and efficient.
Ideal for campus networks, FTTx solutions, enterprise LANs, and short-range fiber interconnections, it provides a cost-effective, plug-and-play solution for extending Ethernet networks over multimode fiber.
Specification
| Data Rate | 10/100/1000 Mbps |
|---|---|
| Wavelength | 850nm |
| Fiber Type | Multimode dual fiber |
| Fiber Connector | SC (LC/ST/FC optional) |
| Interface Ports | 1 × SC fiber, 1 × RJ45 |
| Standards | IEEE 802.3 / 802.3u / 802.3ab / 802.3z |
| Transmission Mode | Half / Full Duplex |
| Transmission Distance | 550M |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -45°C ~ 80°C |
| Power Supply | External power adapter |
| Power Consumption | ≤5W |
| Color | Black (Silver, White optional) |
| Dimensions | 107(L) × 70(W) × 26(H) mm |
| Certifications | ISO9001, TUV, CE, FCC, CAS, UL, RoHS |
Features
-
10/100/1000M auto-negotiation
-
IEEE 802.3 / 802.3u / 802.3ab / 802.3z compliant
-
SC multimode fiber interface (LC/ST/FC optional)
-
RJ45 copper interface
-
Half and full duplex transmission modes
-
Flow control and broadcast storm filtering
-
External power supply, ≤5W power consumption
-
Compact design with LED indicators for Power, Link, TX/RX
-
Plug-and-play installation
Applications
-
Extend Ethernet networks up to 550M over multimode fiber
-
Multimedia, voice, and data transport networks
-
Enterprise LAN, campus broadband networks
-
Short-range FTTx deployments (fiber-to-the-floor or fiber-to-the-home)
-
Integrated computer and industrial networks
-
Star, chain, or ring topology networks
Frequently Asked Questions (FAQ)
Q1: Can this converter work with third-party multimode SC fiber modules?
Yes, it is compatible with standard SC multimode fiber modules from Cisco, Huawei, Mikrotik, and FiberMania.
Q2: What is the maximum transmission distance?
Supports up to 550 meters on 850nm multimode fiber.
Q3: Does the RJ45 port support auto MDI/MDIX?
Yes, the RJ45 copper port supports auto MDI/MDIX and auto-negotiation.
Q4: Is configuration required before use?
No, the device is plug-and-play and ready for immediate installation.
Q5: Can this media converter be rack-mounted or chassis-installed?
Yes, it can be installed in a standard media converter chassis for multiple units.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
