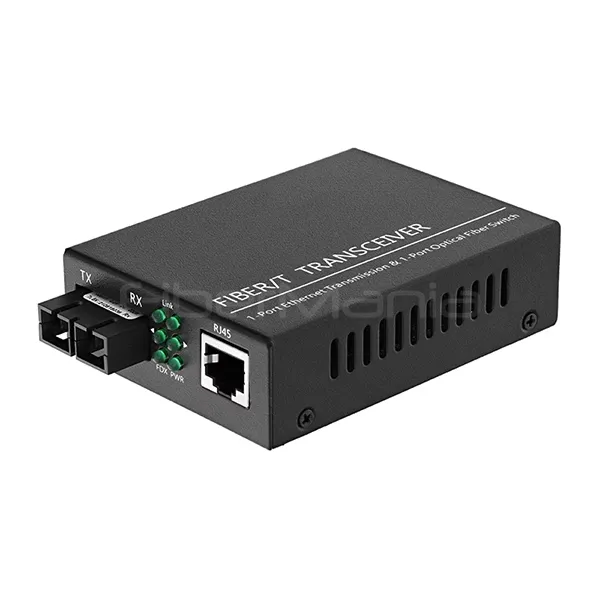

Fiber Media Converter, 10/100/1000M 1550nm Dual Fiber Single Mode 40KM, SC Interface, External Power Supply
Categories:
Product Highlights:
-
Fiber media converter for 10/100/1000M Ethernet over single mode fiber, 1550nm, dual-fiber SC interface
-
Supports distances up to 40 kilometers for long-range network connectivity
-
External power supply ensures stable and reliable operation
-
FiberMania offers OEM/ODM services with custom configurations, branding, and scalable production support
Table of Contents
Description
This fiber media converter is designed to extend Gigabit Ethernet networks over long-distance single mode fiber. Operating at 1550nm with dual-fiber SC interfaces, it supports transmission distances up to 40 kilometers, making it ideal for enterprise backbones, data centers, telecom infrastructure, and industrial networks. The converter seamlessly bridges copper Ethernet and fiber optic connections, enabling high-speed, low-latency communication across extended network spans.
Equipped with an external power supply, the device ensures stable operation and reliable performance. Its SC fiber interfaces provide secure, low-loss connections, while auto-negotiation supports 10/100/1000M Ethernet, allowing compatibility with a wide range of devices. The compact and robust design allows easy installation in telecom closets, server rooms, and network distribution points, supporting both full- and half-duplex transmission modes.
Manufactured under strict quality standards, this media converter guarantees long-term reliability, minimal signal loss, and consistent high-performance network operation over extended distances.
Specification
| Data Rate | 10/100/1000 Mbps Auto-Negotiation |
|---|---|
| Wavelength | 1550 nm |
| Fiber Type | Single Mode (Dual Fiber) |
| Transmission Distance | Up to 20 km |
| Fiber Connector Type | SC (LC, ST, FC optional) |
| Interface Type | RJ45 Port |
| Transmission Mode | Half duplex / Full duplex |
| Power Supply | External power supply |
| Dimension | 107 × 70 × 26 mm |
| Color | Black (Silver, White, others optional) |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -45 ~ 80°C |
| Features | Flow control, broadcast storm filtering, easy-to-view LED indicators |
Features
-
Supports 10/100/1000M Gigabit Ethernet over single mode fiber
-
Operates at 1550nm with dual-fiber SC interfaces
-
Transmission distance up to 40 kilometers
-
External power supply for stable and reliable operation
-
Auto-negotiation for 10/100/1000M Ethernet ports
-
Full- and half-duplex transmission support
-
Compact, durable design for server rooms, telecom closets, and industrial setups
-
Low insertion loss and high signal integrity for long-distance networks
Applications
-
Enterprise backbone network extension
-
Data center and telecom network integration
-
Industrial network deployment over single mode fiber
-
Long-distance Ethernet transmission for campus and metropolitan networks
-
FTTH/FTTx backbone and distribution links
-
Fiber-to-copper network conversion for structured cabling systems
FAQ
Q1: What is the maximum transmission distance?
A: The converter supports up to 40 kilometers over single mode fiber at 1550nm.
Q2: Which fiber connector type does it use?
A: It uses SC connectors for secure, low-loss fiber connections.
Q3: Can it work with 10/100/1000M Ethernet devices?
A: Yes, it supports auto-negotiation for all three speeds.
Q4: Is an external power supply required?
A: Yes, the converter comes with an external power supply for stable operation.
Q5: Can it be used in industrial environments?
A: Yes, it is suitable for enterprise, telecom, and industrial networks requiring long-distance fiber transmission.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
