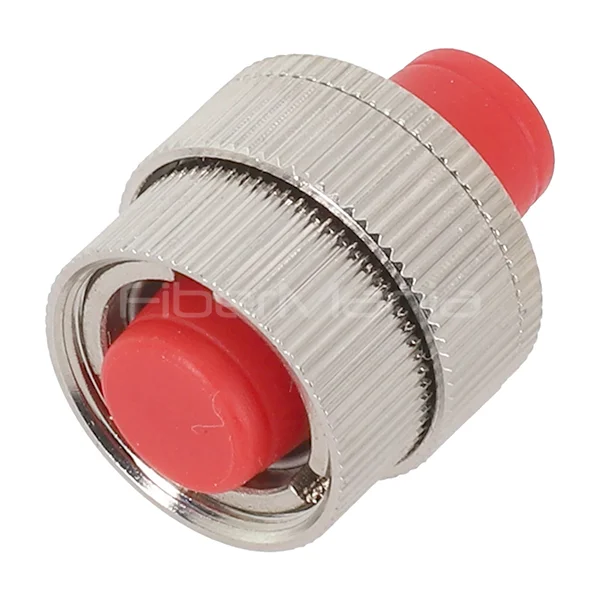

FC Variable Attenuator, Single Mode 1~30dB
Categories:
Product Highlights:
-
Single mode FC variable attenuator with adjustable 1–30dB range
-
Male-to-female connector for easy installation in fiber networks
-
Durable nickel-plated brass housing for high reliability and stability
-
Suitable for LAN, CATV, FTTx, and testing instruments
-
FiberMania offers OEM/ODM customization, including custom attenuation levels, branding, and packaging
Table of Contents
Description
The FC Single Mode Variable Attenuator is a precision component designed to manage optical signal power within fiber optic transmission systems. It allows attenuation adjustments from 1dB to 30dB, making it ideal for controlling the optical power received by photodetectors, preventing receiver overload and ensuring signal integrity.
Constructed with a nickel-plated brass housing, this variable attenuator offers high durability and stability, capable of withstanding high-power light sources. It is compatible with standard FC connectors, featuring a male-to-female interface that simplifies installation into existing fiber networks. This attenuator is widely used in telecommunications, FTTx deployments, LAN, and CATV networks, as well as in testing instruments where precise optical power control is required. FiberMania offers customization options to meet specific OEM/ODM project requirements.
Specification
| Attenuator Type | Variable (adjustable) |
|---|---|
| Connector Type | FC (female/male or female/female config typical) |
| Fiber Mode | Single Mode |
| Attenuation Range | 1 dB to 30 dB adjustable |
| Operating Wavelength | Approx. 1260 nm – 1620 nm |
| Return Loss | Typically ≥ 55 dB (UPC) |
| Attenuation Accuracy | Typical ~±0.5 dB (varies by attenuation step) |
| Maximum Optical Input Power | ~200 mW (common for VOA) |
| Polarization Dependent Loss | ≤ 0.2 dB |
| Insertion Loss | Typically low (< 2.5 dB typical without attenuation) |
| Operating Temperature Range | ~–40 °C to +75 °C |
| Storage Temperature Range | ~–40 °C to +85 °C |
| Housing Material | Metal (nickel plated brass typical) |
| Durability (Mating Cycles) | ~≥ 1000 cycles |
Features
-
Variable attenuation range: 1dB to 30dB
-
Single mode FC connector, male-to-female interface
-
Nickel-plated brass housing for durability
-
High reliability and stability under high-power light
-
Easy to install and operate
-
Meets Telcordia standards: GR-326-CORE, GR-910-CORE, GR-1221-CORE
-
1,000 mating cycles durability
-
OEM/ODM customization available
Applications
-
LAN and CATV networks
-
Telecommunication networks
-
FTTx projects
-
Optical testing instruments and laboratory applications
Additional
- Attenuation Value: 1dB~30dB Max.
- Operating Wavelength: 1310/1550 nm
- Durability: 1,000 times mating cycles
- Operating Temperature Range: -40 to +75 Celsius
- Storage Temperature Range: -40 to +85 Celsius
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
