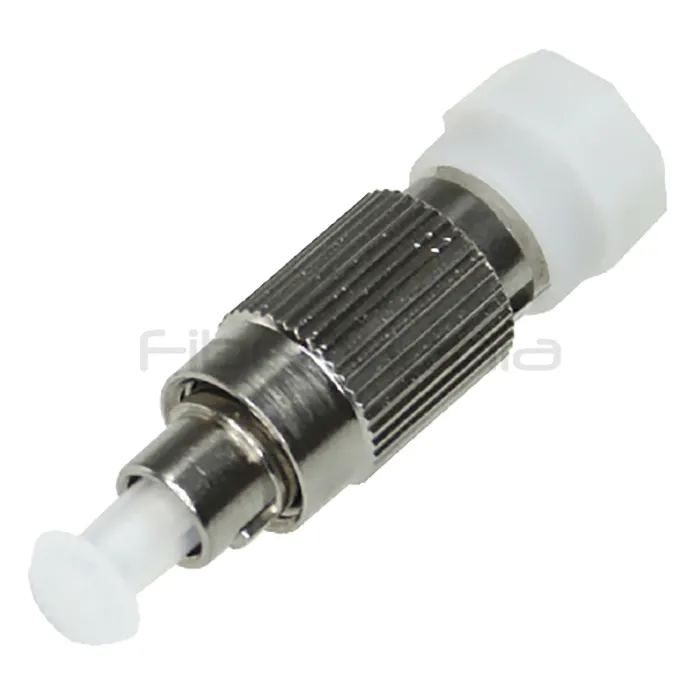

FC Plug-in Fixed Attenuator, Single Mode 5dB
Categories:
Product Highlights:
-
High-precision FC plug-in attenuator providing stable 5dB optical power reduction for single-mode fiber networks.
-
Designed for telecom, broadcasting, and testing environments requiring reliable and repeatable attenuation.
-
Supports a wide wavelength range with excellent return loss performance.
-
FiberMania offers complete OEM/ODM services including custom attenuation levels, connector types, and private-label production to support your brand and projects.
Table of Contents
Description
The FC plug-in fixed attenuator is designed to provide stable and precise optical power reduction in single-mode fiber networks. This 5dB model uses an FC/UPC interface, making it ideal for applications that require high repeatability and low signal distortion. Built with high-quality attenuating materials, it ensures accurate attenuation values while maintaining excellent return loss performance.
Its compact and robust housing structure makes it suitable for both laboratory environments and field installations. The design supports a wide wavelength range, ensuring compatibility with commonly used transmission windows in telecommunications. With a simple plug-in configuration, it integrates easily into systems that require quick and reliable optical power adjustment.
Specification
| Attenuator Type | Fixed (Plug-in) |
|---|---|
| Connector Type | FC male to FC female |
| Fiber Mode | Single Mode |
| Attenuation Value | 5 dB fixed |
| Operating Wavelength | 1240 nm – 1620 nm (Dual 1310/1550 nm) |
| Return Loss | UPC > 55 dB |
| Attenuation Accuracy | ± 0.5 dB |
| Maximum Optical Input Power | 1000 mW |
| Polarization Dependent Loss | ≤ 0.1 dB |
| Operating Temperature | –40 °C to +75 °C |
| Storage Temperature | –40 °C to +85 °C |
| Housing | Compact rugged housing |
| Compliance | Telcordia requirements, RoHS compliant |
Features
-
Fixed 5dB attenuation using FC connector
-
Stable optical power reduction across a wide wavelength range
-
Low back reflection and low insertion-related changes
-
Polarization-insensitive performance
-
Rugged and compact housing
-
Available with various connector options for customized versions
-
Hybrid attenuator structure using attenuating fiber
-
Meets Telcordia GR-910 requirements
Application
-
Optical power level management and equalization
-
CATV, LAN, and telecommunications networks
-
Test and measurement equipment
-
WDM channel balancing
-
Receiver protection and padding
-
Long-distance optical transmission systems
Q&A
Q: Can this attenuator be customized with different attenuation levels?
A: Yes, FiberMania provides attenuation options from 1dB to 30dB for OEM/ODM production.
Q: Is the 5dB version suitable for DWDM and CWDM systems?
A: Yes, its wide wavelength compatibility supports both DWDM and CWDM system requirements.
Q: How accurate is the attenuation value?
A: The attenuation accuracy is controlled within ±0.5dB to ensure stable system performance.
Q: Can FiberMania supply large quantities for telecom projects?
A: Absolutely, we specialize in high-volume OEM manufacturing supported by stable production capacity.
Q: Does the attenuator work with APC connectors?
A: This model is FC/UPC, but APC versions can be customized upon request.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
