CAT.6A STP bulk cable with 4 color-coded pairs of 23AWG solid copper conductors
-
Supports 10Gb Ethernet and high-speed network applications
-
Durable PVC jacket for reliable indoor installation and organized cabling
-
FiberMania offers OEM/ODM customization for length, color, and branding to meet project requirements

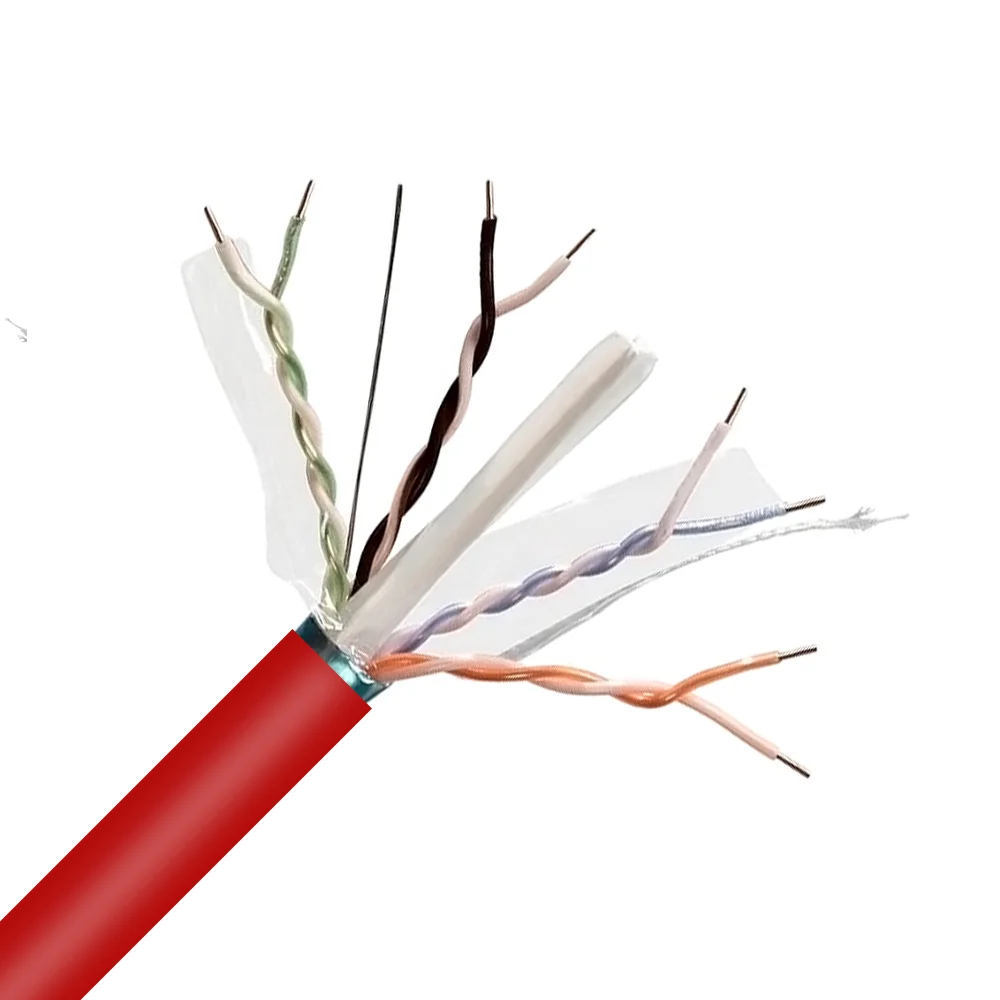

CAT.6A STP Bulk Cable, Bare Solid Copper, 23AWG, 4 Pairs, PVC Jacket, Red, 305M Per Reel
P/N: 6ASS23RDP
Categories:
Product Highlights:
Table of Contents
Description
This CAT.6A STP bulk cable is engineered for high-performance data communications, providing reliable transmission for 10Gb Ethernet and other high-speed networking applications. Featuring 23AWG solid bare copper conductors, the cable ensures minimal signal loss and excellent electrical performance. The shielded twisted pair (STP) design reduces electromagnetic interference (EMI) and crosstalk, making it ideal for environments with high-density cabling.
The 4-pair cable includes color-coded insulation for easy identification during installation, helping network engineers maintain organized and efficient cabling systems. The durable PVC jacket protects the conductors from physical damage and environmental factors, extending the lifespan of the cable. FiberMania offers OEM/ODM customization for cable length, jacket color, and branding to meet specific project or client requirements.
This cable is widely applicable in enterprise networks, data centers, and high-speed backbone installations, providing both performance and durability for professional networking solutions.
Specification
| Product Category | CAT.6A |
|---|---|
| Cable Type | STP |
| Application Type | 10G High-Speed Ethernet |
| Number of Pairs | 4 Pairs |
| Conductor Gauge | 23 AWG |
| Conductor Material | Solid Bare Copper |
| Pair Shielding | Aluminum Foil |
| Overall Shielding | Aluminum Foil |
| Shield Type | F/UTP (STP) |
| Insulation Material | HDPE |
| Jacket Material | PVC |
| Jacket Color | Red |
| Outer Diameter (Typical) | Approx. 7.2–7.8 mm |
| Cable Length | 305 m |
| Packaging | Reel |
| Installation Environment | Indoor |
| Bandwidth | 500 MHz |
| Maximum Data Rate | Up to 10Gbps (100m) |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801 |
| Fire Rating | PVC (CM) |
| Certifications | UL Listed, RoHS Compliant |
| Typical Applications | Data Centers, Enterprise LAN, 10G Ethernet |
| OEM / ODM Support | Yes |
Features
-
23AWG solid bare copper conductors
-
Category-6A STP design for high-speed data transmission
-
4 color-coded twisted pairs for easy identification
-
PVC jacket for protection against physical and environmental damage
-
Supports 10Gb Ethernet applications
-
UL Listed and RoHS compliant
-
Exceeds ANSI/TIA/EIA 568 C.2 standards
Applications
-
Enterprise and corporate networks
-
Data centers and server rooms
-
High-speed backbone installations
-
Horizontal cabling in LAN/WAN environments
-
Network infrastructure in high-density areas
FAQ
Q1: Can this cable support 10Gb Ethernet over 100 meters?
A1: Yes, CAT.6A STP cables are designed to support 10Gb Ethernet up to 100 meters under standard conditions.
Q2: What is the advantage of STP over UTP?
A2: Shielded Twisted Pair (STP) reduces EMI and crosstalk, providing more reliable signal transmission in electrically noisy environments.
Q3: Can FiberMania provide custom colors or lengths?
A3: Yes, OEM/ODM services are available for custom cable lengths, jacket colors, and branding.
Q4: Is this cable suitable for outdoor use?
A4: The PVC jacket provides protection indoors; for outdoor applications, additional UV- or water-resistant jackets are recommended.
Q5: How should the cable be handled during installation?
A5: Avoid sharp bends, pulling beyond the rated tension, and exposure to excessive heat to maintain optimal performance.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
