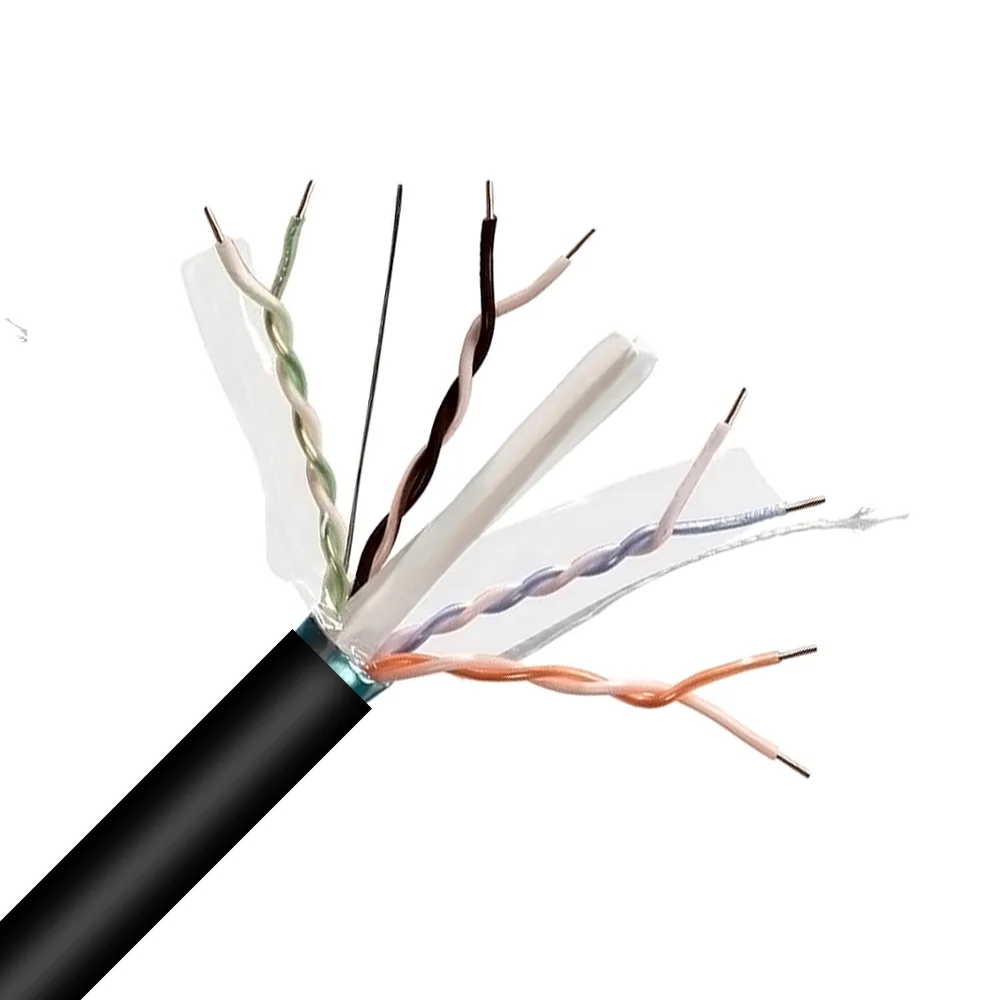

CAT.6A STP Bulk Cable, Bare Solid Copper, 23AWG, 4 Pairs, PVC Jacket, Black, 305M Per Reel
Categories:
Product Highlights:
-
High-performance CAT.6A STP bulk cable with 23AWG solid copper conductors
-
4 color-coded twisted pairs, black PVC jacket, suitable for 10GbE applications
-
Exceeds ANSI/TIA/EIA 568-C.2, UL listed, RoHS compliant
-
FiberMania offers OEM/ODM services including custom jacket colors, pre-terminated reels, and private labeling
Table of Contents
Description
The CAT.6A STP Bulk Cable is engineered for high-speed, high-performance data communications, making it ideal for modern network infrastructures that demand 10Gb Ethernet and beyond. Constructed with 23AWG solid bare copper conductors and four color-coded pairs, this cable ensures reliable signal integrity while minimizing crosstalk and EMI, thanks to its shielded twisted pair design.
Designed with a durable PVC jacket in black, the cable is suitable for both indoor and controlled-environment outdoor installations. Its precise manufacturing meets or exceeds ANSI/TIA/EIA 568-C.2 standards, guaranteeing superior performance for mission-critical applications. FiberMania provides customization options to meet specific project requirements, including jacket color, labeling, and reel length.
This cable is perfect for high-density network setups, data centers, enterprise LANs, and other demanding environments where speed and reliability are paramount. Our OEM/ODM capabilities allow clients to receive pre-labeled or custom-branded reels tailored to their unique needs.
Specification
| Product Category | CAT.6A |
|---|---|
| Cable Type | STP |
| Application Type | 10G High-Speed Ethernet |
| Number of Pairs | 4 Pairs |
| Conductor Gauge | 23 AWG |
| Conductor Material | Solid Bare Copper |
| Pair Shielding | Aluminum Foil |
| Overall Shielding | Aluminum Foil |
| Shield Type | F/UTP (STP) |
| Insulation Material | HDPE |
| Jacket Material | PVC |
| Jacket Color | Black |
| Outer Diameter (Typical) | Approx. 7.2–7.8 mm |
| Cable Length | 305 m |
| Packaging | Reel |
| Installation Environment | Indoor |
| Bandwidth | 500 MHz |
| Maximum Data Rate | Up to 10Gbps (100m) |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801 |
| Fire Rating | PVC (CM) |
| Certifications | UL Listed, RoHS Compliant |
| Typical Applications | Data Centers, Enterprise LAN, 10G Ethernet |
| OEM / ODM Support | Yes |
Features
-
Category 6A Shielded Twisted Pair (STP) Cable
-
23AWG Solid Bare Copper Conductors
-
4 Color-Striped Pairs for Easy Identification
-
High-Performance, Low Crosstalk and EMI Protection
-
Durable Black PVC Jacket
-
Exceeds ANSI/TIA/EIA 568-C.2 Standards
-
UL Listed and RoHS Compliant
Applications
-
High-speed Ethernet Networks (10GbE)
-
Enterprise LAN & WAN
-
Data Centers and Server Rooms
-
Network Backbone Installations
-
Telecommunication Cabling
FAQ
Q1: Can this cable support 10GbE over 100 meters?
A1: Yes, CAT.6A STP cable is designed for 10Gb Ethernet up to 100 meters under ANSI/TIA/EIA standards.
Q2: Can FiberMania provide custom jacket colors?
A2: Yes, we offer custom jacket colors, markings, and labeling as part of our OEM/ODM service.
Q3: Is this cable suitable for outdoor installation?
A3: It is designed for indoor or controlled-environment installations; outdoor-specific jackets (PE or LSZH) are available upon request.
Q4: Can you supply pre-terminated cables on this reel?
A4: Yes, we can deliver custom pre-terminated or cut-to-length reels per project requirements.
Q5: How does STP shielding benefit performance?
A5: Shielded twisted pairs reduce crosstalk and electromagnetic interference, ensuring high-speed transmission integrity in dense network environments.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
