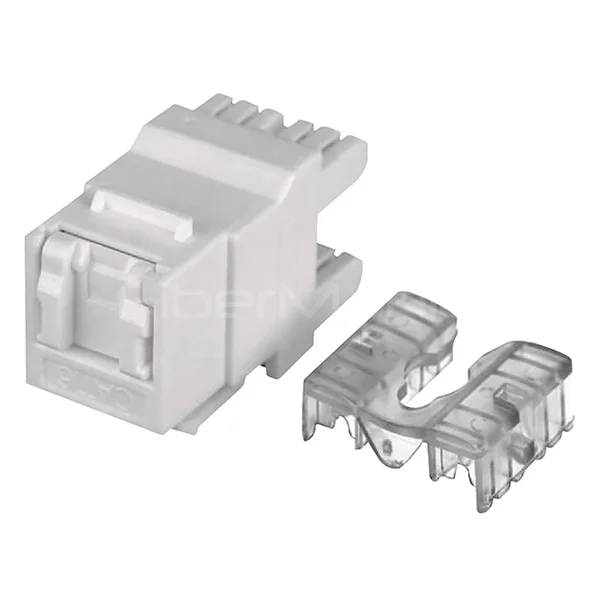

CAT.6 UTP Keystone Jack With Dust Cover, 180 Degree, Short Body, White

Name: CAT.6 UTP Keystone Jack With Dust Cover | FiberMania
SKU: KJ-C6U8SDWH

P/N: KJ-C6U8SDWH

Categories:

CAT.6 Keystone Jacks

Product Highlights:

CAT.6 UTP keystone jack with 180-degree orientation and short body for compact installations.
Equipped with a dust cover to protect against dust and contamination.
High-quality phosphor bronze contacts and flame-retardant housing ensure durability and stable performance.
FiberMania offers OEM/ODM customization for branding and project-specific requirements.

Description

The CAT.6 UTP Keystone Jack is designed for high-performance networking applications, providing reliable connectivity for Ethernet cabling. Its 180-degree orientation and short body design make it suitable for compact installations, while the included dust cover protects the jack from contamination and ensures long-term performance.

Constructed with high-quality materials including phosphor bronze contacts and flame-retardant housing, this keystone jack ensures durability, stable electrical performance, and resistance to wear. It supports standard 24-26 AWG wires and complies with Cat.5e permanent link testing requirements, guaranteeing consistent signal integrity.

FiberMania offers customization options for OEM and ODM services, allowing the jack to be tailored for branding, packaging, or specific project requirements.

Specification

Type	Short Body Keystone Jack with Dust Cover
Connector	RJ45, 8P8C
Orientation	180°
Color	White
Material	ABS
Shielding	UTP
Features	Dust cover for protection; short body
Applications	Dust-sensitive networks; patch panels
Standards Compliance	TIA/EIA CAT.6; RoHS
Installation	Snap-in / short body
Customization	OEM/ODM

Features

CAT.6 UTP standard, backward compatible with Cat.5e
180-degree orientation for flexible installation
Short body design suitable for compact panels
Dust cover included for contamination protection
High-quality phosphor bronze contacts and flame-retardant housing
Supports 24-26 AWG wires
Reliable electrical performance and retention
Meets Cat.5e permanent link testing with ≥3dB worst pair next margin

Application

Data centers and server rooms
Office network installations
Structured cabling systems
Patch panels and wall outlets
Home networking projects

Mechanical

Housing material: PC
Insert material: flame retardant PBT
PCB material: FR-4, T=1.6mm
Contact material: phosphor bronze stamp pin, T=0.30mm
IDC contact material: phosphor bronze, T=0.50mm with tin plating
RJ45 jack: IFE: 750 times min
IDC lifespan: 200 times min
Wire: 24-26AWG
Tia Cat.5e perm link test: worst pair next margin: ≥3dB
Retentiveness of insertion structure: 50N 60±5s
