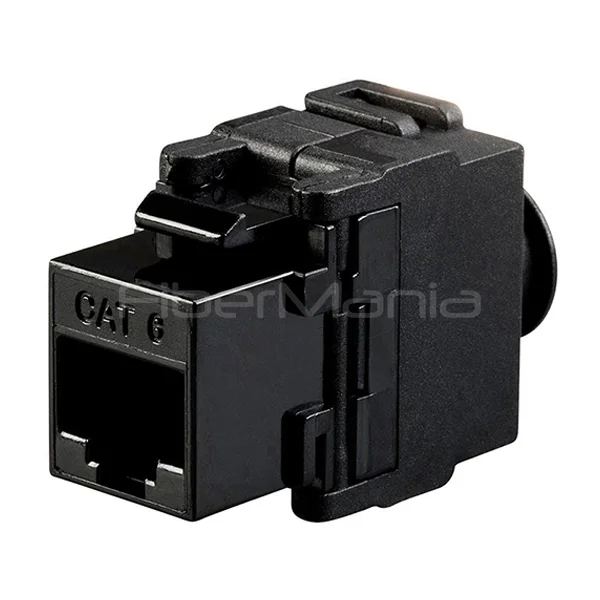

CAT.6 UTP Keystone Jack, 180 Degree, Black

Name: CAT.6 UTP Keystone Jack 180 Degree Black | FiberMania
SKU: KJ-C6UHBK

P/N: KJ-C6UHBK

Categories:

CAT.6 Keystone Jacks

Product Highlights:

CAT.6 UTP Keystone Jack, 180 Degree, black for reliable high-speed Ethernet connections
180-degree punch-down design with durable PC housing and flame-retardant PBT insert
Universal T568A/T568B wiring, compatible with patch panels and wall plates
FiberMania offers OEM/ODM customization including color, labeling, and packaging

Description

The CAT.6 UTP Keystone Jack, 180 Degree in black, is designed to provide reliable Ethernet connectivity for high-performance networks. Engineered for 24–26AWG solid copper cables, this keystone jack ensures consistent data transmission with low contact resistance and superior insulation. Its 180-degree punch-down design allows for neat cable management in patch panels or wall plates.

Constructed from high-quality PC housing and flame-retardant PBT inserts, the jack provides durability and long service life. The universal wiring pattern is compatible with T568A/T568B standards, making it suitable for a wide range of networking applications.

Specification

Type	Keystone Jack
Connector	RJ45, 8P8C
Orientation	180°
Color	Black
Material	ABS
Shielding	UTP
Features	180° wiring; standard
Applications	Patch panels; office LAN
Standards Compliance	TIA/EIA CAT.6; RoHS
Installation	Punch-down / snap-in
Customization	OEM/ODM

Features

180-degree punch down connection for easy wiring
Supports 24–26AWG solid copper wires
High-quality PC housing and flame-retardant PBT insert
Meets CAT.6 performance standards
Universal T568A/T568B wiring compatibility
RJ45 jack insertion/extraction: minimum 750 cycles
IDC termination lifespan: minimum 200 cycles
UL Listed

Applications

Data centers
Enterprise networks
LAN and WAN installations
Office cabling systems
Patch panels and keystone wall plates

Mechanical

Housing material: PC
Insert material: flame retardant PBT
PCB material: FR-4, T=1.6mm
Contact material: phosphor bronze stamp pin, T=0.30mm
IDC contact material: phosphor bronze, T=0.50mm with tin plating
RJ45 jack: IFE: 750 times min
IDC lifespan: 200 times min
Wire: 24-26AWG
Tia Cat.5e perm link test: worst pair next margin: ≥3dB
Retentiveness of insertion structure: 50N 60±5s

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
